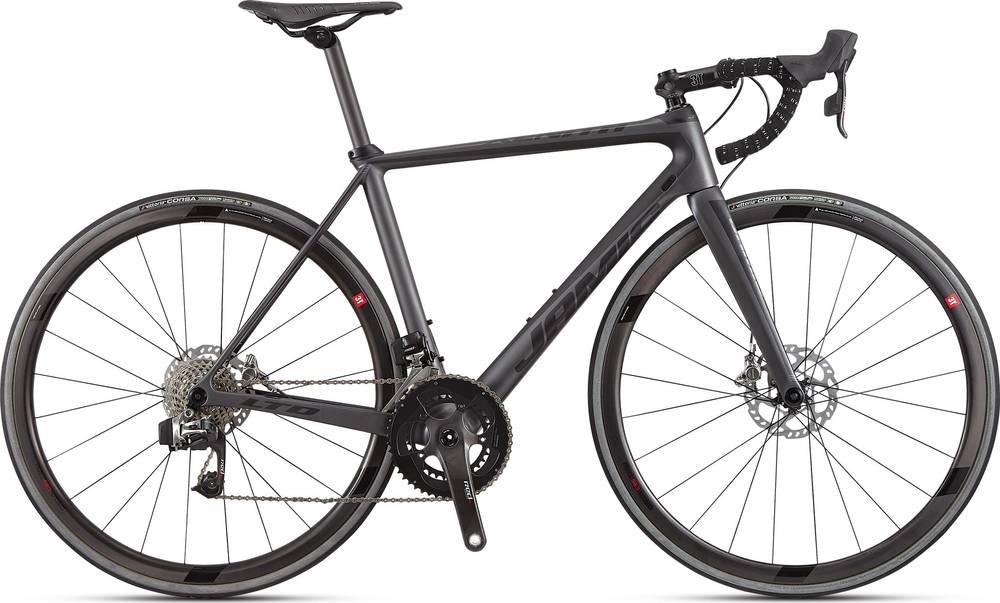

Jamis XENITH LTD 2018
2018 Road
Estimate price |
6,999$
Weight | 7.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Jamis Road carbon fiber monocoque Dyad Elite M30/T700, FEA optimized Near Net SPV molding process, SST tubing diameters, oversized seat tube, 1.5 - 1 1/8” head tube with carbon bearing races, EVO386 carbon BB shell, ACE internal cable routing compatible for both Di2 wires or traditional cables, rider tuned twin seat stays, oversized asymmetrical chainstays with flat mount disc brake mounts, 12x142 thru-axle with Jamis MTS (Modular Thru-axle System), carbon drop outs with replaceable alloy FD mount and RD hanger
Suspension Fork
Jamis Road Disc carbon fiber, FEA optimized Near Net SPV molding process, 1.5” hollow formed crown, monocoque one-piece forming technology, flat mount disc brakes with internal cable, 12mm Jamis MTS (Modular Thru-axle System) with carbon dropouts
Drivetrain
Rear Derailleur
SRAM RED eTap
Front Derailleur
braze-on
Shift Levers
SRAM RED eTap HRD hydraulic, 22-speed
Cassette
SRAM XG-1190 11-speed, 11-28T
Crank
SRAM RED, 52/36T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61)
Bottom Bracket
Enduro Ceramic PressFit 30
Chain
SRAM RED 22 Chain
Pedals
N/A
Wheels
Rims
3T DISCUS C35 TEAM Carbon Tubeless Disc Wheelset. 11-speed, 24H, 32mm rim height with 25mm width, 3T Centerlock hubs with alloy body, spindle and freewheel and adjustable bearings and stainless steel straight-pull bladed spokes, front 12mm/rear 12x142 Shimano thru axle
Tires
Vittoria Corsa with 4c Compound and G+Isotech 320TPI, 700 x 25c
Brakes
Brakes
SRAM RED HRD flat mount hydraulic disc brakes, SRAM 160mm rotors with SRAM RED eTap levers
Cockpit
Stem
3T ARX II Team Stealth, 3D forged 7075 T6 alloy, 6? x 90mm (48/51), 100mm (54/56), 120mm (58/61)
Handlebar
3T Ergosum Team, Carbon, 31.8 x 400mm (48/51), 420mm (54/56), 440mm (58/61)
Headset
Enduro CNC integrated, Stainless Steel sealed bearing with 15mm top cone, 1.5 - 1 1/8”
Seat
Saddle
Fizik Artares R5 with intergrated clip system
Seatpost
3T Zero25 Team Carbon, 31.6 x 350mm, offset 0/25° with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.4 mm | 1.44 mm | 1.43 mm | 1.45 mm | 1.48 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 563 mm | 574 mm | 572 mm | 583 mm | 607 mm | 617 mm |
| Rake | 50 mm | 50 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 60 mm | 57 mm | 58 mm | 69 mm | 58 mm | 59 mm |
| Stack | 491 mm | 512 mm | 537 mm | 556 mm | 575 mm | 594 mm |
| Reach | 358 mm | 366 mm | 373 mm | 389 mm | 397 mm | 402 mm |
| Top Tube Length | 510 mm | 524 mm | 539 mm | 560 mm | 575 mm | 585 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 100 mm | 120 mm | 140 mm | 160 mm | 180 mm | 200 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 963 mm | 974 mm | 972 mm | 983 mm | 1008 mm | 1018 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 708 mm | 739 mm | 759 mm | 775 mm | 792 mm | 810 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
XENITH LTD completes the Jamis Xenith model. There are 6 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Jamis XENITH COMP 2018 has a starting price of 2099$. Jamis XENITH LTD 2018 on the other hand is the most expensive at 6999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
General Road bikes average price
According to our math, the average price for a trustworthy General Road bike is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Jamis XENITH LTD price was 6999$. Comparing this to the average General Road bike price, we see that the price is 265.48% more expensive.
General Road bikes average weight
If we make a quick analysis of the average weight of a General Road bike, we get 9 kg (19.84 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
XENITH LTD weighs 7.48 kg (16.49 lbs) and is much lighter than the average. In short, the average General Road bike weight is 20.32% higher than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
XENITH LTD components
Fork material
XENITH LTD has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the XENITH LTD bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Jamis XENITH LTD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
