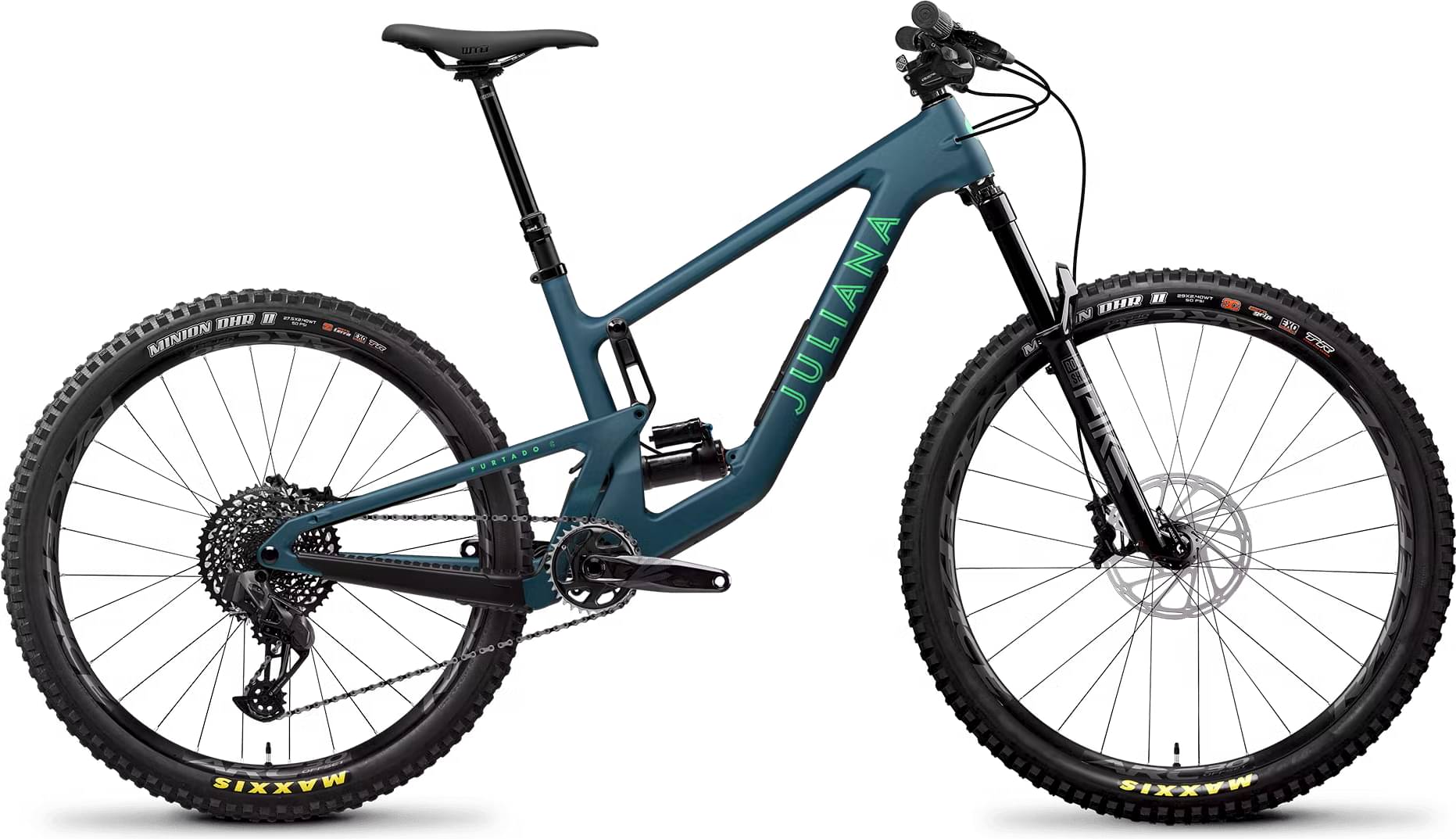

Juliana FURTADO GX AXS / Carbon C 2023
2023 Mountain
Estimate price |
8,399$
Weight | 13.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Select+
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FURTADO GX AXS / Carbon C
Suspension Fork
RockShox Pike Select+, 140mm
Rear Shock
RockShox Super Deluxe Select+, 210x50
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Shift Levers
SRAM GX Eagle AXS Controller 2 Button
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
i9 1/1, 15x110, Torque Cap, 28h
Rear Hub
i9 1/1, 12x148, XD, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 27.5"
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO, TR
Brakes
Brakes
SRAM G2 RS
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 20 Carbon Bar, 760mm
Grips
Juliana House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
Juliana Segundo Saddle
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.48 mm | 1.4 mm | 1.41 mm | 1.35 mm | 1.37 mm |
| Bottom Bracket Height | 338 mm | 335 mm | 338 mm | 335 mm | 338 mm | 334 mm |
| Front Center | 719 mm | 718 mm | 748 mm | 748 mm | 779 mm | 779 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm |
| Trail | 123 mm | 126 mm | 122 mm | 126 mm | 122 mm | 126 mm |
| Stack | 603 mm | 605 mm | 612 mm | 614 mm | 626 mm | 628 mm |
| Reach | 414 mm | 410 mm | 438 mm | 435 mm | 463 mm | 460 mm |
| Top Tube Length | 548 mm | 548 mm | 574 mm | 575 mm | 602 mm | 603 mm |
| Seat Tube Angle | 77.4 ° | 77.1 ° | 77.4 ° | 77.1 ° | 77.4 ° | 77.1 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.2 ° | 64.9 ° | 65.2 ° | 64.9 ° | 65.2 ° | 64.9 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 115 mm | 115 mm |
| Chainstay Length | 432 mm | 433 mm | 434 mm | 435 mm | 437 mm | 438 mm |
| Wheelbase | 1151 mm | 1151 mm | 1182 mm | 1182 mm | 1216 mm | 1217 mm |
| Bottom Bracket Drop | 35 mm | 38 mm | 35 mm | 38 mm | 35 mm | 38 mm |
| Standover Height | 698 mm | 692 mm | 707 mm | 702 mm | 710 mm | 704 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 175 cm | 175 cm |
Model Overview
FURTADO GX AXS / Carbon C is part of the Juliana Furtado model. Juliana launched 45 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Juliana FURTADO R / Carbon C 2023 is the most affordable bike of this model and has a price of 5299$. On the other hand, Juliana FURTADO X01 AXS RSV / Carbon CC 2023, is the most expensive and costs 10299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 8399$. If we compare this with the average Trail bike cost we notice that the price is 204.09% more expensive.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 13.69 kg (30.18 lbs), Juliana bike is a bit heavier than average. In other words, this model is 5.47% heavier than the average Trail bike.
FURTADO GX AXS / Carbon C components
Fork
This bike has the RockShox Pike Select+ fork installed. The fork’s travel is 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select+ rear shock model, which has a travel of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The FURTADO GX AXS / Carbon C 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The FURTADO GX AXS / Carbon C has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 142 cm – 175 cm (4.66 ft – 5.74 ft). In short, you can easily find one that suits you.
Dropper post
The Juliana model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
