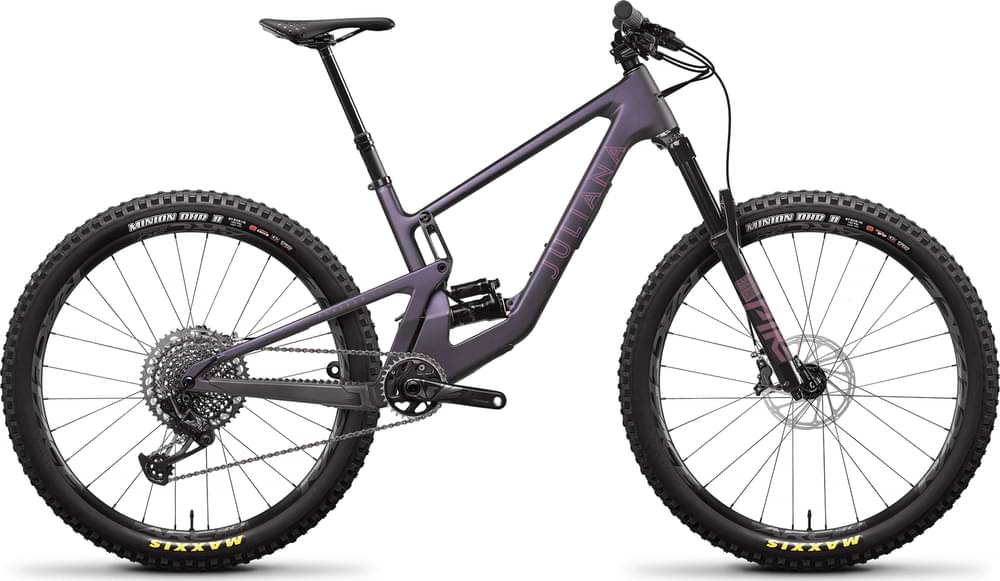

Juliana Furtado X01 / Carbon C / 27.5 2022
2022 Mountain
Estimate price |
7,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Furtado X01 / Carbon C / 27.5
Suspension Fork
RockShox Pike Ultimate 140mm 27.5"
Rear Shock
RockShox Super Deluxe Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12spd
Shift Levers
SRAM X01 Eagle, 12spd
Cassette
SRAM XG1295 Eagle 12spd 10-52t
Crank
SRAM X1 Eagle Carbon DUB 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle 12 SPD
Wheels
Front Hub
Industry Nine 1/1, 110x15, Torque Cap, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Rims
Race Face ARC Offset 30 27.5" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHR II 27.5"x2.4 MaxxGRIP EXO TR, Rear: Maxxis Minion DHR II 27.5"x2.4" 3C EXO TR
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
Santa Cruz 20 Carbon Bar, 760mm, 20mm Rise
Grips
Juliana House Grip, 30mm or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
Juliana Primiero Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.44 mm | 1.38 mm | 1.4 mm | 1.34 mm | 1.35 mm |
| Bottom Bracket Height | 338 mm | 334 mm | 338 mm | 334 mm | 338 mm | 334 mm |
| Front Center | 699 mm | 699 mm | 733 mm | 733 mm | 764 mm | 764 mm |
| Rake | 49 mm | 44 mm | 50 mm | 44 mm | 47 mm | 45 mm |
| Trail | 107 mm | 114 mm | 106 mm | 114 mm | 109 mm | 113 mm |
| Stack | 576 mm | 578 mm | 594 mm | 597 mm | 608 mm | 610 mm |
| Reach | 404 mm | 401 mm | 429 mm | 426 mm | 454 mm | 451 mm |
| Top Tube Length | 528 mm | 528 mm | 559 mm | 560 mm | 589 mm | 591 mm |
| Seat Tube Angle | 77.9 ° | 77.5 ° | 77.6 ° | 77.2 ° | 77.4 ° | 77 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° | 65.7 ° | 65.4 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 120 mm | 135 mm | 135 mm |
| Chainstay Length | 427 mm | 428 mm | 427 mm | 428 mm | 430 mm | 431 mm |
| Wheelbase | 1132 mm | 1127 mm | 1166 mm | 1160 mm | 1197 mm | 1195 mm |
| Bottom Bracket Drop | 16 mm | 20 mm | 16 mm | 20 mm | 16 mm | 20 mm |
| Standover Height | 694 mm | 690 mm | 711 mm | 706 mm | 710 mm | 704 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 175 cm | 175 cm |
About this model
Furtado X01 / Carbon C / 27.5 completes the Juliana Furtado model. Juliana released 45 bikes variations of this model so far. You can easily view all of the Juliana Furtado bikes models from 2022, here.
Model range prices
Juliana Furtado R / Carbon C / 27.5 2022 is the most economical model, with a starting price of 4799$. Juliana Furtado X01 / AXS / RSV / Carbon C / 27.5 2022 on the other hand costs 9599$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Juliana released this model in 2022, its price was 7799$. Doing a quick comparison, we notice that Furtado X01 / Carbon C / 27.5 price is 182.37% higher than the average cost of a Trail bike.
Overview of components
Fork
This bike has the RockShox Pike Ultimate fork installed. The fork’s travel is 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this bike has the RockShox Super Deluxe Ultimate model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Furtado X01 / Carbon C / 27.5 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Juliana Furtado X01 / Carbon C / 27.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Juliana Furtado X01 / Carbon C / 27.5 bike has 6 sizes, in the range of 142 cm – 175 cm (4.66 ft – 5.74 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Juliana model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
