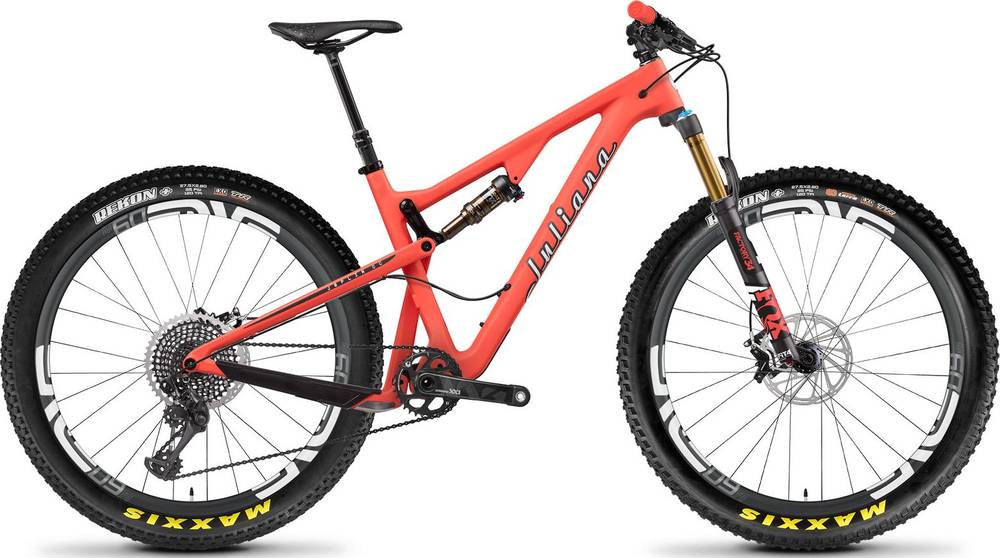

Juliana Joplin Carbon CC XX1 27.5+ 2018
2018 Mountain
Estimate price |
9,999$
Weight | 12.08 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Float Factory Kashima
Rear Shock
FOX Float Factory DSP Kashima
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XG1295, 12-speed, 10-50 tooth
Crank
SRAM XX1 Eagle
Bottom Bracket
included with crankset
Chain
SRAM XX1 Eagle, 12-speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Industry Nine Torch, 15mm x 110mm, Rear: Industry Nine Torch, 12mm x 148mm
Rear Hub
Front: Industry Nine Torch, 15mm x 110mm, Rear: Industry Nine Torch, 12mm x 148mm
Rims
Standard: Easton ARC 40, Upgrade: ENVE m60/40 Rims
Spokes
DT Swiss Competition
Tires
Front: Maxxis Rekon, 2.8", EXO, TR, Rear: Maxxis Rekon, 2.8", EXO, TR
Brakes
Brakes
SRAM Level Ultimate with Avid Centerline 180mm rotors front and rear
Brake Levers
SRAM Level Ultimate
Cockpit
Stem
Easton Haven, 55mm
Handlebar
Santa Cruz Carbon, 31.8mm clamp diameter, 750mm width, flat
Grips
Juliana single-sided lock on
Headset
Cane Creek 110, IS
Seat
Saddle
Juliana Premeiro Carbon
Seatpost
RockShox Reverb Stealth, 100mm (S), 125mm (M), 150mm (L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.41 mm | 1.35 mm |
| Bottom Bracket Height | 328 mm | 328 mm | 328 mm |
| Stack | 602 mm | 612 mm | 612 mm |
| Reach | 410 mm | 435 mm | 455 mm |
| Top Tube Length | 582 mm | 611 mm | 631 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 100 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1127 mm | 1155 mm | 1175 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 709 mm | 710 mm | 711 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Joplin Carbon CC XX1 27.5+ completes the Juliana Joplin model. Juliana released 46 bikes variations of this model so far. You can easily view all of the Juliana Joplin bikes models from 2018, here.
Model range prices
Juliana Joplin Aluminum D 29 2018 is the most affordable bike of this model and has a price of 2699$. On the other hand, Juliana Joplin Carbon CC XX1 27.5+ 2018, is the most expensive and costs 9999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2018 and its price was 9999$. If we compare this with the average Trail bike cost we notice that the price is 262.02% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.08 kg (26.63 lbs), the Joplin Carbon CC XX1 27.5+ model is a bit lighter than average. In conclusion, the average Trail bike weighs 7.45% more than Joplin Carbon CC XX1 27.5+.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Joplin Carbon CC XX1 27.5+ has a rear shock with a travel of 120mm. The model FOX Float Factory DSP Kashima is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Juliana Joplin Carbon CC XX1 27.5+ 2018, has a 27.5″ carbon model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Juliana Joplin Carbon CC XX1 27.5+ is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Joplin Carbon CC XX1 27.5+ comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Juliana Joplin Carbon CC XX1 27.5+ includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
