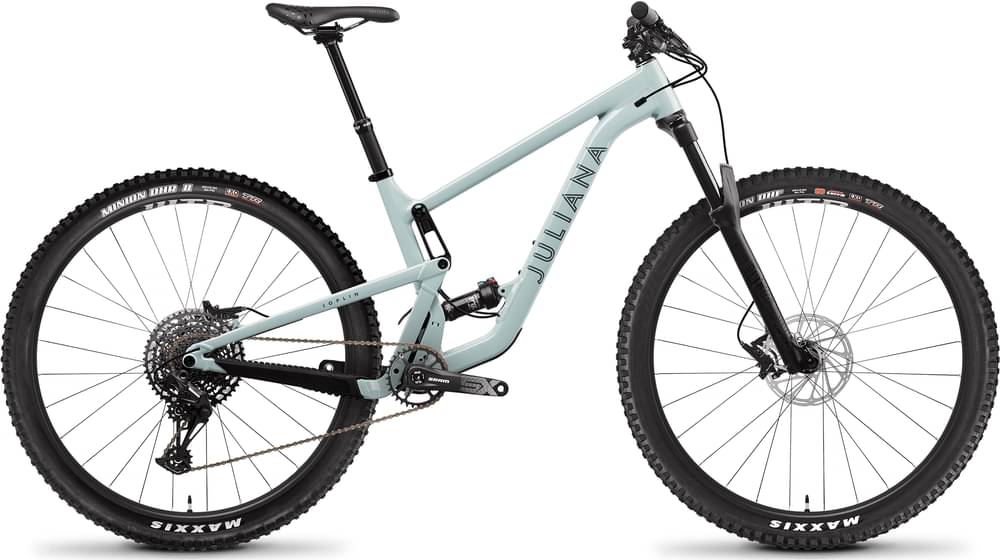

Juliana Joplin D / Aluminum / 29 2021
2021 Mountain
Estimate price |
3,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Joplin D / Aluminum / 29
Suspension Fork
RockShox Recon RL, 130mm, 29/27+
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1210, 12spd, 11-50t
Crank
SRAM SX Eagle 148 DUB, 30t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM SX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, Torque Cap, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
WTB ST i25 TCS 2.0 29"
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF, 29"x2.3", 3C EXO TR, Rear: Maxxis Minion DHR II 29"x2.3" EXO TR
Brakes
Brakes
SRAM Level
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
RaceFace Ride
Handlebar
RaceFace Ride
Grips
Juliana Grips
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
Juliana Segundo Saddle
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 699 mm | 698 mm | 728 mm | 727 mm | 757 mm | 757 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 68 mm | 46 mm |
| Trail | 119 mm | 120 mm | 119 mm | 121 mm | 94 mm | 120 mm |
| Stack | 596 mm | 597 mm | 605 mm | 607 mm | 614 mm | 616 mm |
| Reach | 404 mm | 402 mm | 429 mm | 427 mm | 454 mm | 452 mm |
| Top Tube Length | 543 mm | 544 mm | 571 mm | 572 mm | 600 mm | 601 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1133 mm | 1132 mm | 1162 mm | 1161 mm | 1215 mm | 1191 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 685 mm | 682 mm | 700 | 696 mm | 712 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 175 cm | 175 cm |
Model Overview
Joplin D / Aluminum / 29 is a Juliana Joplin model. There are 46 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Juliana Joplin D / Aluminum / 29 2021 is the most economical model, with a starting price of 3099$. Juliana Joplin X01 / Carbon CC / 29 2021 on the other hand costs 7699$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3099$. In conclusion, this bike price is 12.2% higher than the price of the average Trail bike.
Joplin D / Aluminum / 29 components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the FOX Float Performance DPS rear shock model, which has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the Joplin D / Aluminum / 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 142 cm – 175 cm (4.66 ft – 5.74 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Juliana model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
