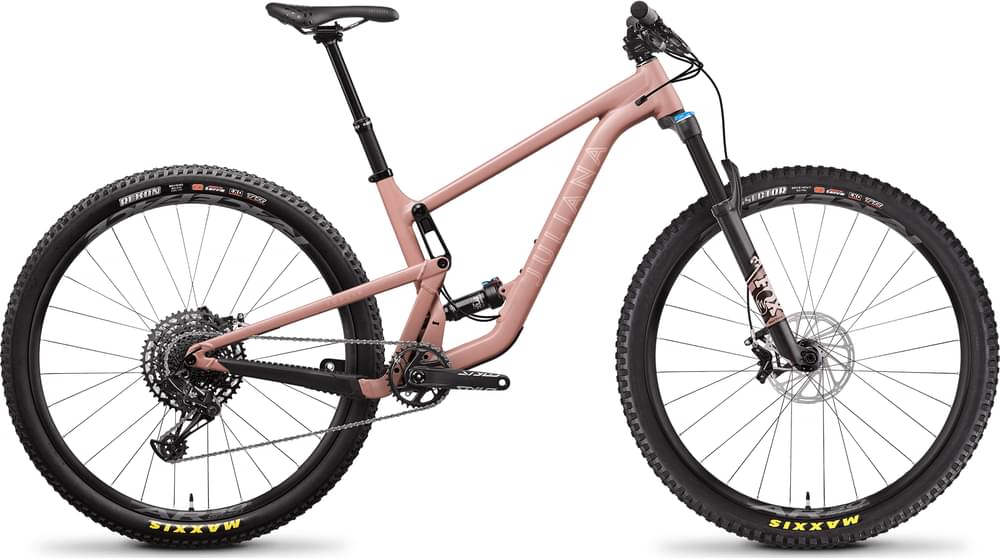

Juliana Joplin R / Aluminum / 29 2022
2022 Mountain
Estimate price |
3,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Joplin R / Aluminum / 29
Suspension Fork
FOX Rhythm 34, 130mm, 29"
Rear Shock
FOX Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12spd
Shift Levers
SRAM NX Eagle, 12spd
Cassette
SRAM PG1230, 12spd, 11-50t
Crank
SRAM Stylo DUB 30t
Bottom Bracket
SRAM DUB 68/73mm
Chain
SRAM NX Eagle, 12spd
Wheels
Front Hub
SRAM MTH 716, 15x110, 32h
Rear Hub
SRAM MTH 746, 12x148, 32h
Rims
RaceFace AR Offset 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Dissector, 29"x2.4, 3C, EXO, MaxxTerra, TR, Rear: Maxxis Rekon, 29"x2.4, 3C. EXO, MaxxTerra, TR
Brakes
Brakes
SRAM Guide T
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
RaceFace Ride
Grips
Juliana House Grip, 30mm or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 10 IS Integrated Headset
Seat
Saddle
Juliana Segundo Saddle or WTB Volt
Seatpost
SDG Tellis
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 699 mm | 698 mm | 728 mm | 727 mm | 757 mm | 757 mm |
| Rake | 41 mm | 40 mm | 41 mm | 40 mm | 40 mm | 41 mm |
| Trail | 124 mm | 127 mm | 124 mm | 127 mm | 125 mm | 126 mm |
| Stack | 596 mm | 597 mm | 605 mm | 607 mm | 614 mm | 616 mm |
| Reach | 404 mm | 402 mm | 429 mm | 427 mm | 454 mm | 452 mm |
| Top Tube Length | 543 mm | 544 mm | 571 mm | 572 mm | 600 mm | 601 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1133 mm | 1132 mm | 1162 mm | 1161 mm | 1191 mm | 1191 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 685 mm | 682 mm | 700 | 696 mm | 712 mm | 708 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 175 cm | 175 cm |
About this model
Joplin R / Aluminum / 29 completes the Juliana Joplin model. There are 46 bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Juliana Joplin D / Aluminum / 29 2022 is the most economical model, with a starting price of 3349$. Juliana Joplin X01 / Carbon CC / 29 2022 on the other hand costs 7899$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Juliana released this model in 2022, its price was 3899$. If we compare this with the average Trail bike cost we notice that the price is 41.17% higher.
Overview of components
Fork
Juliana Joplin R / Aluminum / 29 2022 bike is equipped with the Fox Rhythm Float 34 fork, and has 130mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Joplin R / Aluminum / 29 has a rear shock with a travel of 120mm. The model FOX Float Performance DPS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Juliana Joplin R / Aluminum / 29 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Joplin R / Aluminum / 29 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 142 cm – 175 cm (4.66 ft – 5.74 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Juliana Joplin R / Aluminum / 29 includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
