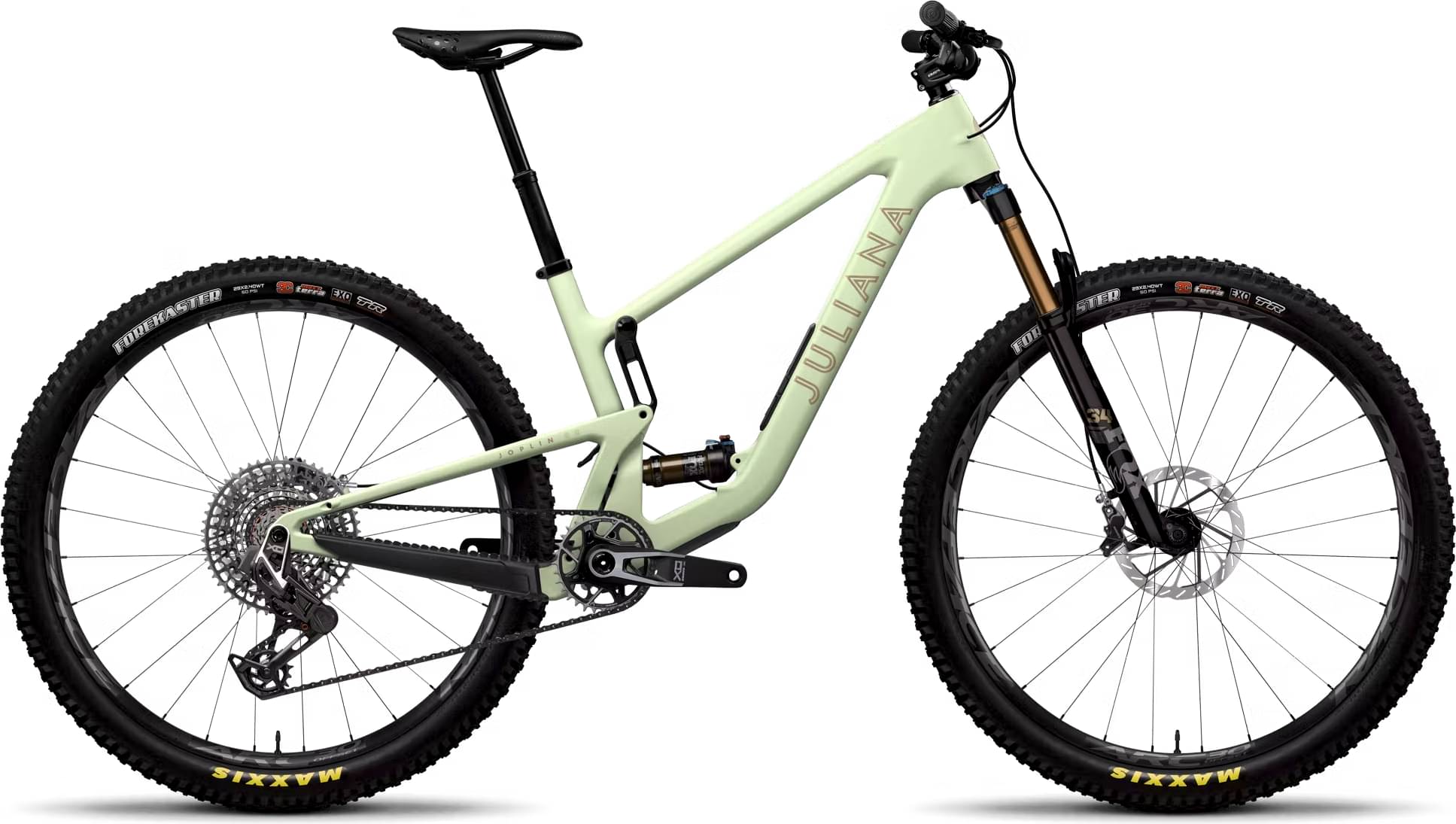

Juliana JOPLIN X0 AXS / Carbon CC 2024
2024 Mountain
Estimate price |
7,899$
Weight | 13.23 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset X0 Eagle Transmission, SRAM -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JOPLIN X0 AXS / Carbon CC
Suspension Fork
FOX 34 Float Factory, Grip2, 130mm -or- RockShox Pike Ultimate, 130mm
Rear Shock
FOX Float Factory, 190x45
Drivetrain
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Shift Levers
SRAM AXS Pod Bridge
Cassette
SRAM X0 Eagle T-Type, 10-52t
Crank
SRAM X0 Eagle DUB T-Type Crankset, 32t
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd
Wheels
Front Hub
Industry Nine 1/1, 15x110, 6-Bolt, 28h
Rear Hub
Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h
Rims
Front: RaceFace ARC Offset 30 29", Rear: RaceFace ARC Offset 30 29"
Tires
Front: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO, Rear: Maxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Brakes
Brakes
SRAM Level Silver Stealth 4-Piston
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 20 Carbon Bar, 760mm
Grips
Juliana House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
Juliana Carbon Saddle
Seatpost
OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.43 mm | 1.36 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 708 mm | 708 mm | 737 mm | 737 mm | 766 mm | 766 mm |
| Rake | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm |
| Trail | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 121 mm |
| Stack | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm |
| Reach | 409 mm | 407 mm | 434 mm | 432 mm | 459 mm | 457 mm |
| Top Tube Length | 559 mm | 560 mm | 583 mm | 584 mm | 606 mm | 607 mm |
| Seat Tube Angle | 76 ° | 75.7 ° | 76.3 ° | 76 ° | 76.7 ° | 76.4 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 434 mm | 435 mm | 434 mm | 435 mm | 437 mm | 438 mm |
| Wheelbase | 1142 mm | 1142 mm | 1171 mm | 1171 mm | 1203 mm | 1203 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 684 mm | 680 mm | 697 mm | 695 mm | 700 | 697 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 175 cm | 175 cm |
Model Overview
JOPLIN X0 AXS / Carbon CC is a Juliana Joplin model. 46 bikes variations carry this model name so far. Take a sneak peek at all Juliana Joplin bikes models from 2024, by clicking here.
Model range prices
Juliana JOPLIN R / Carbon C 2024 is the most affordable bike of this model and has a price of 4799$. On the other hand, Juliana JOPLIN X0 AXS RSV / Carbon CC 2024, is the most expensive and costs 8899$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 7899$. Comparing this to the average Trail bike price, we see that the price is 185.99% more expensive.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.88 kg (28.4 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.23 kg (29.17 lbs), the JOPLIN X0 AXS / Carbon CC model is slightly heavier than average. In conclusion, the average Trail bike weighs 2.72% less than JOPLIN X0 AXS / Carbon CC.
JOPLIN X0 AXS / Carbon CC components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The JOPLIN X0 AXS / Carbon CC has a rear shock with a travel of 120mm. The model FOX Float Factory is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on JOPLIN X0 AXS / Carbon CC are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The JOPLIN X0 AXS / Carbon CC has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 142 cm – 175 cm (4.66 ft – 5.74 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Juliana model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
