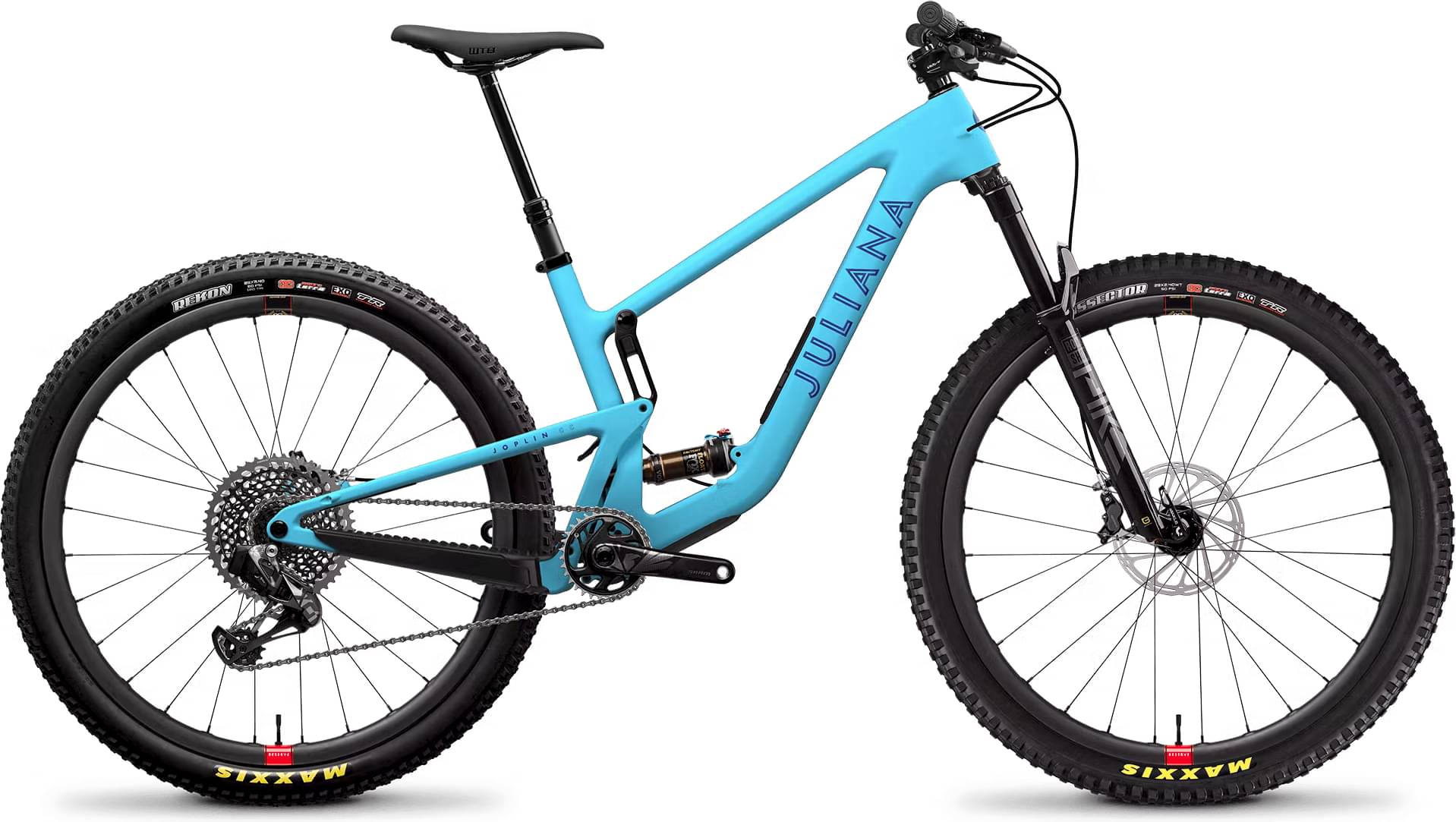

Juliana JOPLIN X01 AXS RSV / Carbon CC 2023
2023 Mountain
Estimate price |
10,049$
Weight | 12.96 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
154cm - 166cm
SM Low
154cm - 166cm
MD High
164cm - 175cm
MD Low
164cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JOPLIN X01 AXS RSV / Carbon CC
Suspension Fork
RockShox Pike Ultimate, 130mm
Rear Shock
FOX Float Factory DPS 190x45
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM X1 Carbon Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Torque Cap, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rear Hub
Front: i9 1/1, 15x110, Torque Cap, 28h, Rear: i9 1/1, 12x148, XD, 28h
Rims
Front: Reserve 30|SL 29", 28h, Rear: Reserve 30|SL 29", 28h
Tires
Front: Maxxis Dissector 29"x2.4"WT, 3C MaxxTerra, EXO, TR, Rear: Maxxis Rekon 29"x2.4"WT, 3C MaxxTerra, EXO, TR
Brakes
Brakes
SRAM G2 RSC
Cockpit
Stem
Burgtec Enduro MK3, 42mm
Handlebar
Santa Cruz 20 Carbon Bar, 760mm
Grips
Juliana House Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
Juliana Carbon Saddle
Seatpost
RockShox Reverb Stealth, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.43 mm | 1.36 mm | 1.37 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 708 mm | 708 mm | 737 mm | 737 mm | 766 mm | 766 mm |
| Rake | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm | 45 mm |
| Trail | 119 mm | 121 mm | 119 mm | 121 mm | 119 mm | 121 mm |
| Stack | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm |
| Reach | 409 mm | 407 mm | 434 mm | 432 mm | 459 mm | 457 mm |
| Top Tube Length | 559 mm | 560 mm | 583 mm | 584 mm | 606 mm | 607 mm |
| Seat Tube Angle | 76 ° | 75.7 ° | 76.3 ° | 76 ° | 76.7 ° | 76.4 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 105 mm | 115 mm | 115 mm |
| Chainstay Length | 434 mm | 435 mm | 434 mm | 435 mm | 437 mm | 438 mm |
| Wheelbase | 1142 mm | 1142 mm | 1171 mm | 1171 mm | 1203 mm | 1203 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 684 mm | 680 mm | 697 mm | 695 mm | 700 | 697 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 154 cm | 154 cm | 164 cm | 164 cm |
| Rider Max Height | 156 cm | 156 cm | 166 cm | 166 cm | 175 cm | 175 cm |
About this model
JOPLIN X01 AXS RSV / Carbon CC is part of the Juliana Joplin model. Juliana launched 46 bikes of this model so far. You can easily view all of the Juliana Joplin bikes models from 2023, here.
Model range prices
Juliana JOPLIN R / Carbon C 2023 is the most affordable bike of this model and has a price of 5299$. On the other hand, Juliana JOPLIN X01 AXS RSV / Carbon CC 2023, is the most expensive and costs 10049$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10049$. If we compare this with the average Trail bike cost we notice that the price is 263.83% more expensive.
Trail bikes average weight
Trail bikes have an average weight of 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Juliana JOPLIN X01 AXS RSV / Carbon CC it’s weighing 12.96 kg (28.57 lbs). At this weight, is slightly heavier than average. To sum up, it’s 0.62% heavier than the average weight of Trail bikes.
JOPLIN X01 AXS RSV / Carbon CC components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Juliana JOPLIN X01 AXS RSV / Carbon CC bike has the FOX Float Factory DPS 190×45 model installed, and has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Juliana JOPLIN X01 AXS RSV / Carbon CC 2023, has a 29″ carbon model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The JOPLIN X01 AXS RSV / Carbon CC comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
JOPLIN X01 AXS RSV / Carbon CC comes in 6 sizes, that range from 142 cm – 175 cm (4.66 ft – 5.74 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the JOPLIN X01 AXS RSV / Carbon CC. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
