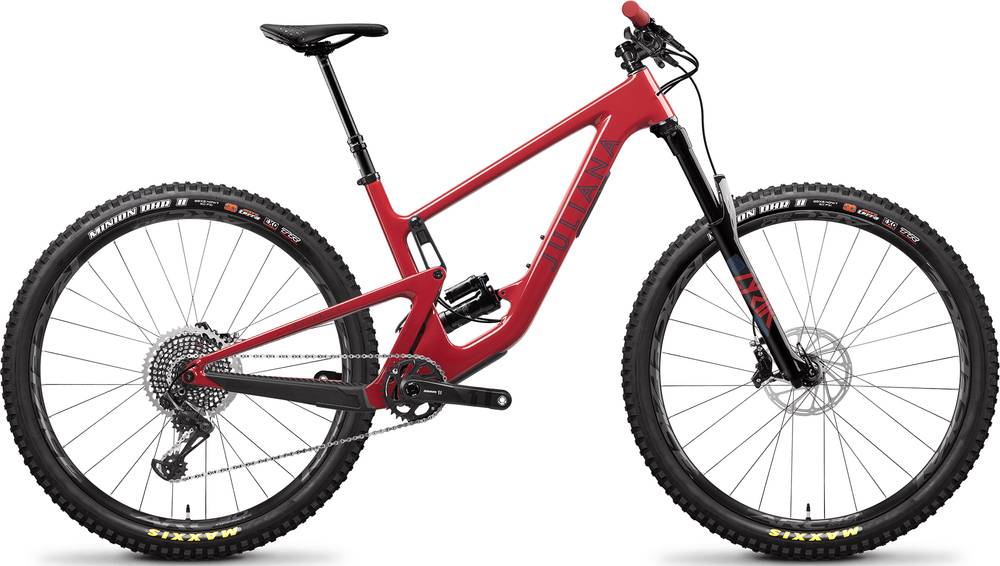

Juliana Maverick X01 / Carbon CC / 29 2020
2020 Mountain
Estimate price |
7,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
154cm - 167cm
SM Low
154cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Maverick X01 / Carbon CC / 29
Suspension Fork
RockShox Lyrik Ultimate 150mm 29"
Rear Shock
RockShox Super Deluxe Select Ultimate
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XG1295 Eagle 10-50T
Crank
SRAM X1 Eagle 148 DUB, 30t - 170mm (S), 175mm (M-L)
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM X01 Eagle 12 SPD
Wheels
Front Hub
DT 350 15x110 28H Torque Cap
Rear Hub
DT 350 148x12 28h XD
Rims
Race Face ARC Offset 30 29" Rims
Spokes
DT Competition Race (28)
Tires
Front: Maxxis Minion DHR2 29"x2.4" 3C EXO TR, Rear: Maxxis Minion DHR2 29"x2.4" 3C EXO TR
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Race Face Aeffect R 50mm
Handlebar
Santa Cruz Bicycles AM Carbon Bar 35x800
Grips
Juliana Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
Juliana Primiero Saddle
Seatpost
RockShox Reverb Stealth 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 745 mm | 745 mm | 774 mm | 774 mm | 798 mm | 798 mm |
| Rake | 52 mm | 53 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 114 mm | 115 mm | 114 mm | 116 mm | 114 mm | 116 mm |
| Stack | 598 mm | 600 mm | 607 mm | 609 mm | 616 mm | 618 mm |
| Reach | 425 mm | 422 mm | 450 mm | 447 mm | 470 mm | 467 mm |
| Top Tube Length | 563 mm | 564 mm | 591 mm | 593 mm | 615 mm | 616 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77 ° | 76.6 ° | 76.8 ° | 76.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 701 mm | 696 mm | 715 mm | 710 mm | 714 mm | 710 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 154 cm | 164 cm | 164 cm | 174 cm | 174 cm |
| Rider Max Height | 167 cm | 167 cm | 177 cm | 177 cm | 185 cm | 185 cm |
Model Overview
Maverick X01 / Carbon CC / 29 completes the Juliana Maverick model. Juliana released 10 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Juliana Maverick R / Carbon C / 29 2020 has a starting price of 4299$. Juliana Maverick X01 / Carbon CC / 29 2020 on the other hand is the most expensive at 7099$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Juliana released this model in 2020, its price was 7099$. Comparing this to the average Trail bike price, we see that the price is 157.02% more expensive.
Overview of components
Fork
The Maverick X01 / Carbon CC / 29 comes factory-installed with the RockShox Lyrik Ultimate fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Maverick X01 / Carbon CC / 29 has a rear shock with a travel of 140mm. The model RockShox Super Deluxe Select Ultimate is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Maverick X01 / Carbon CC / 29 are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 154 cm – 185 cm (5.05 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Juliana Maverick X01 / Carbon CC / 29 comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
