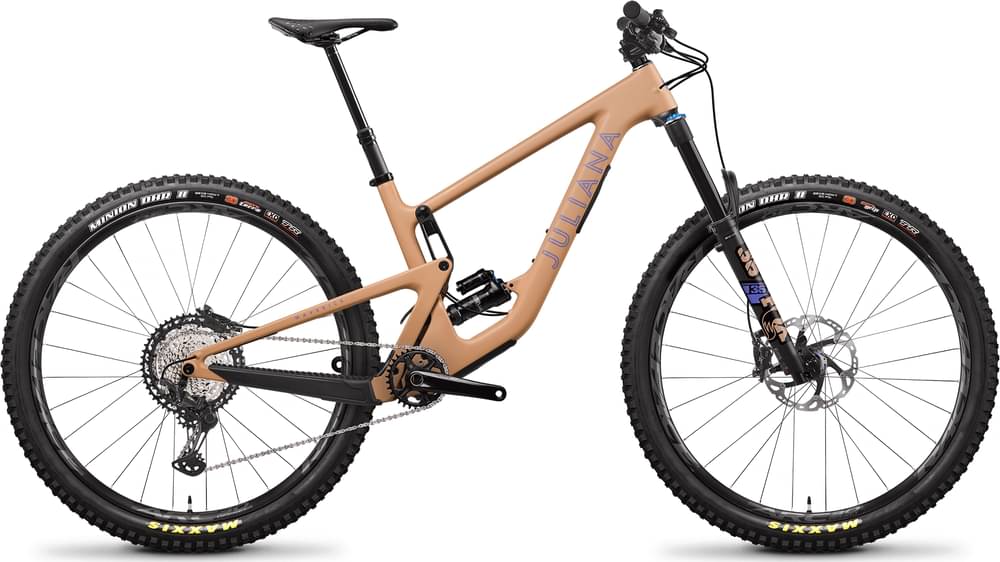

Juliana Maverick XT / Carbon C / 29 2022
2022 Mountain
Estimate price |
6,949$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 145mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM High
155cm - 166cm
SM Low
155cm - 166cm
MD High
164cm - 176cm
MD Low
164cm - 176cm
LG High
174cm - 185cm
LG Low
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Maverick XT / Carbon C / 29
Suspension Fork
FOX 36 Float Performance Elite, 150mm, 29"
Rear Shock
RockShox Super Deluxe Select+
Drivetrain
Rear Derailleur
Shimano XT M8100, 12spd
Shift Levers
Shimano XT M8100, 12spd
Cassette
Shimano XT M8100, 12spd, 10-51t
Crank
Shimano XT M8120 30t
Bottom Bracket
Shimano XT 68/73mm Threaded BB
Chain
Shimano XT, 12spd
Wheels
Front Hub
Industry Nine 1/1, 110x15, 6 Bolt, 28h
Rear Hub
Industry Nine 1/1, 148x12, Microspline, 6 Bolt, 28h
Rims
RaceFace ARC Offset 30 29" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHR II 29"x2.4", 3C, MaxxGRIP, EXO, TR, Rear: Maxxis Minion DHR 29"x2.4", 3C, EXO, MaxxTerra
Brakes
Brakes
Shimano XT M8120
Disk Rotors
Shimano XT RT86 Ice Tech 180mm
Cockpit
Stem
Burgtec Enduro MK3, 42.5mm
Handlebar
Santa Cruz 20 Carbon Bar, 760mm, 20mm Rise
Grips
Juliana House Grip, 30mm or Burgtec Bartender Pro Grip Minnaar
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
Juliana Primiero Saddle or WTB Volt
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm |
| Bottom Bracket Height | 344 mm | 340 mm | 344 mm | 340 mm | 344 mm | 340 mm |
| Front Center | 745 mm | 745 mm | 774 mm | 774 mm | 798 mm | 798 mm |
| Rake | 52 mm | 53 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 114 mm | 115 mm | 114 mm | 116 mm | 114 mm | 116 mm |
| Stack | 598 mm | 600 mm | 607 mm | 609 mm | 616 mm | 618 mm |
| Reach | 425 mm | 422 mm | 450 mm | 447 mm | 470 mm | 467 mm |
| Top Tube Length | 563 mm | 564 mm | 591 mm | 593 mm | 615 mm | 616 mm |
| Seat Tube Angle | 77.1 ° | 76.7 ° | 77 ° | 76.6 ° | 76.8 ° | 76.5 ° |
| Seat Tube Length | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm |
| Head Tube Angle | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° | 65.5 ° | 65.2 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm |
| Chainstay Length | 430 mm | 431 mm | 430 mm | 431 mm | 430 mm | 431 mm |
| Wheelbase | 1175 mm | 1176 mm | 1204 mm | 1205 mm | 1228 mm | 1229 mm |
| Bottom Bracket Drop | 29 mm | 33 mm | 29 mm | 33 mm | 29 mm | 33 mm |
| Standover Height | 701 mm | 696 mm | 715 mm | 710 mm | 714 mm | 710 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 155 cm | 164 cm | 164 cm | 174 cm | 174 cm |
| Rider Max Height | 166 cm | 166 cm | 176 cm | 176 cm | 185 cm | 185 cm |
About this model
Maverick XT / Carbon C / 29 is part of the Juliana Maverick model. There are 10 bikes that carry this model name. You can easily view all of the Juliana Maverick bikes models from 2022, here.
Model range prices
Juliana Maverick R / Carbon C / 29 2022 is the most economical model, with a starting price of 4949$. Juliana Maverick X01 / Carbon CC / 29 2022 on the other hand costs 8049$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Juliana Maverick XT / Carbon C / 29 price was 6949$. Comparing the average cost of a Trail bike to this one, you will see that Maverick XT / Carbon C / 29 price is 151.59% higher.
Maverick XT / Carbon C / 29 components
Fork
Juliana Maverick XT / Carbon C / 29 2022 bike is equipped with the Fox Performance Elite Float 36 fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Maverick XT / Carbon C / 29 has a rear shock with a travel of 145mm. The model RockShox Super Deluxe Select+ is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Maverick XT / Carbon C / 29 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Maverick XT / Carbon C / 29 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Maverick XT / Carbon C / 29 comes in 6 sizes, that range from 155 cm – 185 cm (5.09 ft – 6.07 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Maverick XT / Carbon C / 29. Therefore, climbing or descending will be a breeze.
