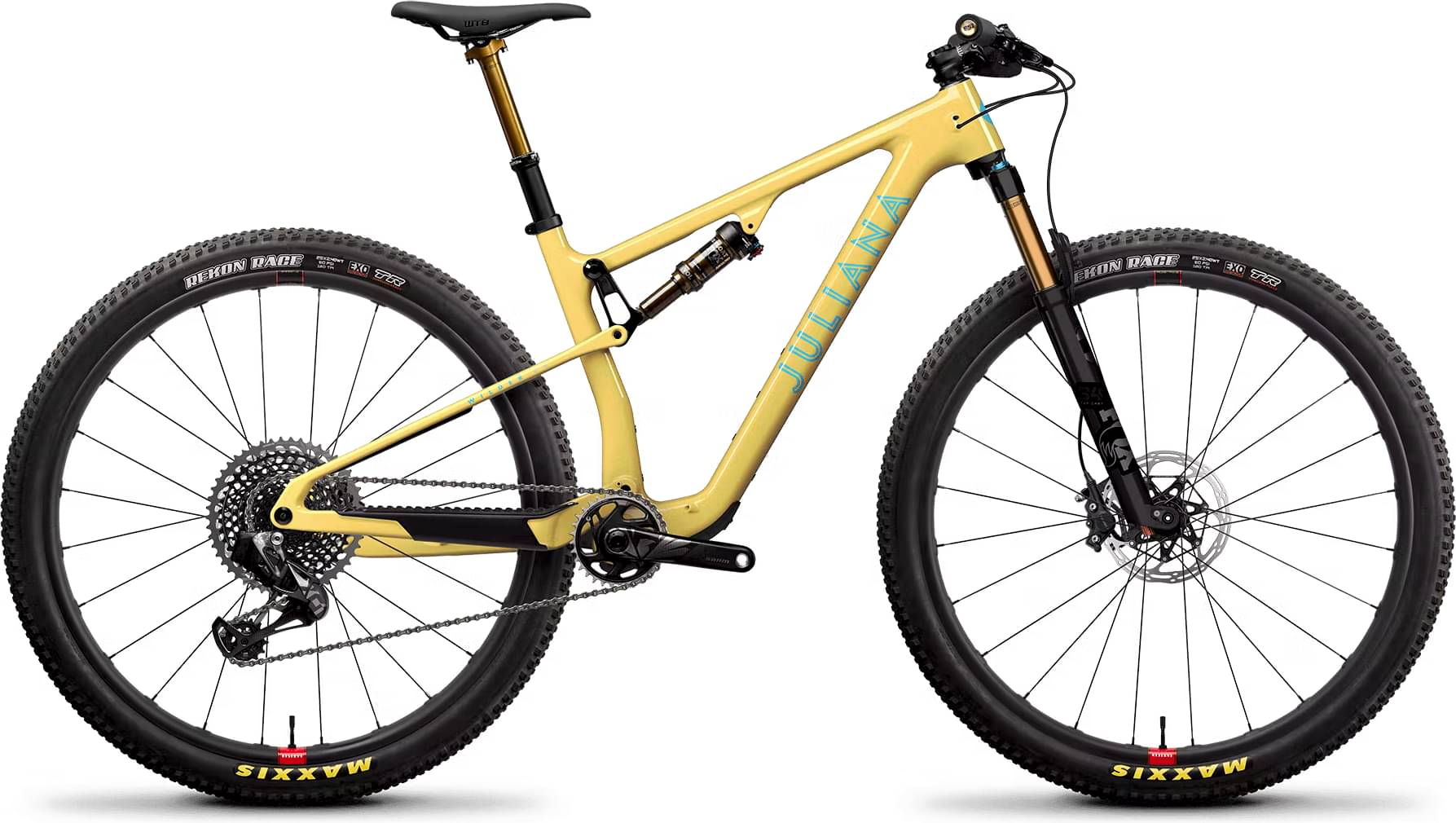

Juliana WILDER X01 AXS TR RSV / Carbon CC 2023
2023 Mountain
Estimate price |
9,749$
Weight | 10.82 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 115mm -
Fork Fox Performance Float 34
-
Groupset X01 Eagle AXS, GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WILDER X01 AXS TR RSV / Carbon CC
Suspension Fork
FOX 34SC Performance Factory, 120mm
Rear Shock
FOX Float Factory DPS 190x45
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, 12spd
Shift Levers
GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM X1 Carbon Eagle 148 DUB, 32t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Centerlock, 24h, Rear: i9 1/1, 12x148, XD, Centerlock, 24h
Rear Hub
Front: i9 1/1, 15x110, Centerlock, 24h, Rear: i9 1/1, 12x148, XD, Centerlock, 24h
Rims
Front: Reserve 28|XC 29", 24h, Rear: Reserve 28|XC 29", 24h
Tires
Front: Maxxis Rekon Race 29"x2.4"WT, EXO, TR, Rear: Maxxis Rekon Race 29"x2.4"WT, EXO, TR
Brakes
Brakes
SRAM Level TLM
Cockpit
Stem
SRAM Atmos 7k Stem, 60mm
Handlebar
Santa Cruz Bicycles Carbon Flat Bar
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
Juliana Carbon Saddle
Seatpost
FOX Transfer SL Factory, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 339.9 mm | 339.7 mm | 339.6 mm |
| Front Center | 695 mm | 723.7 mm | 747.4 mm |
| Rake | 46 mm | 45 mm | 45 mm |
| Trail | 108 mm | 109 mm | 109 mm |
| Stack | 592.4 mm | 602 mm | 611.5 mm |
| Reach | 417.3 mm | 442.8 mm | 462.5 mm |
| Top Tube Length | 573.4 mm | 602.3 mm | 626.4 mm |
| Seat Tube Angle | 75.1 ° | 75 ° | 74.9 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm |
| Head Tube Angle | 67.1 ° | 67.1 ° | 67.1 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm |
| Chainstay Length | 435 mm | 438 mm | 440 mm |
| Wheelbase | 1130 mm | 1162 mm | 1188 mm |
| Bottom Bracket Drop | 32 mm | 32 mm | 32 mm |
| Standover Height | 748 mm | 751 mm | 750 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 185 cm |
About this model
WILDER X01 AXS TR RSV / Carbon CC is part of the Juliana Wilder model. Juliana released 20 bikes variations of this model so far. You can easily view all of the Juliana Wilder bikes models from 2023, here.
Model range prices
Juliana WILDER R TR / Carbon C 2023 is the cheapest bike model and costs 4899$. Juliana WILDER X01 AXS TR RSV / Carbon CC 2023 is the most expensive one and costs 9749$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Juliana released this model in 2023, its price was 9749$. In conclusion, this bike price is 411.76% more expensive than the price of the average Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.31 kg (27.14 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 10.82 kg (23.85 lbs), Juliana bike is considerably lighter than average. In conclusion, the average Crosscountry bike weighs 13.77% more than WILDER X01 AXS TR RSV / Carbon CC.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX Float Factory DPS 190×45, with a travel distance of 115mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The WILDER X01 AXS TR RSV / Carbon CC 2023 bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Juliana WILDER X01 AXS TR RSV / Carbon CC is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
WILDER X01 AXS TR RSV / Carbon CC comes in 3 sizes, that range from 155 cm – 185 cm (5.09 ft – 6.07 ft). In short, you can easily find one that suits you.
Dropper post
Juliana WILDER X01 AXS TR RSV / Carbon CC includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
