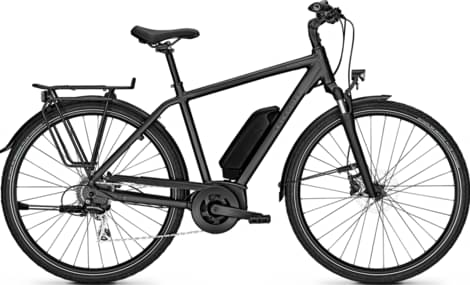

kalkhoff ENDEAVOUR 1.B MOVE Diamond 2022
2022 E-bike
Estimate price |
2,866$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Bosch V2, aluminium
Suspension Fork
SR Suntour NEX, adjustable
Drivetrain
Rear Derailleur
Shimano Acera
Shift Levers
Shimano Altus
Crank
aluminium
Bottom Bracket
Bosch, press-fit
Chain
KMC X8
Pedals
Aluminium, with anti slip protection and reflector
Wheels
Rims
Schürmann CRAFT 21
Brakes
Brakes
Shimano MT200, 2-piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Nuvola,Selle Royal TCM
Seatpost
Concept EX, aluminium
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerPack Li-Ion 36V
Remote
Bosch Purion, LCD display with walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | LG | XL | XS | MD |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.553 mm | 1.595 mm | 1.739 mm | 1.61 mm | 1.568 mm |
| Front Center | 643 mm | 651 mm | 659 mm | 722 mm | 731 mm |
| Rake | 55 mm | 55 mm | 55 mm | 45 mm | 45 mm |
| Trail | 58 mm | 58 mm | 58 mm | 85 mm | 75 mm |
| Stack | 612 mm | 638 mm | 685 mm | 677.8 mm | 694.8 mm |
| Reach | 394 mm | 400 mm | 394 mm | 421 mm | 443 mm |
| Top Tube Length | 570 mm | 595 mm | 610 mm | 615.4 mm | 642.2 mm |
| Seat Tube Angle | 74 ° | 73 ° | 72.5 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 68 ° | 69.5 ° |
| Head Tube Length | 135 mm | 170 mm | 220 mm | 185 mm | 195 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 527 mm | 527 mm |
| Wheelbase | 1111 mm | 1120 mm | 1129 mm | 1242 mm | 1251 mm |
| Bottom Bracket Drop | 60 mm | 55 mm | 55 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
ENDEAVOUR 1.B MOVE Diamond completes the Kalkhoff E Endeavour model. Kalkhoff launched 46 e-bikes of this model so far. Take a sneak peek at all Kalkhoff E Endeavour e-bikes models from 2022, by clicking here.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Trapez 2022 is the cheapest e-bike model and costs 2653$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ Wave 2022 is the most expensive one and costs 5467$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2022 and its price was 2653$. In conclusion, this e-bike price is 3.27% higher than the price of the average Commuter e-bike.
Overview of components
Fork
The ENDEAVOUR 1.B MOVE Diamond comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The ENDEAVOUR 1.B MOVE Diamond 2022 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Kalkhoff ENDEAVOUR 1.B MOVE Diamond has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
