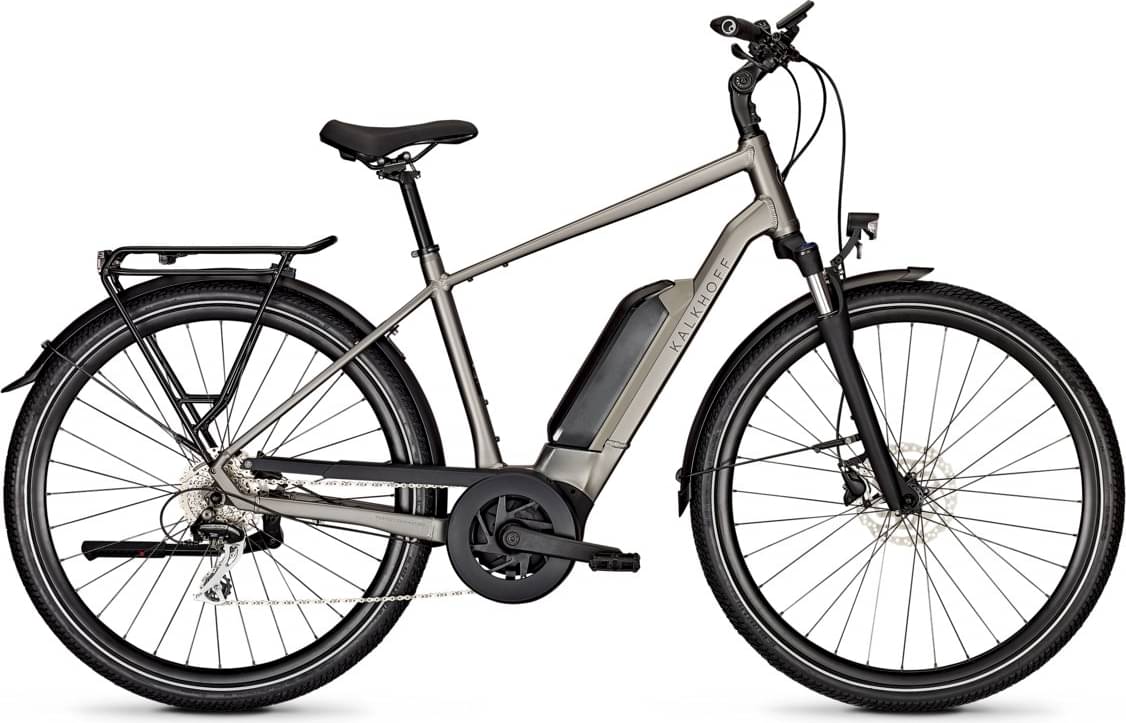

kalkhoff ENDEAVOUR 1.B MOVE Wave 2023
2023 E-bike
Estimate price |
3,880$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36 V -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
Suntour NEX E25 HLO 50mm
Rear Shock
No
Drivetrain
Rear Derailleur
Shimano Acera
Shift Levers
Shimano Altus
Crank
aluminium
Bottom Bracket
No
Chain
KMC X8
Pedals
Aluminium, with anti slip protection and reflector
Wheels
Front Hub
KT TC7F, Centerlock
Rear Hub
KT TC7R, Centerlock, 10-speed
Rims
High Profile, with eyelets, aluminum
Tires
CST Platinum, 50-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal TCM
Seatpost
Concept EX, aluminium
Motor & Battery
Motor
Bosch Performance Line Smart System, 36 V / 250 W / 75 Nm
Battery
Bosch PowerPack Li-Ion 36 V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm | mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm | mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm | mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm | mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm | mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm | mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° | ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° | ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm | mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm | mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
ENDEAVOUR 1.B MOVE Wave is a Kalkhoff E Endeavour model. Kalkhoff released 46 e-bikes variations of this model so far. You can easily view all of the Kalkhoff E Endeavour e-bikes models from 2023, here.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Wave 2023 is the most economical model, with a starting price of 3526$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ ABS Diamond 2023 on the other hand costs 6324$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Kalkhoff ENDEAVOUR 1.B MOVE Wave price was 3526$. Comparing the average cost of a Commuter e-bike to this one, you will see that ENDEAVOUR 1.B MOVE Wave price is 37.25% higher.
ENDEAVOUR 1.B MOVE Wave components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is 50mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the ENDEAVOUR 1.B MOVE Wave model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
