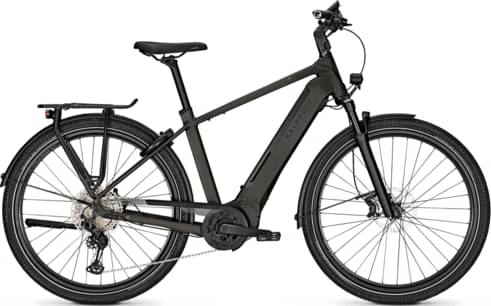

kalkhoff ENDEAVOUR 5.B ADVANCE+ Diamond 2022
2022 E-bike
Estimate price |
5,045$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Drivetrain
Rear Derailleur
Shimano Deore XT M8130
Shift Levers
Shimano Deore XT
Crank
aluminium
Chain
Shimano CN-LG50, 12-speed
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Road Airline Plus, with eyelets
Brakes
Brakes
Tektro M535, 4-Piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin
Seatpost
Aluminium, 31.6 mm,Concept EX, aluminium
Motor & Battery
Motor
Bosch Performance Line CX, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.682 mm | 1.686 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 668 mm | 672 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 70 mm | 67 mm | 70 mm |
| Stack | 660 mm | 667 mm | 676 mm | 688 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 70.5 ° | 71 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1155 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
ENDEAVOUR 5.B ADVANCE+ Diamond completes the Kalkhoff E Endeavour model. Kalkhoff released 46 e-bikes variations of this model so far. Take a sneak peek at all Kalkhoff E Endeavour e-bikes models from 2022, by clicking here.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Trapez 2022 is the most economical model, with a starting price of 2653$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ Wave 2022 on the other hand costs 5467$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Kalkhoff released this model in 2022, its price was 4671$. Comparing this to the average Commuter e-bike price, we see that the price is 81.82% higher.
Overview of components
Fork
The Suntour MOBIE is included from the factory. It has a travel distance of 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the ENDEAVOUR 5.B ADVANCE+ Diamond model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ENDEAVOUR 5.B ADVANCE+ Diamond comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
