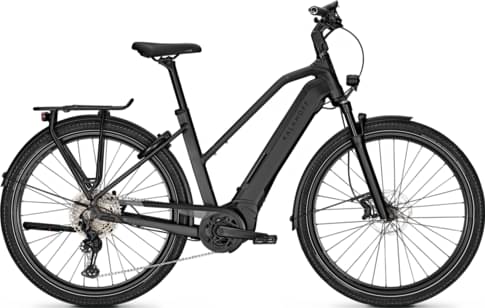

kalkhoff ENDEAVOUR 5.B ADVANCE+ Trapez 2022
2022 E-bike
Estimate price |
5,045$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Drivetrain
Rear Derailleur
Shimano Deore XT M8130
Shift Levers
Shimano Deore XT
Crank
aluminium
Chain
Shimano CN-LG50, 12-speed
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Road Airline Plus, with eyelets
Brakes
Brakes
Tektro M535, 4-Piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Lookin
Seatpost
Aluminium, 31.6 mm,Concept EX, aluminium
Motor & Battery
Motor
Bosch Performance Line CX, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.682 mm | 1.686 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 668 mm | 672 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 70 mm | 67 mm | 70 mm |
| Stack | 660 mm | 667 mm | 676 mm | 688 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 70.5 ° | 71 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1155 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
ENDEAVOUR 5.B ADVANCE+ Trapez completes the Kalkhoff E Endeavour model. There are 46 e-bikes that carry this model name. You can easily view all of the Kalkhoff E Endeavour e-bikes models from 2022, here.
Model range prices
The most economical model, the Kalkhoff ENDEAVOUR 1.B MOVE Trapez 2022 has a starting price of 2653$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ Wave 2022 on the other hand is the most expensive at 5467$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Kalkhoff ENDEAVOUR 5.B ADVANCE+ Trapez price was 4671$. Comparing the average cost of a Commuter e-bike to this one, you will see that ENDEAVOUR 5.B ADVANCE+ Trapez price is 81.82% higher.
Overview of components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 75mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the ENDEAVOUR 5.B ADVANCE+ Trapez e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The ENDEAVOUR 5.B ADVANCE+ Trapez has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
