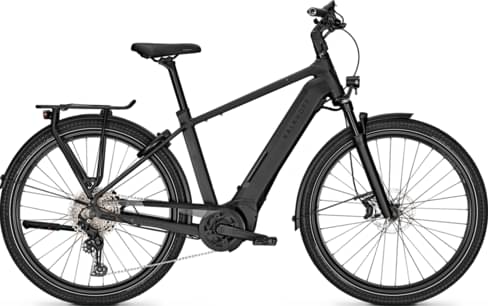

kalkhoff ENDEAVOUR 5.B MOVE+ Diamond 2022
2022 E-bike
Estimate price |
4,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Drivetrain
Rear Derailleur
Shimano Deore M5130
Shift Levers
Shimano Deore
Crank
aluminium
Chain
Shimano CN-LG50, 12-speed
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Road Airline Plus, with eyelets
Brakes
Brakes
Tektro M530, 4-Piston/2-Piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Aluminium, 31.6 mm,Concept EX, aluminium
Motor & Battery
Motor
Bosch Performance Line CX, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.684 mm | 1.689 mm | 1.686 mm | 1.679 mm |
| Front Center | 650 | 659 mm | 662 mm | 672 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 71 mm | 68 mm | 67 mm | 70 mm |
| Stack | 660 mm | 667 mm | 679 mm | 688 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 600 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 70.5 ° | 71 ° | 71 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1145 mm | 1149 mm | 1159 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
Model Overview
ENDEAVOUR 5.B MOVE+ Diamond is part of the Kalkhoff E Endeavour model. Kalkhoff launched 46 e-bikes of this model so far. You can easily view all of the Kalkhoff E Endeavour e-bikes models from 2022, here.
Model range prices
The most economical model, the Kalkhoff ENDEAVOUR 1.B MOVE Trapez 2022 has a starting price of 2653$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ Wave 2022 on the other hand is the most expensive at 5467$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 4458$. Comparing the average cost of a Commuter e-bike to this one, you will see that ENDEAVOUR 5.B MOVE+ Diamond price is 73.53% higher.
ENDEAVOUR 5.B MOVE+ Diamond components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 75mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the ENDEAVOUR 5.B MOVE+ Diamond e-bike is equipped with the aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
