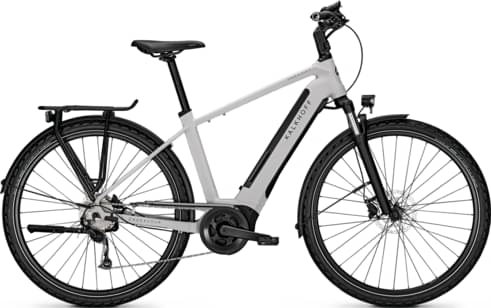

kalkhoff ENDEAVOUR 5.B SEASON Diamond 2022
2022 E-bike
Estimate price |
4,243$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.6, Aluminium
Suspension Fork
SR Suntour XCM 32 LOR, 15x100 mm
Drivetrain
Rear Derailleur
Shimano Alivio M3100
Shift Levers
Shimano Alivio
Crank
aluminium
Chain
Shimano HG53
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Concept, with eyelets
Brakes
Brakes
Shimano MT200, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Ergo Riser,Concept EX Riser
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Aluminium, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.671 mm | 1.689 mm | 1.682 mm | 1.681 mm | 1.679 mm |
| Front Center | 650 | 654 mm | 668 mm | 677 mm | 687 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 67 mm | 70 mm | 70 mm | 70 mm |
| Stack | 660 mm | 669 mm | 676 mm | 686 mm | 695 mm |
| Reach | 395 mm | 396 mm | 402 mm | 408 mm | 414 mm |
| Top Tube Length | 597 mm | 601 mm | 609 mm | 618 mm | 627 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 71 ° | 71 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 494 mm | 494 mm | 494 mm | 494 mm | 494 mm |
| Wheelbase | 1136 mm | 1140 mm | 1155 mm | 1164 mm | 1174 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
About this model
ENDEAVOUR 5.B SEASON Diamond is a Kalkhoff E Endeavour model. Kalkhoff launched 46 e-bikes of this model so far. Take a sneak peek at all Kalkhoff E Endeavour e-bikes models from 2022, by clicking here.
Model range prices
Kalkhoff ENDEAVOUR 1.B MOVE Trapez 2022 is the most economical model, with a starting price of 2653$. Kalkhoff ENDEAVOUR 7.B ADVANCE+ Wave 2022 on the other hand costs 5467$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Kalkhoff ENDEAVOUR 5.B SEASON Diamond price was 3928$. Doing a quick comparison, we notice that ENDEAVOUR 5.B SEASON Diamond price is 52.9% more expensive than the average cost of a Commuter e-bike.
ENDEAVOUR 5.B SEASON Diamond components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Kalkhoff ENDEAVOUR 5.B SEASON Diamond 2022, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ENDEAVOUR 5.B SEASON Diamond comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
