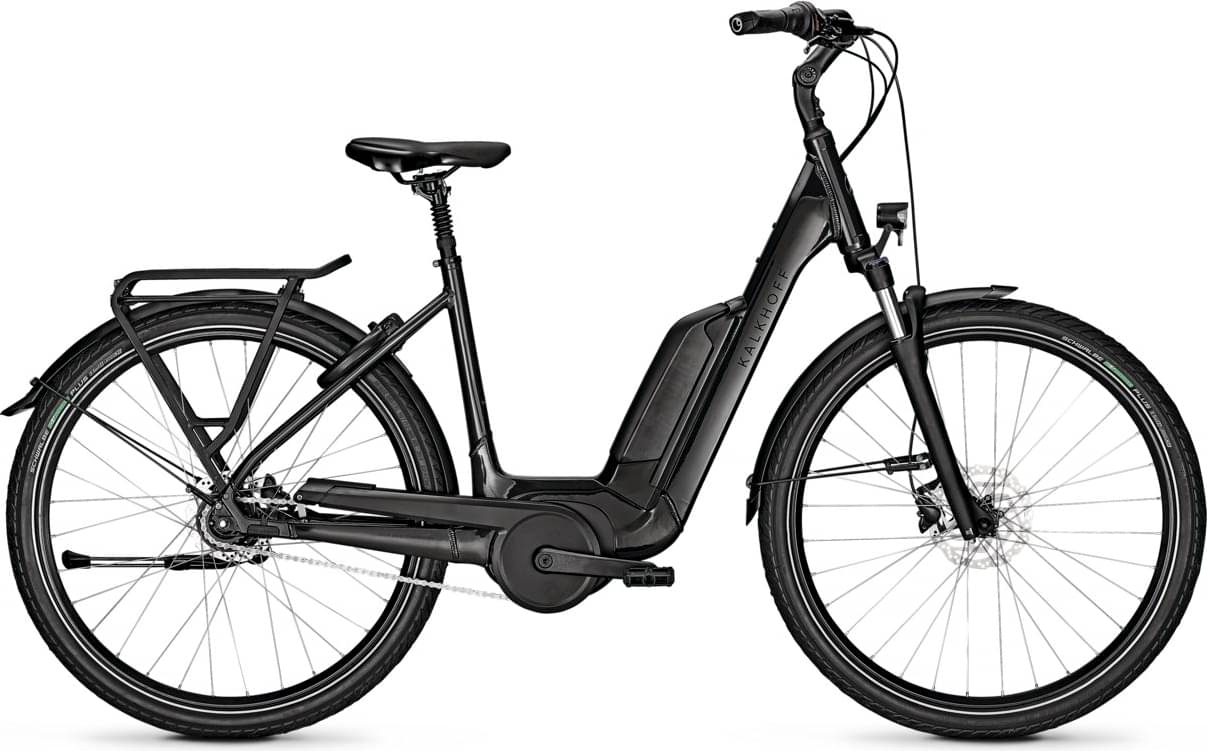

kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023
2023 E-bike
Estimate price |
3,210$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NVX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPack Li-Ion 36V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Comfort, aluminium
Suspension Fork
SR Suntour NVX30
Rear Shock
No
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Aluminium, with anti slip protection and reflector
Wheels
Front Hub
Shimano TX505, QR
Rear Hub
Shimano Nexus, 7-Speed
Rims
Schürmann CRAFT 21
Tires
Schwalbe Energizer Plus Performance, 55-622
Brakes
Brakes
disc brake
Cockpit
Stem
Aluminium, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Active Line, 36 V / 250 W / 40 Nm
Battery
Bosch PowerPack Li-Ion 36V
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.566 mm | 1.568 mm | 1.592 mm |
| Front Center | 722 mm | 726 mm | 731 mm | 741 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 85 mm | 78 mm | 75 mm | 83 mm |
| Stack | 677.8 mm | 682.9 mm | 694.8 mm | 718.2 mm |
| Reach | 421 mm | 436 mm | 443 mm | 451 mm |
| Top Tube Length | 615.4 mm | 631.8 mm | 642.2 mm | 651.6 mm |
| Seat Tube Angle | 79.9 ° | 79.9 ° | 79.9 ° | 79.9 ° |
| Head Tube Angle | 68 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 185 mm | 185 mm | 195 mm | 200 mm |
| Chainstay Length | 527 mm | 527 mm | 527 mm | 527 mm |
| Wheelbase | 1242 mm | 1246 mm | 1251 mm | 1261 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
IMAGE 1.B MOVE INTERNATIONAL is a Kalkhoff E Image model. Kalkhoff launched 59 e-bikes of this model so far. You can easily view all of the Kalkhoff E Image e-bikes models from 2023, here.
Model range prices
Kalkhoff IMAGE 1.B MOVE INTERNATIONAL 2023 is the cheapest e-bike model and costs 2918$. Kalkhoff IMAGE 5.B EXCITE+ ABS Diamond 2023 is the most expensive one and costs 6081$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Kalkhoff IMAGE 1.B MOVE INTERNATIONAL price was 2918$. Doing a quick comparison, we notice that IMAGE 1.B MOVE INTERNATIONAL price is 13.59% more expensive than the average cost of a Commuter e-bike.
IMAGE 1.B MOVE INTERNATIONAL components
Fork
The fork installed on this bike is the Suntour NVX model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the IMAGE 1.B MOVE INTERNATIONAL e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE 1.B MOVE INTERNATIONAL has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
IMAGE 1.B MOVE INTERNATIONAL comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
