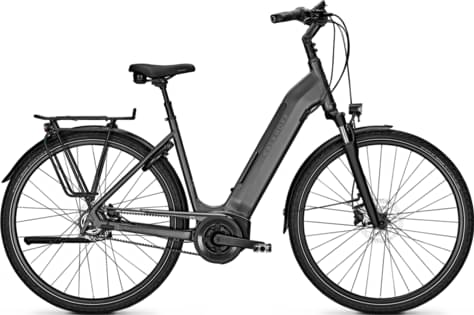

kalkhoff IMAGE 3.B EXCITE Wave 2021
2021 E-bike
Estimate price |
4,185$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive, IGH -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 0.1, aluminium
Suspension Fork
SR Suntour NEX E25 HLO, lockout
Drivetrain
Shift Levers
Shimano Nexus
Crank
aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
Gates Carbondrive CDX
Pedals
Comfort, aluminium
Brakes
Brakes
Shimano MT200, 2-piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
alloy, adjustable
Handlebar
Tour, Aluminium
Seat
Saddle
Selle Royal Essenza Plus
Seatpost
Patent, suspension
Motor & Battery
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Intuvia LCD, with control panel and walk assist
Charger
Bosch, 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XL | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.652 mm | 1.654 mm | 1.654 mm | 1.652 mm |
| Front Center | 656 mm | 628 mm | 638 mm | 647 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 61 mm | 61 mm | 61 mm | 60 mm |
| Stack | 674 mm | 645 mm | 655 mm | 664 mm |
| Reach | 408 mm | 390 mm | 396 mm | 402 mm |
| Top Tube Length | 408 mm | 587 mm | 596 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 190 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1128 mm | 1100 mm | 1110 mm | 1119 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 650 | 650 | 650 | 650 |
About this model
IMAGE 3.B EXCITE Wave is a Kalkhoff E Image model. Kalkhoff launched 59 e-bikes of this model so far. Take a sneak peek at all Kalkhoff E Image e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Kalkhoff IMAGE 3.B EXCITE Wave 2021 has a starting price of 3874$. Kalkhoff IMAGE 3.B ADVANCE Trapez 2021 on the other hand is the most expensive at 3891$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3874$. Comparing the average cost of a Commuter e-bike to this one, you will see that IMAGE 3.B EXCITE Wave price is 50.8% more expensive.
IMAGE 3.B EXCITE Wave components
Fork
This e-bike has the Suntour NEX fork installed. The fork’s travel is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The wheels on IMAGE 3.B EXCITE Wave are the type. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE 3.B EXCITE Wave has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
