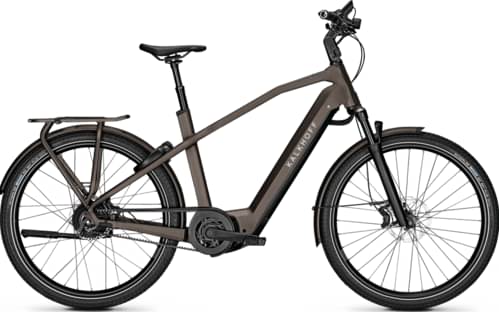

kalkhoff IMAGE 7.B EXCITE+ Diamond 2022
2022 E-bike
Estimate price |
6,422$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Front 75mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion 36 V -
Drivetrain Belt Drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Integrale 1.6, Aluminium
Suspension Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Drivetrain
Shift Levers
Enviolo Trekking
Crank
aluminium
Chain
Gates Carbondrive CDX
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Rodi TRYP35, with double eyelets
Brakes
Brakes
Tektro M535, 4-Piston, hydraulic disc brake
Disk Rotors
180
Cockpit
Stem
Concept EX, adjustable
Handlebar
Concept EX Ergo Riser,Concept EX City Riser
Seat
Saddle
Selle Royal Lookin Plus
Seatpost
Kind Shock, suspension dropper post
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
Bosch PowerTube Li-Ion 36 V
Remote
Bosch Kiox 300 colour display with walk assist
Charger
Bosch, 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.296 mm | 1.296 mm | 1.323 mm | 1.302 mm |
| Front Center | 764 mm | 764 mm | 772 mm | 780 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 635 mm | 635 mm | 650.9 mm | 650.9 mm |
| Reach | 490 mm | 490 mm | 491.95 mm | 500 mm |
| Top Tube Length | 624.6 mm | 624.6 mm | 630.2 mm | 638.3 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78.01 ° | 78.01 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 160 mm | 168.5 mm | 168.5 mm |
| Chainstay Length | 464 mm | 464 mm | 464 mm | 464 mm |
| Wheelbase | 1224 mm | 1224 mm | 1232 mm | 1240 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
IMAGE 7.B EXCITE+ Diamond is part of the Kalkhoff E Image model. Kalkhoff launched 59 e-bikes of this model so far. You can easily view all of the Kalkhoff E Image e-bikes models from 2022, here.
Model range prices
The most economical model, the Kalkhoff IMAGE 1.B MOVE 2022 has a starting price of 2653$. Kalkhoff IMAGE 7.B EXCITE+ Diamond 2022 on the other hand is the most expensive at 5945$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 5945$. Comparing this to the average Commuter e-bike price, we see that the price is 131.41% higher.
IMAGE 7.B EXCITE+ Diamond components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The IMAGE 7.B EXCITE+ Diamond 2022 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Kalkhoff IMAGE 7.B EXCITE+ Diamond has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
IMAGE 7.B EXCITE+ Diamond comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
