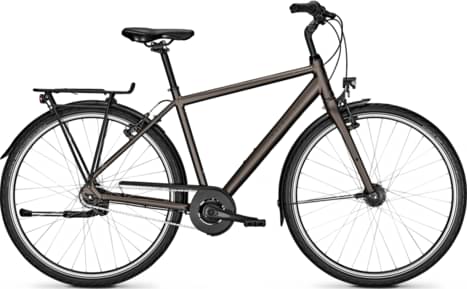

kalkhoff IMAGE LITE Diamond 2022
2022 Urban
Estimate price |
1,031$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trekking 0.5 V2, aluminium
Suspension Fork
Aluminium, rigid
Drivetrain
Shift Levers
Shimano Nexus
Crank
Prowheel
Chain
KMC Z1 EPT, anti-rust coating
Pedals
Comfort, with anti slip protection and reflector
Wheels
Rims
Schürmann ZXS, with eyelets
Brakes
Brakes
Shimano Alivio, V-Brake
Cockpit
Stem
alloy, adjustable
Handlebar
Aluminium, Comfort Riser
Seat
Saddle
Selle Royal Nuvola Unitec
Seatpost
Magix, Aluminium
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | SM | XL | MD |
|---|---|---|---|---|
| Stack Reach Ratio | 1.478 mm | 1.622 mm | 1.582 mm | 1.599 mm |
| Front Center | 644 mm | 655 mm | 654 mm | 670 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 64 mm | 69 mm | 63 mm | 69 mm |
| Stack | 606 mm | 644 mm | 644 mm | 654 mm |
| Reach | 410 mm | 397 mm | 407 mm | 409 mm |
| Top Tube Length | 595 mm | 600 mm | 610 mm | 615 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Angle | 71.5 ° | 70.5 ° | 71.5 ° | 70.5 ° |
| Head Tube Length | 180 mm | 220 mm | 220 mm | 230 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1103 mm | 1113 mm | 1113 mm | 1128 mm |
| Bottom Bracket Drop | 55 mm | 60 mm | 55 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
Model Overview
IMAGE LITE Diamond is a Kalkhoff Image model. Kalkhoff launched 6 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Kalkhoff IMAGE LITE Diamond 2022 is the most affordable bike of this model and has a price of 955$. On the other hand, Kalkhoff IMAGE XXL Wave 2022, is the most expensive and costs 1146$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
If you want to purchase a solid Commuter bike, it is important to know that the average cost is 762$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Kalkhoff released this model in 2022, its price was 955$. Comparing the average cost of a Commuter bike to this one, you will see that IMAGE LITE Diamond price is 25.33% more expensive.
Overview of components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
As for the wheels, Kalkhoff IMAGE LITE Diamond 2022, has a aluminum model. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The IMAGE LITE Diamond has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
