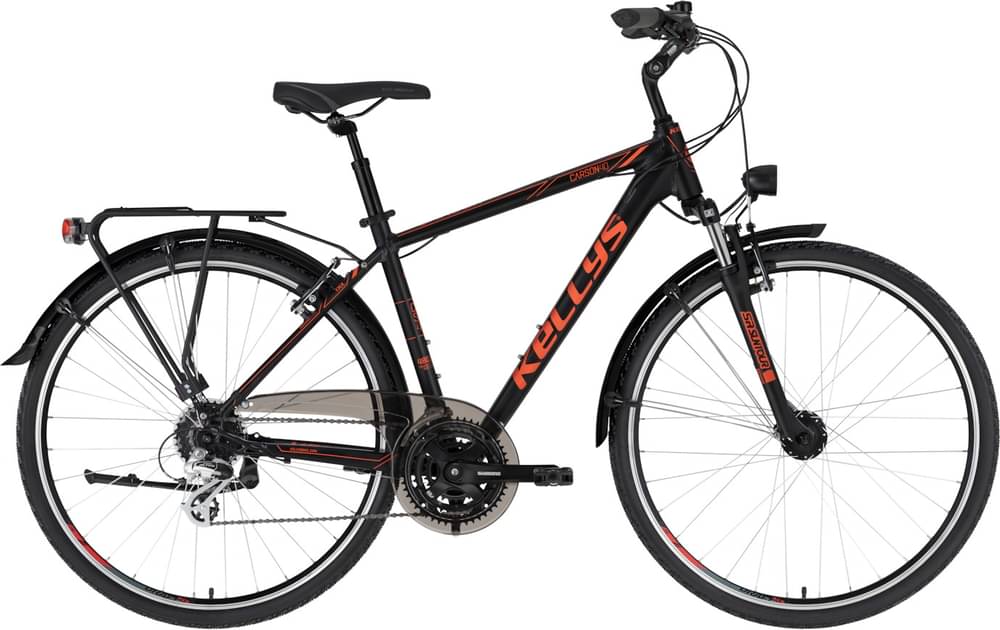

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork SunTour
-
Groupset Shimano, Tourney -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR M3010, 50mm, coil spring (threaded steerer)
Drivetrain
Shift Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cassette
SHIMANO CS-HG200-8 (12-32T)
Crank
SHIMANO TY301 (48x38x28T) - length 170mm (S), 175mm (M - XL)
Bottom Bracket
cartridge (120mm)
Chain
KMC Z8 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rear Hub
SHIMANO Dynamo Nexus C3000 / alloy (32 holes)
Rims
KLS Draft 622x21 (32 holes / eyelets)
Spokes
steel
Tires
INNOVA 42-622 (700x42C)
Brakes
Brakes
APSE V-brake
Brake Levers
SHIMANO ST-EF500-8 EZ-fire Plus
Cockpit
Stem
KALLOY adjustable - diam 25.4mm / bar bore 25.4mm / length 90mm (S), 100mm (M - XL)
Handlebar
steel RiseBar - diam 25.4mm / rise 35mm / width 630mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
KLS CrossLine
Seatpost
KALLOY suspension - diam 30.9mm / length 300mm (S), 350mm (M - XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CARSON 40 completes the Kellys Carson model. There are 18 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, you could also get a good Commuter bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The SunTour is included from the factory. It has a travel distance of 50mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Kellys CARSON 40 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
