Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX-E25 NLO, 63mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Deore XT T8000 (direct mount)
Shift Levers
SHIMANO Deore SL-M6000 Rapidfire Plus
Cassette
SHIMANO CS-HG50-10 (11-36T)
Crank
SHIMANO T521 Hollowtech Octalink (48x36x26T) - length 175mm
Bottom Bracket
SHIMANO BB-ES300 Octalink
Chain
KMC X10 EL (114 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
steel
Tires
MICHELIN Protek BR 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 105mm
Handlebar
alloy RiseBar - diam 31.8mm / width 640mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Lookin Visual Royalgel
Seatpost
KALLOY suspension - diam 30.9mm / length 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

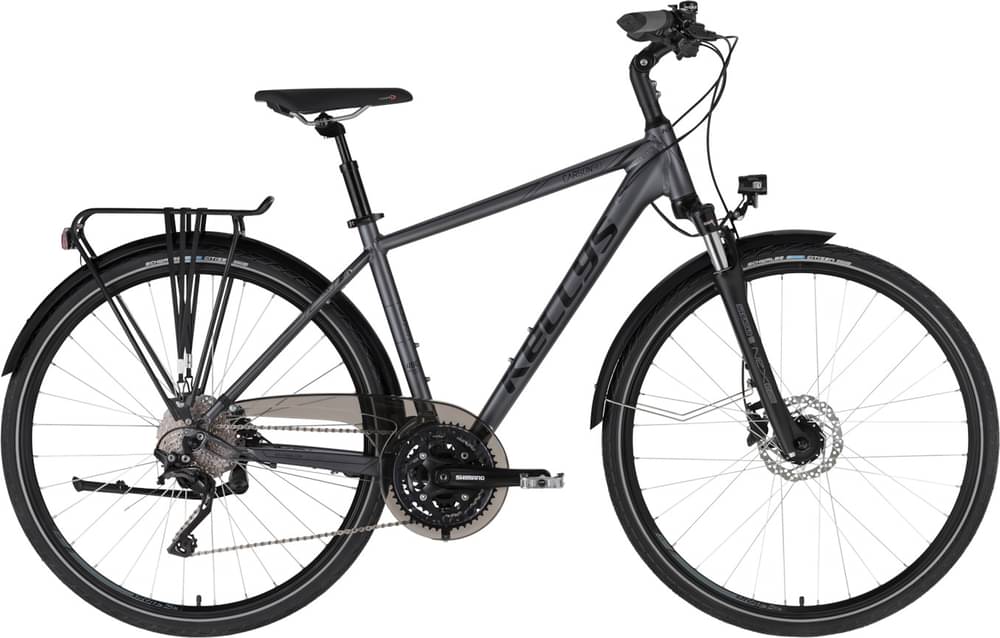

CARSON 90 is part of the Kellys Carson model. There are 18 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Kellys CARSON 90 2021 bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Kellys CARSON 90 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys CARSON 90 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
CARSON 90 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.
