Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Tour Profile - internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX-E25 NLO, 63mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Deore XT T8000 (direct mount)
Shift Levers
SHIMANO Deore SL-M6000 Rapidfire Plus
Cassette
SHIMANO CS-HG50-10 (11-36T)
Crank
SHIMANO T521 Hollowtech Octalink (48x36x26T) - length 175mm
Bottom Bracket
SHIMANO BB-ES300 Octalink
Chain
KMC X10 EL (114 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO Dynamo 3D37 / SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
steel
Tires
MICHELIN Protek BR 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 105mm
Handlebar
alloy RiseBar - diam 31.8mm / width 640mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Lookin Visual Royalgel
Seatpost
KALLOY suspension - diam 30.9mm / length 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

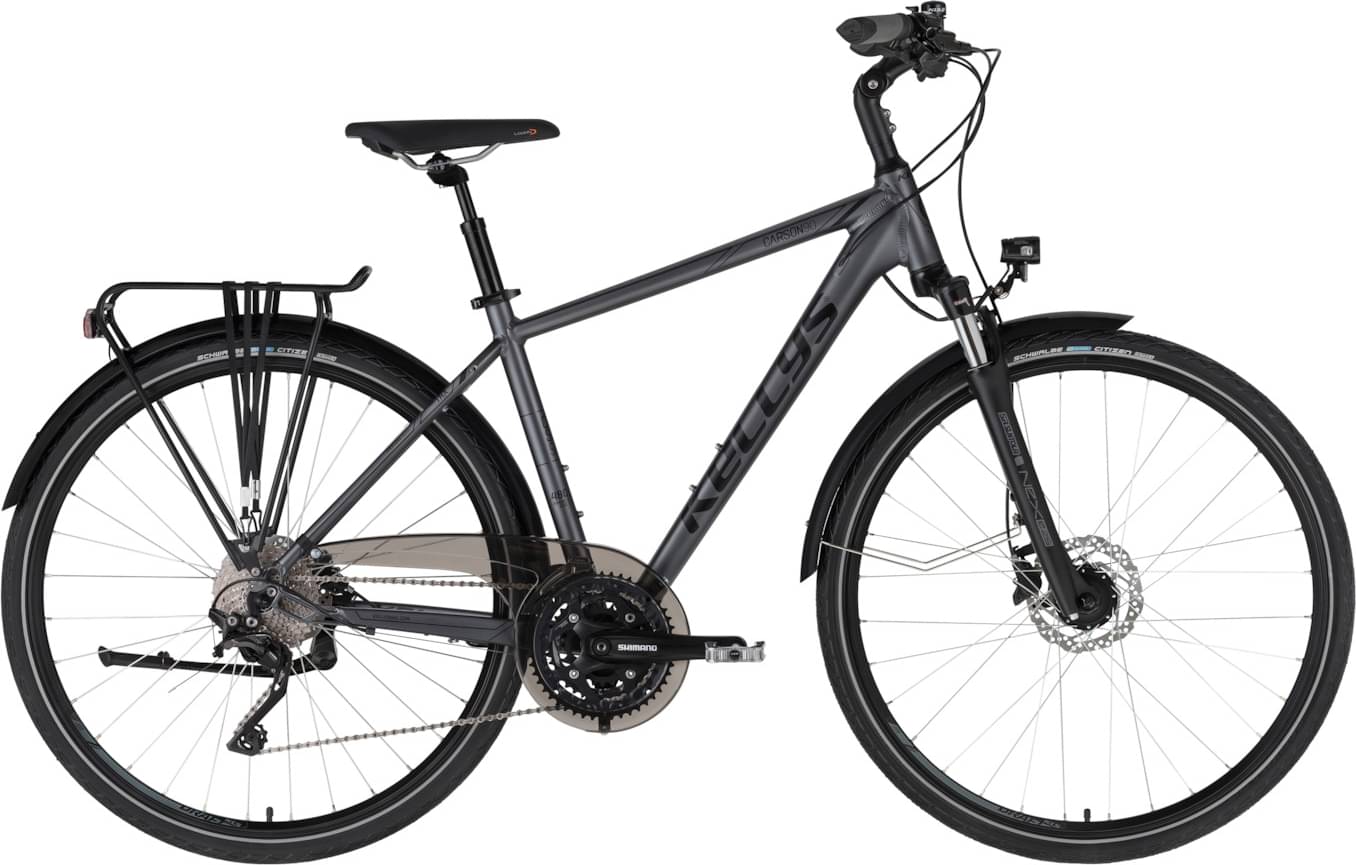

Model Overview
CARSON 90 is part of the Kellys Carson model. Kellys released 18 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter bikes average price
According to our calculations, the average cost of a Commuter bike that is reliable is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
CARSON 90 components
Fork
This bike has the Suntour NEX fork installed. The fork’s travel is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Kellys CARSON 90 2022, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys CARSON 90 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
