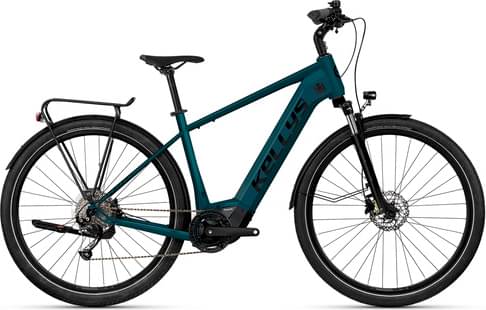

Kellys E-CARSON 30 P MAGIC 725Wh 2023

2023 E-bike
Estimate price | 3,554$
E-bike
Open compare Use advisor
  • Kellys E-CARSON 30 P MAGIC 725Wh 2023 - kellys-e-carson-30-p-magic-725wh-2023.jpeg
  • Kellys E-CARSON 30 P MAGIC 725Wh 2023 - kellys-e-carson-30-p-magic-725wh-2023-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 700c
  • Travel Front 100mm
  • Fork Suntour NVX
  • Groupset CUES
  • Suspension Hardtail
  • Motor Panasonic 95Nm mid-drive
  • Battery KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5“ tapered HT

Suspension Fork

SR SUNTOUR NVX 30 NLO DS (29"), 100 mm, coil spring

Drivetrain

Rear Derailleur

SHIMANO Cues U4000 (direct mount)

Shift Levers

SHIMANO Cues SL-U4000-9 Rapidfire Plus

Cassette

SHIMANO Linkglide CS-LG300-9 (11-41T)

Crank

MIRANDA Delta (36T) - length 170 mm

Chain

SHIMANO Linkglide CN-LG500 (122 links)

Pedals

plastic

Wheels

Front Hub

SHIMANO TX505 Disc Center Lock (32 holes)

Rear Hub

SHIMANO TX505 Disc Center Lock (32 holes)

Rims

KLS Draft Disc 622x21 (32 holes)

Spokes

stainless steel black

Tires

IMPAC Bigpac 55-622 (28"x2.15) TwinSkin or KENDA Kwick Nine (29"x2.0) - ReflectiveLine

Brakes

Brakes

SHIMANO MT200 hydraulic disc

Brake Levers

SHIMANO BL-MT200

Cockpit

Stem

PROMAX a-head adjustable - diam 28.6 mm / bar bore 31.8 mm / length 105 mm

Handlebar

KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 700 mm

Grips

KLS Wave 2Density ergonomic

Seat

Saddle

SELLE ROYAL Vivo

Seatpost

KLS Active - diam 30.9 mm / length 350 mm

Motor & Battery

Motor

PANASONIC GX Ultimate, 95 Nm, 36 V

Battery

KELLYS Re-Charge V10 Li-ion internal removable 725 Wh / capacity 20 Ah, powered by BMZ

Fit data

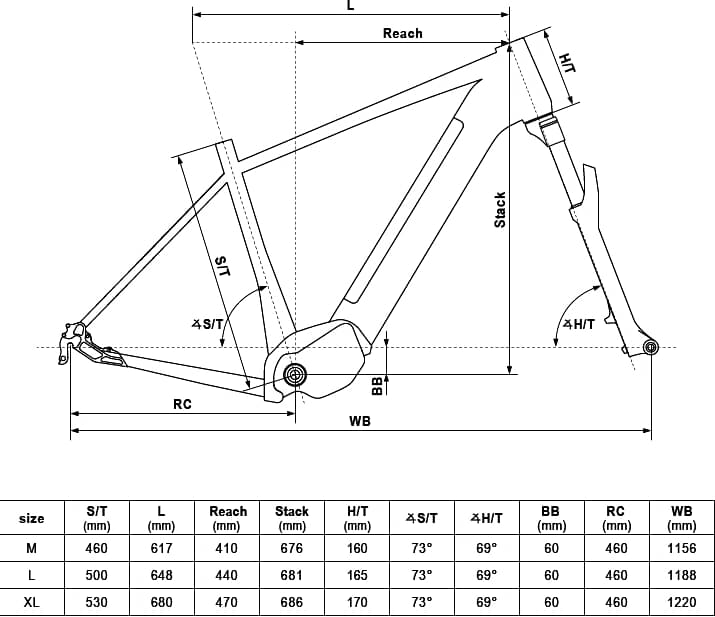

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Wheels700700700
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm

Model Overview

E-CARSON 30 P MAGIC 725Wh belongs to the Kellys E E Carson model. Kellys released 16 e-bikes variations of this model so far. You can easily view all of the Kellys E E Carson e-bikes models from 2023, here.

Model range prices

Kellys E-CARSON 10 SH 504Wh 2023 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, Kellys E-CARSON 90 P ATB 725Wh 2023, is the most expensive and costs 4246$.

Safety

Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.

Average price for Commuter e-bikes

According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.

Furthermore, this bike was made available in 2023 for 3290$. Doing a quick comparison, we notice that E-CARSON 30 P MAGIC 725Wh price is 28.07% more expensive than the average cost of a Commuter e-bike.

E-CARSON 30 P MAGIC 725Wh components

Fork

Kellys E-CARSON 30 P MAGIC 725Wh 2023 e-bike is equipped with the Suntour NVX fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.

Wheels

The wheels on E-CARSON 30 P MAGIC 725Wh are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.

Brakes

Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.

Sizes

E-CARSON 30 P MAGIC 725Wh comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
