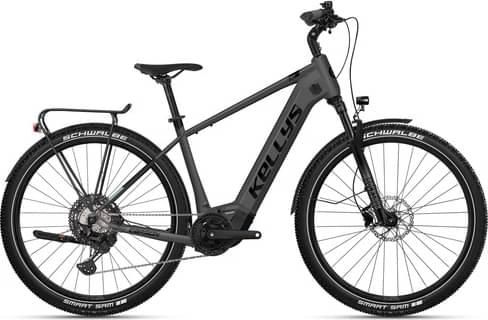

Kellys E-CARSON 90 P ATB 725Wh 2022
2022 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Panasonic 90Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS E-CARSON R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU
Suspension Fork
ROCK SHOX Recon GOLD RL (29) Boost, 100mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT Linkglide M8130 (direct mount)
Shift Levers
SHIMANO Deore XT Linkglide SL-M8130-R Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO Linkglide CS-LG600-11 (11-50T)
Crank
SAMOX (38T) - length 170mm
Chain
SHIMANO Linkglide CN-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B / Alivio M4050 Disc Center Lock (32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Smart Sam Performance 57-622 (29x2.25) ADDIX, ReflectiveLine
Brakes
Brakes
SHIMANO MT410 Hydraulic Disc
Brake Levers
SHIMANO BL-MT4100
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 105mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 90Nm, 36V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ
Fit data

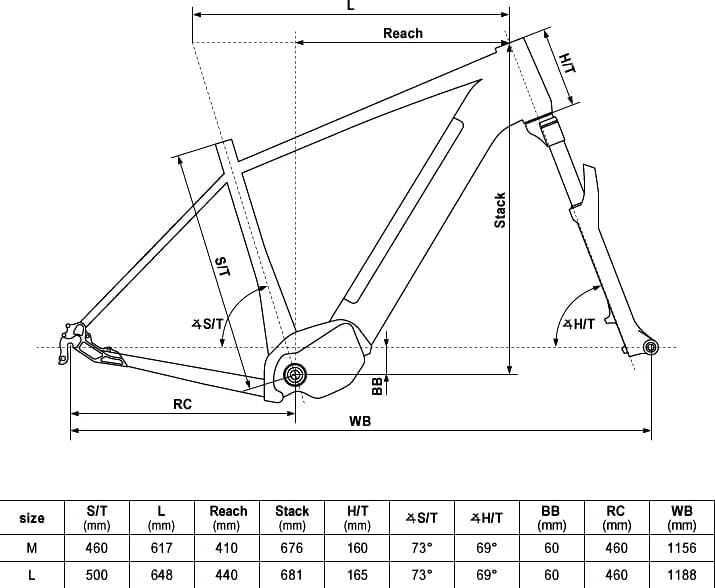

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
About this model
E-CARSON 90 P ATB 725Wh is a Kellys E E Carson model. 16 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Kellys E-CARSON 10 SH 504Wh 2022 is the most affordable e-bike of this model and has a price of 2760$. On the other hand, Kellys E-CARSON 90 P ATB 725Wh 2022, is the most expensive and costs 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 4246$. Doing a quick comparison, we notice that E-CARSON 90 P ATB 725Wh price is 65.28% higher than the average cost of a Commuter e-bike.
E-CARSON 90 P ATB 725Wh components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on E-CARSON 90 P ATB 725Wh are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kellys E-CARSON 90 P ATB 725Wh is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
