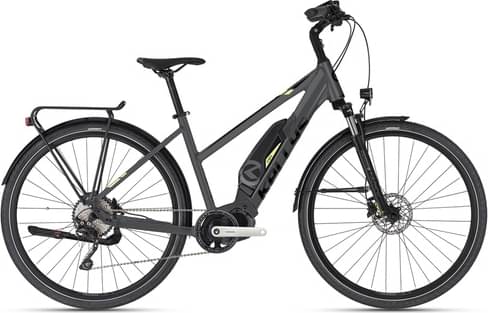

Kellys E-CRISTY 10 SH 504Wh 2022
2022 E-bike
Estimate price |
3,024$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8010, 504Wh / capacity 14Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS E-CRISTY R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT / Made in EU
Suspension Fork
SR SUNTOUR NVX30 NLO (29), 100mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount) or microSHIFT Marvo M46
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus or microSHIFT Marvo M859 Xpress Shifter
Cassette
SHIMANO CS-HG201-9 (11-36T) or microSHIFT Marvo CS-H092 (11-36T)
Crank
SHIMANO E5000 (38T) - length 170mm
Chain
KMC e9S (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Protec BR alebo MITAS Flash 47-622 (28x1.75) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 85mm (S), 105mm (M - L)
Handlebar
KALLOY RiseBar - diam 31.8mm / width 640mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V
Battery
SHIMANO BT-E8010, 504Wh / capacity 14Ah
Fit data

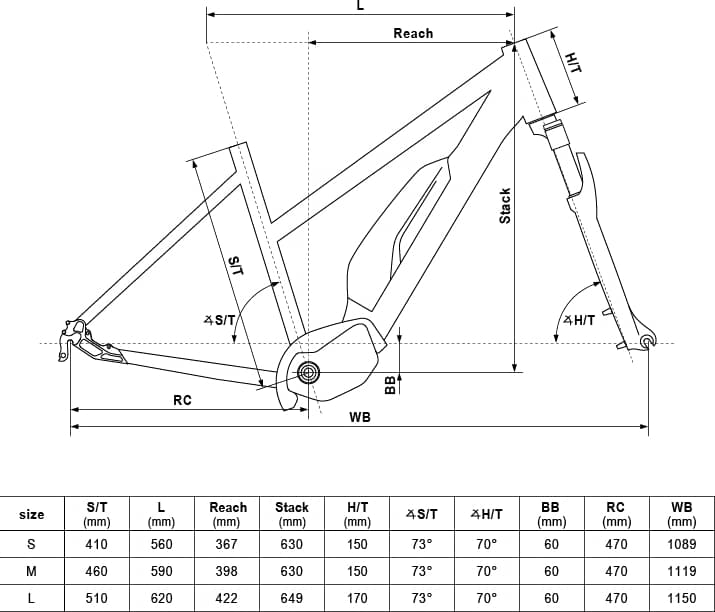

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
E-CRISTY 10 SH 504Wh belongs to the Kellys E E Cristy model. Kellys released 16 e-bikes variations of this model so far. Take a sneak peek at all Kellys E E Cristy e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Kellys E-CRISTY 10 SH 504Wh 2022 has a starting price of 2760$. Kellys E-CRISTY 90 P ATB 725Wh 2022 on the other hand is the most expensive at 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Kellys released this model in 2022, its price was 2760$. Comparing the average cost of a Commuter e-bike to this one, you will see that E-CRISTY 10 SH 504Wh price is 7.43% more expensive.
Overview of components
Fork
Kellys E-CRISTY 10 SH 504Wh 2022 e-bike is equipped with the Suntour NVX fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the E-CRISTY 10 SH 504Wh model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-CRISTY 10 SH 504Wh comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
