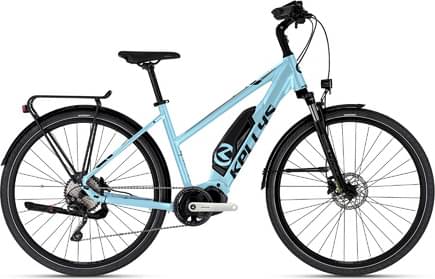

Kellys E-CRISTY 10 SH 630Wh 2023
2023 E-bike
Estimate price |
2,981$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork Suntour NVX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8016, 630Wh / capacity 17.5Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS e-FRAME Tour Lady Profile Aluminium alloy, semi-integrated battery, tapered HT, integrated kickstand mount
Suspension Fork
SR SUNTOUR NVX 30 NLO DS (29), 80mm, coil spring
Drivetrain
Rear Derailleur
New SHIMANO Groupset 1x9
Shift Levers
New SHIMANO Groupset 1x9
Cassette
New SHIMANO Groupset 1x9
Crank
SHIMANO E5000 (38T) - length 175mm
Chain
SHIMANO Linkglide CS-LG500 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
IMPAC Bigpac 55-622 (28x2.15) TwinSkin, ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 85mm
Handlebar
KALLOY RiseBar - diam 31.8mm / width 640mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V
Battery
SHIMANO BT-E8016, 630Wh / capacity 17.5Ah
Fit data

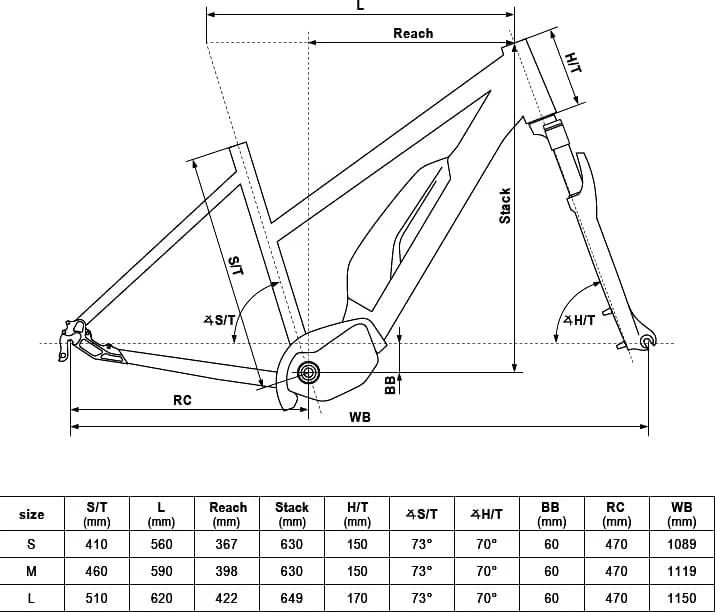

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
E-CRISTY 10 SH 630Wh belongs to the Kellys E E Cristy model. 16 e-bikes variations carry this model name so far. You can easily view all of the Kellys E E Cristy e-bikes models from 2023, here.
Model range prices
The most economical model, the Kellys E-CRISTY 10 SH 504Wh 2023 has a starting price of 2653$. Kellys E-CRISTY 90 P ATB 725Wh 2023 on the other hand is the most expensive at 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 2760$. Comparing this to the average Commuter e-bike price, we see that the price is 7.43% more expensive.
Overview of components
Fork
This e-bike has the Suntour NVX fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The E-CRISTY 10 SH 630Wh 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-CRISTY 10 SH 630Wh comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Kellys E-CRISTY 10 SH 630Wh e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
