Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Altus, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery SHIMANO BT-E8010, 504Wh / capacity 14Ah -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS e-FRAME City Aluminium alloy monotube, semi-integrated battery, tapered HT, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX-E25 NLO, 63mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000-R Rapidfire Plus
Cassette
SHIMANO SC-HG201-9 (11-36T)
Crank
SHIMANO E5000 (38T) - length 170mm
Chain
KMC Z1 (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Protec BR 47-622 (28x1.75) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
PROMAX a-head adjustable - diam 28.6mm / bar bore 31.8mm / length 85mm (S), 105mm (M)
Handlebar
KALLOY RiseBar - diam 31.8mm / width 640mm
Grips
KLS Wave 2Density ergonomic
Seat
Saddle
SELLE ROYAL Freedom Royalgel
Seatpost
KALLOY suspension - diam 30.9mm / length 300mm (S), 350mm (M)
Motor & Battery
Motor
SHIMANO STEPS E5000, 36V
Battery
SHIMANO BT-E8010, 504Wh / capacity 14Ah
Fit data

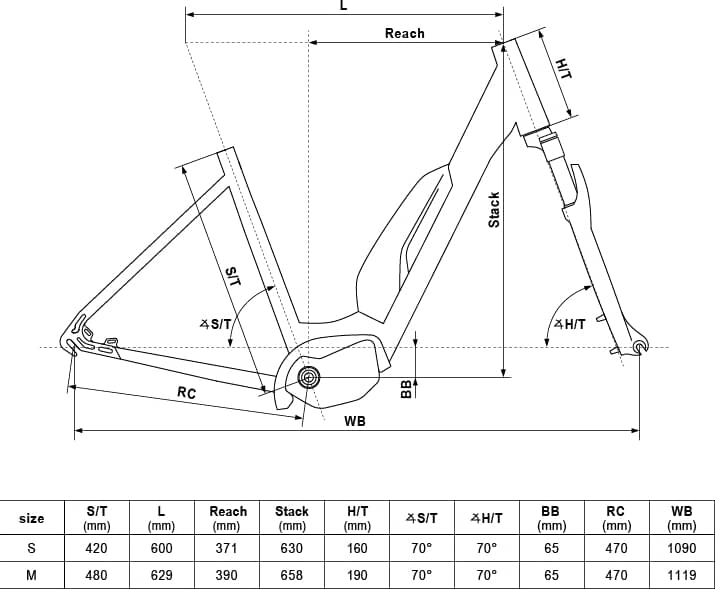

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 700 | 700 |
About this model
ESTIMA 10 504Wh is part of the Kellys E Estima model. Kellys released 8 e-bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Kellys ESTIMA 10 SH 504Wh 2022 has a starting price of 2760$. Kellys ESTIMA 40 SH 504Wh 2022 on the other hand is the most expensive at 2972$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for General Urban e-bikes
If you want to purchase a solid General Urban e-bike, it is important to know that the average cost is 2098$. However, even if your budget is less than the average, you might still be able to get a top-quality General Urban e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Kellys ESTIMA 10 504Wh 2022 e-bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on ESTIMA 10 504Wh are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys ESTIMA 10 504Wh has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
