Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148mm Boost thru axle
Suspension Fork
ROCK SHOX Recon Silver RL (29) Boost, 100mm, Solo Air / Motion Control / OneLoc Remote Lockout / Maxle Lite 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore (021) M6100 (direct mount)
Shift Levers
SHIMANO Deore (021) SL-M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO (021) CS-M6100-12 (10-51T)
Crank
SAMOX (34T) - length 170mm (S), 175mm (M - XL)
Bottom Bracket
SAMOX cartridge
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rims
KLS Cartel Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Country Race´r 54-622 (29x2.10)
Brakes
Brakes
SHIMANO Deore (021) MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore (021) BL-M4100
Disk Rotors
180mm front / 160mm rear
Cockpit
Stem
KLS Advanced - diam 28.6mm / bar bore 31.8mm / 7° / length 80mm (S - M), 100mm (L - XL)
Handlebar
KLS Advanced FlatBar - diam 31.8mm / width 720mm
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Avenger
Seatpost
KLS Active - diam 30.9mm / length 350mm (S), 400mm (M - XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

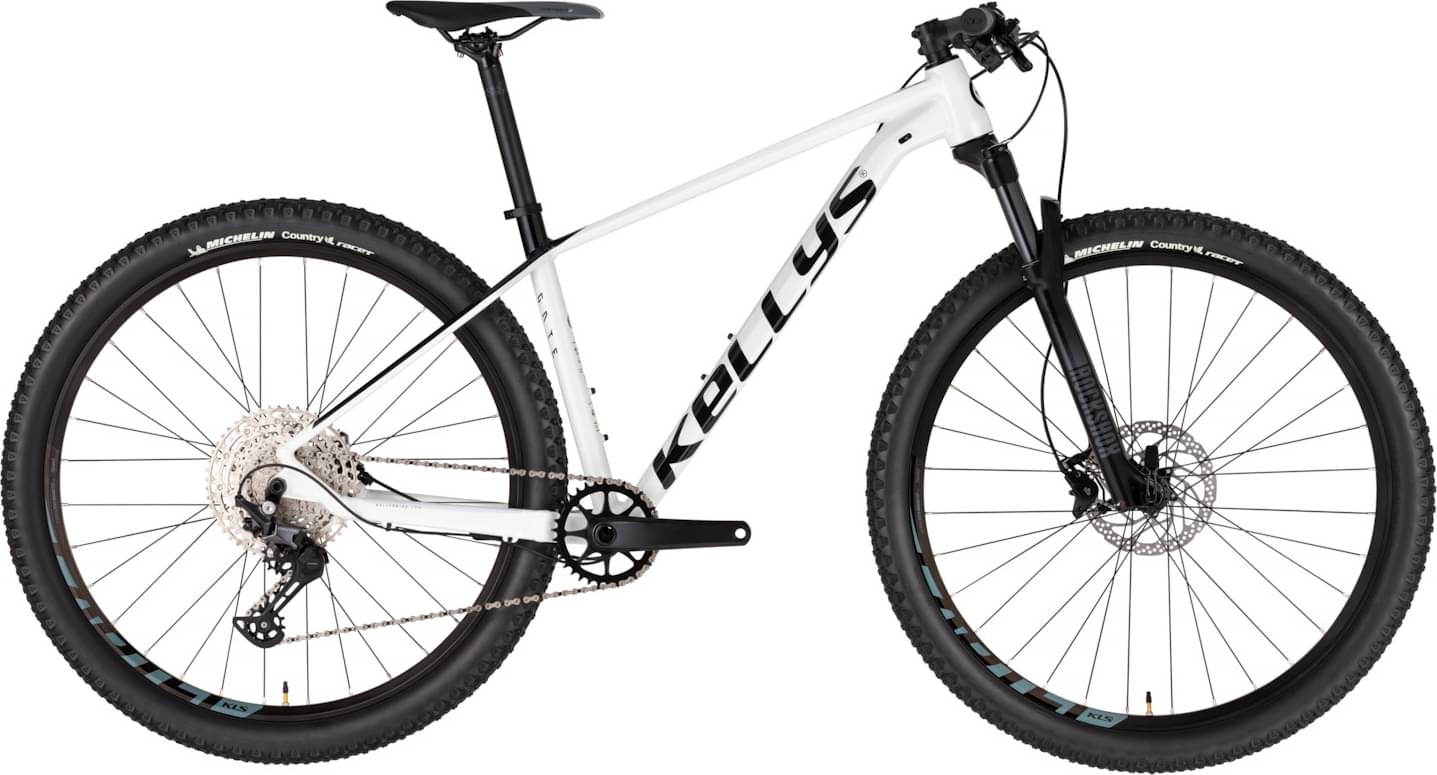

Model Overview
GATE 30 29″ completes the Kellys Gate model. 12 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
GATE 30 29″ components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the GATE 30 29″ model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The GATE 30 29″ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
GATE 30 29″ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
