Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148mm Boost thru axle
Suspension Fork
ROCK SHOX Recon GOLD RL (29) Boost, 100mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO (021) CS-M6100-12 (10-51T)
Crank
SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170mm (S), 175mm (M - XL)
Bottom Bracket
SRAM DUB PressFit
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rims
KLS Cartel Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Country Race´r 54-622 (29x2.10)
Brakes
Brakes
SHIMANO Deore (021) MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore (021) BL-M4100
Disk Rotors
180mm front / 160mm rear
Cockpit
Stem
KLS Advanced - diam 28.6mm / bar bore 31.8mm / 7° / length 80mm (S - M), 100mm (L - XL)
Handlebar
KLS Advanced FlatBar - diam 31.8mm / width 720mm
Grips
KLS Poison OneLockon
Seat
Saddle
KLS Avenger
Seatpost
KLS Active - diam 30.9mm / length 350mm (S), 400mm (M - XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

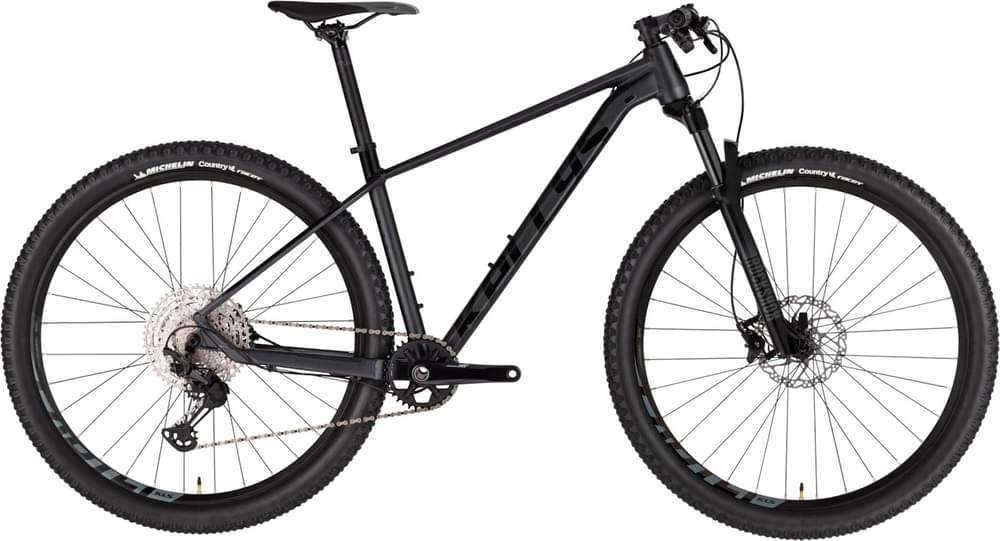

GATE 70 29″ is part of the Kellys Gate model. Kellys launched 12 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the GATE 70 29″ model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys GATE 70 29″ has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
GATE 70 29″ comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
