Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148mm Boost thru axle
Suspension Fork
ROCK SHOX Recon GOLD RL (29) Boost, 100mm, DebonAir / Motion Control / OneLoc Remote Lockout / Maxle Lite 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore XT M8100 (direct mount)
Shift Levers
SHIMANO SLX SL-M7100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO (021) CS-M6100-12 (10-51T)
Crank
SHIMANO Deore XT M8100-1 Hollowtech II (34T) - length 170mm (S), 175mm (M - L)
Bottom Bracket
SHIMANO BB52
Chain
KMC X12 (114 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / MT510-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub
SHIMANO MT400-B / MT510-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rims
KLS Cartel Disc 622x21 (32 holes)
Spokes
SAPIM - stainless steel black
Tires
SCHWALBE Smart Sam Performance 57-622 (29x2.25) ADDIX
Brakes
Brakes
SHIMANO Deore (021) MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore (021) BL-M4100
Disk Rotors
180mm front / 160mm rear
Cockpit
Stem
KLS Advanced - diam 28.6mm / bar bore 31.8mm / 7° / length 80mm (S - M), 100mm (L)
Handlebar
KLS Advanced FlatBar - diam 31.8mm / width 720mm
Grips
KLS Poison OneLockon
Seat
Saddle
fi´zi:k Taiga S-alloy rails
Seatpost
KS E20-I Remote Telescopic - diam 30.9mm / length 485mm, travel 125mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

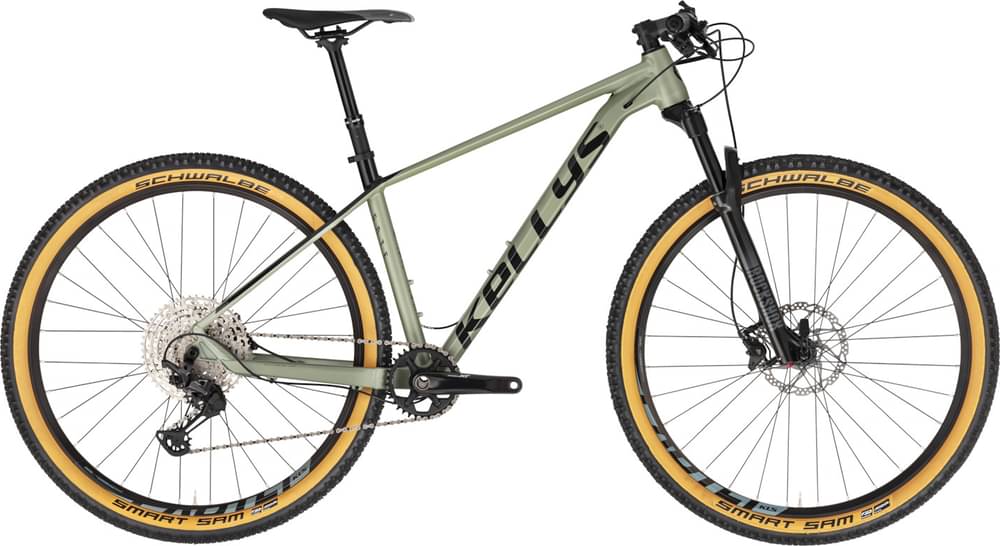

GATE 90 29″ completes the Kellys Gate model. Kellys launched 12 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The GATE 90 29″ comes factory-installed with the RockShox Recon Gold RL fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Kellys GATE 90 29″ 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The GATE 90 29″ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the GATE 90 29″. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
