Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NEX HLO, 63mm, coil spring
Drivetrain
Rear Derailleur
SHIMANO Acera M3000 (direct mount)
Shift Levers
SHIMANO ST-EF505-9 EZ-fire Plus
Cassette
SHIMANO CS-HG200-9 or DTS-9 (11-34T)
Crank
SR SUNTOUR XCM (48x36x26T) - length 170mm (S), 175mm (M - XL)
Bottom Bracket
cartridge (113mm)
Chain
KMC X9 (114 links)
Pedals
alloy
Wheels
Front Hub
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
alloy / SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
stainless steel black
Tires
INNOVA 44-622 (700x42C)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO ST-EF505-9 EZ-fire Plus
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
KLS CRX 70 adjustable - diam 28.6mm / bar bore 31.8mm / length 95mm (S - L), 110mm (XL)
Handlebar
KLS CRX 70 RiseBar - diam 31.8mm / rise 25mm / width 640mm (S - M), 660mm (L - XL)
Grips
KLS Token 2Density
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 27.2mm / length 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

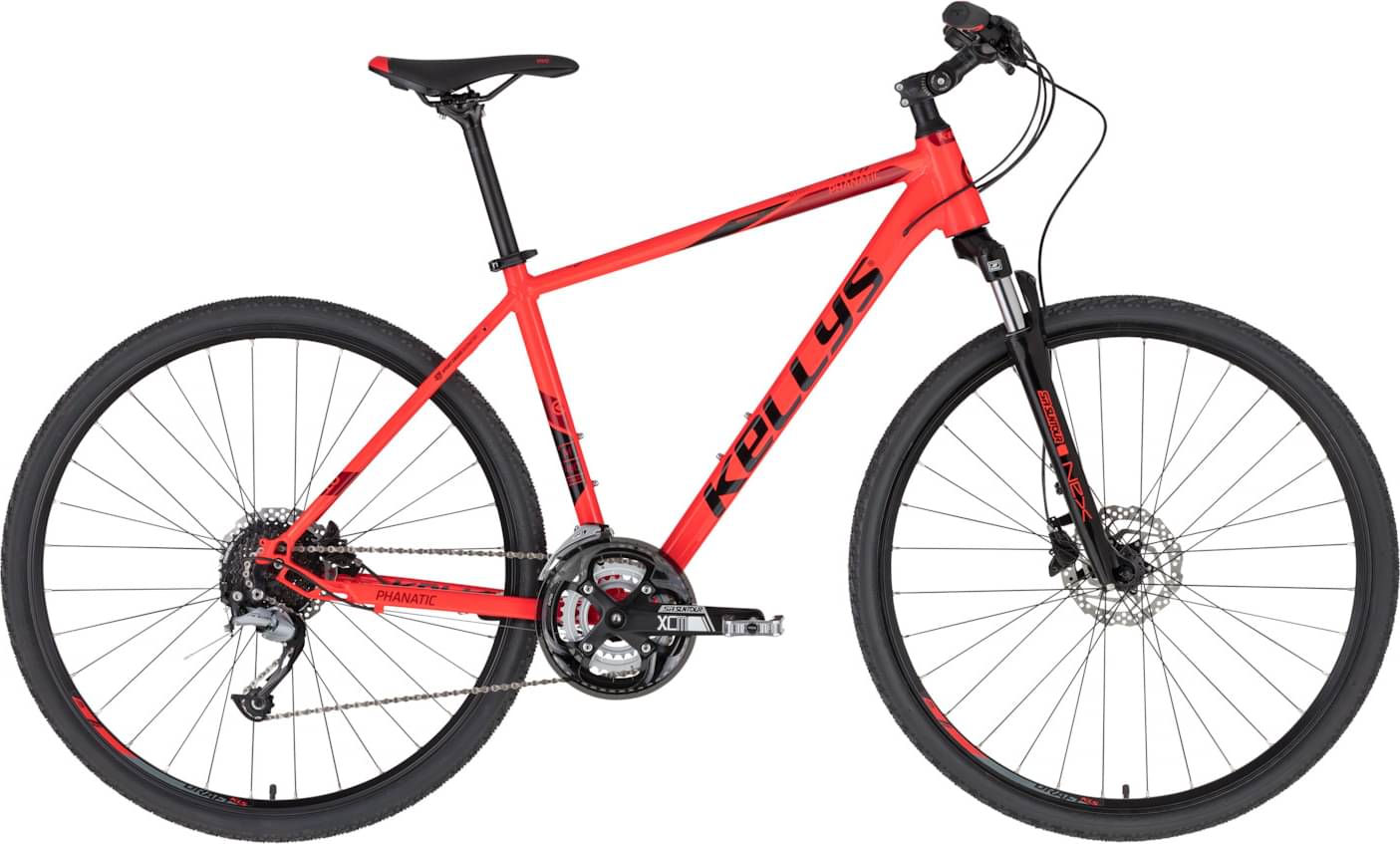

PHANATIC 10 belongs to the Kellys Phanatic model. Kellys released 19 bikes variations of this model so far. You can easily view all of the Kellys Phanatic bikes models from 2022, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid bikes
If you want to purchase a solid Hybrid bike, it is important to know that the average cost is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
PHANATIC 10 components
Fork
Kellys PHANATIC 10 2022 bike is equipped with the Suntour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on PHANATIC 10 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kellys PHANATIC 10 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
