Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 75mm -
Fork SunTour
-
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Crossforce Lite - tapered HT, internal routing, integrated kickstand mount
Suspension Fork
SR SUNTOUR NVX30 HLO, 75mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Alivio M4000 (direct mount)
Shift Levers
SHIMANO Alivio SL-M4000 Rapidfire Plus
Cassette
SHIMANO CS-HG300-9 (11-34T)
Crank
SHIMANO Acera T3010 (48x36x26T) - length 175mm
Bottom Bracket
cartridge (124.5mm)
Chain
KMC X9 (114 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes / eyelets)
Spokes
stainless steel black
Tires
MICHELIN Protek Cross 42-622 (700x40C) ReflectiveLine
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
KLS CRX 70 adjustable - diam 28.6mm / bar bore 31.8mm / length 95mm
Handlebar
KLS CRX 70 RiseBar - diam 31.8mm / rise 25mm / width 640mm (M), 660mm (L)
Grips
KLS Token 2Density
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 27.2mm / length 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
Model Overview

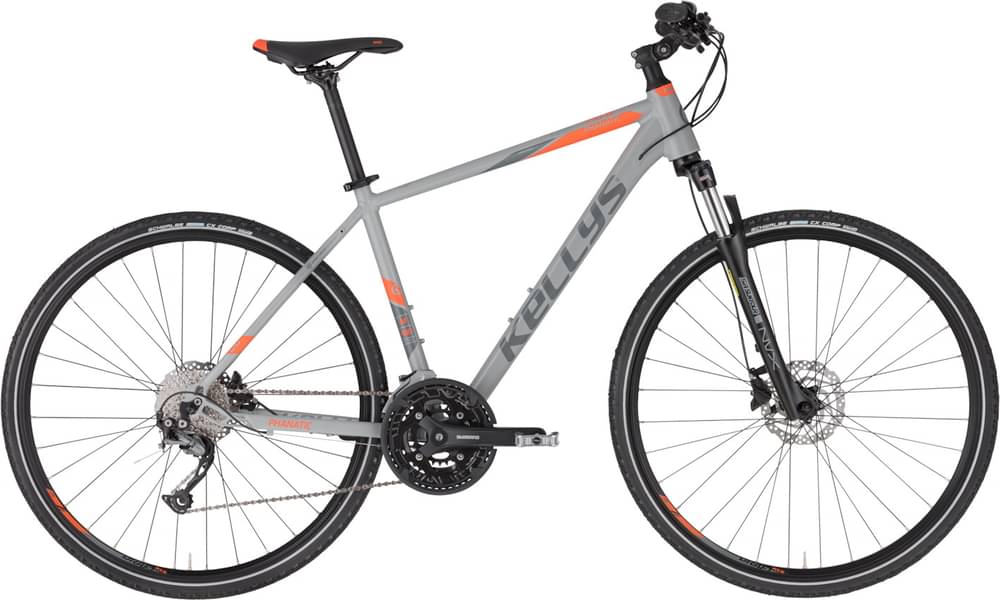

PHANATIC 30 is a Kellys Phanatic model. There are 19 bikes that carry this model name. Take a sneak peek at all Kellys Phanatic bikes models from 2021, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid bikes average price
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the SunTour fork installed. The fork’s travel is 75mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the PHANATIC 30 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys PHANATIC 30 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
