Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Gravel Concept - Aluminium alloy Disc, flat mount, tapered HT, internal routing, 12x142mm thru axle
Suspension Fork
KELLYS Carbon Disc - 1.5 tapered steerer, flat mount disc brake, 12x100mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Claris R2000 (direct mount)
Shift Levers
SHIMANO Claris ST-R2000 Dual Control
Cassette
SHIMANO CS-HG50-8 (11-32T)
Crank
SHIMANO Claris R2000 (50x34T) - length 170mm (S - M), 175mm (L)
Bottom Bracket
SHIMANO BB-RS500
Chain
KMC Z8 (110 links)
Wheels
Front Hub
NOVATEC Disc (32 holes)
Rear Hub
NOVATEC Disc (32 holes)
Rims
KELLYS Grind Disc 622x17 (32 holes / eyelets)
Spokes
stainless steel black
Tires
SCHWALBE Smart Sam Performance 42-622 (700x40C) ADDIX
Brakes
Brakes
TEKTRO Spyre Mechanical Disc
Brake Levers
SHIMANO Claris ST-2000 Dual Control
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
KLS Active Road - diam 28.6mm / bar bore 31.8mm / 6° / length 90mm (S), 100mm (M), 110mm (L)
Handlebar
GravelBar - diam 31.8mm / width 400mm (S), 420mm (M), 440mm (L)
Grips
KLS bar tape
Seat
Saddle
KLS SlipStream cr-mo rail
Seatpost
KLS Active Road - diam 30.9mm / length 350mm (S - M), 400mm (L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

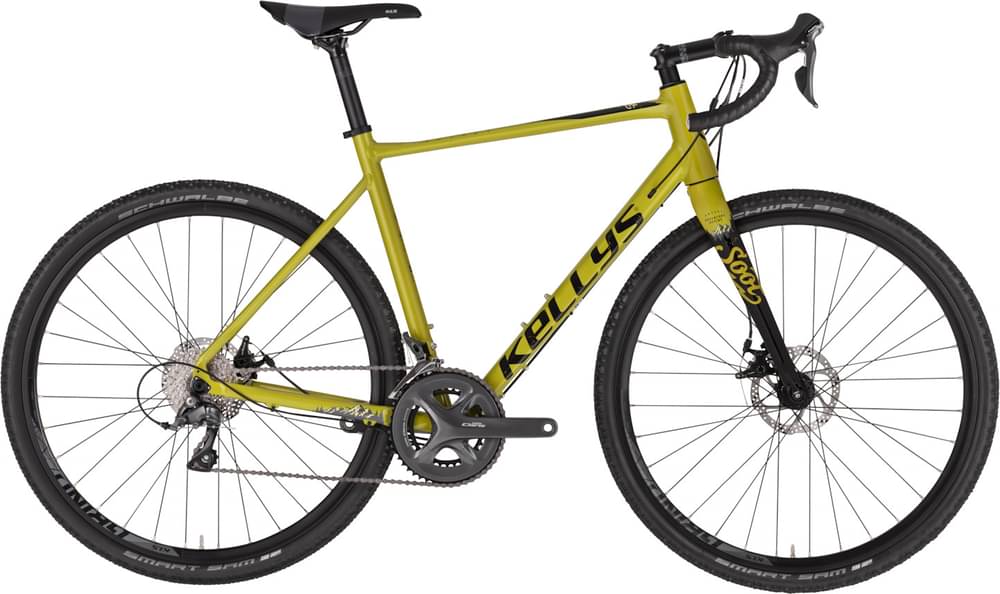

SOOT 30 is a Kellys Soot model. Kellys launched 16 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 11.08 kg (24.43 lbs), the SOOT 30 model is much heavier than average. In conclusion, the average Gravel bike weighs 36.29% less than SOOT 30.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the SOOT 30 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kellys SOOT 30 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Kellys SOOT 30 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
