Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Altus, Alivio -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS Alutec RRC 27.5 - Race Ready Concept
Suspension Fork
SR SUNTOUR XCM HLO (27.5), 100mm, coil / Speed Lockout
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2010-9 Rapidfire Plus
Cassette
SHIMANO CS-HG200-9 (11-34T)
Crank
SHIMANO Alivio MT101-2 (36x22T) - length 170mm (S), 175mm (M)
Bottom Bracket
cartridge (122mm)
Chain
KMC X9 (108 links)
Pedals
alloy
Wheels
Front Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rear Hub
SHIMANO TX505 Disc Center Lock (32 holes)
Rims
KLS Draft Disc 584x21 (32 holes)
Spokes
steel
Tires
IMPAC Ridgepac 54-584 (27.5x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
160mm front / 160mm rear
Cockpit
Stem
KLS Active - diam 28.6mm / bar bore 31.8mm / 8° / length 75mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 660mm (S), 680mm (M)
Grips
KLS Advancer 2Density
Seat
Saddle
KLS Sentinel 2
Seatpost
KLS Active - diam 30.9mm / length 300mm (S - M)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Wheels | 27" | 27" |
About this model

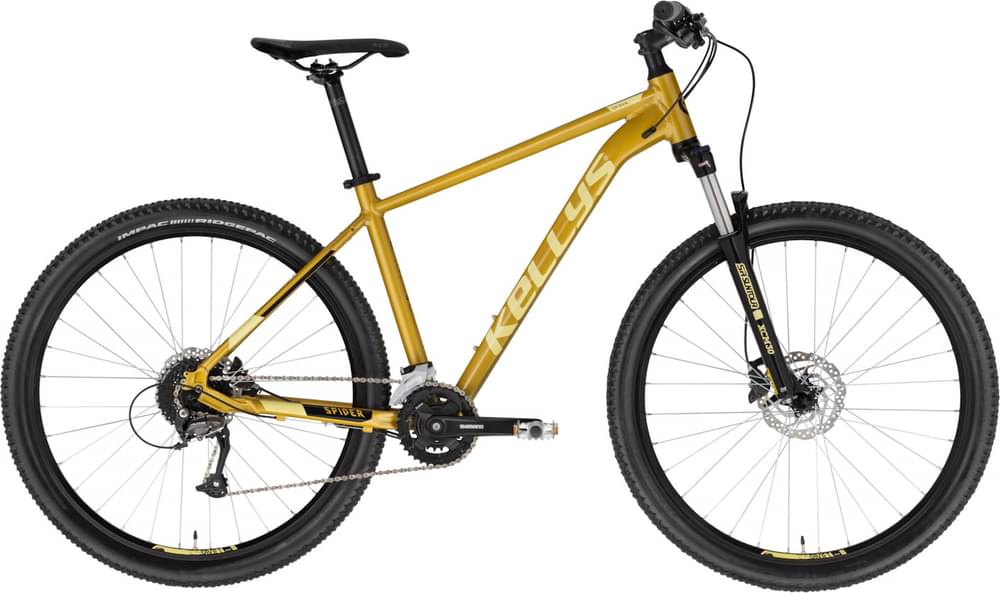

SPIDER 70 27.5″ is part of the Kellys Spider model. Kellys launched 41 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
SPIDER 70 27.5″ components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the SPIDER 70 27.5″ model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys SPIDER 70 27.5″ has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
