Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor 90Nm hub-drive -
Battery KELLYS Re-Charge Li-ion internal 630Wh / capacity 17.5Ah -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS e-FRAME, Uni-Body Integrated Design, Drive Core, tapered HT, internal routing, 12x148mm Boost thru axle
Suspension Fork
SR SUNTOUR XCM32 (27.5) Boost, 120mm, coil spring / 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG400-9 (11-36T)
Crank
SAMOX (34T) - length 170mm
Chain
KMC e9S (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rims
KLS Draft Disc 584x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Country Race´r 54x584 (27.5x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
180mm front / 180mm rear
Cockpit
Stem
KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 45mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Grips
KLS Token Lockon 3Density
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 90Nm, 36V
Battery
KELLYS Re-Charge Li-ion internal 630Wh / capacity 17.5Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 27" |
About this model

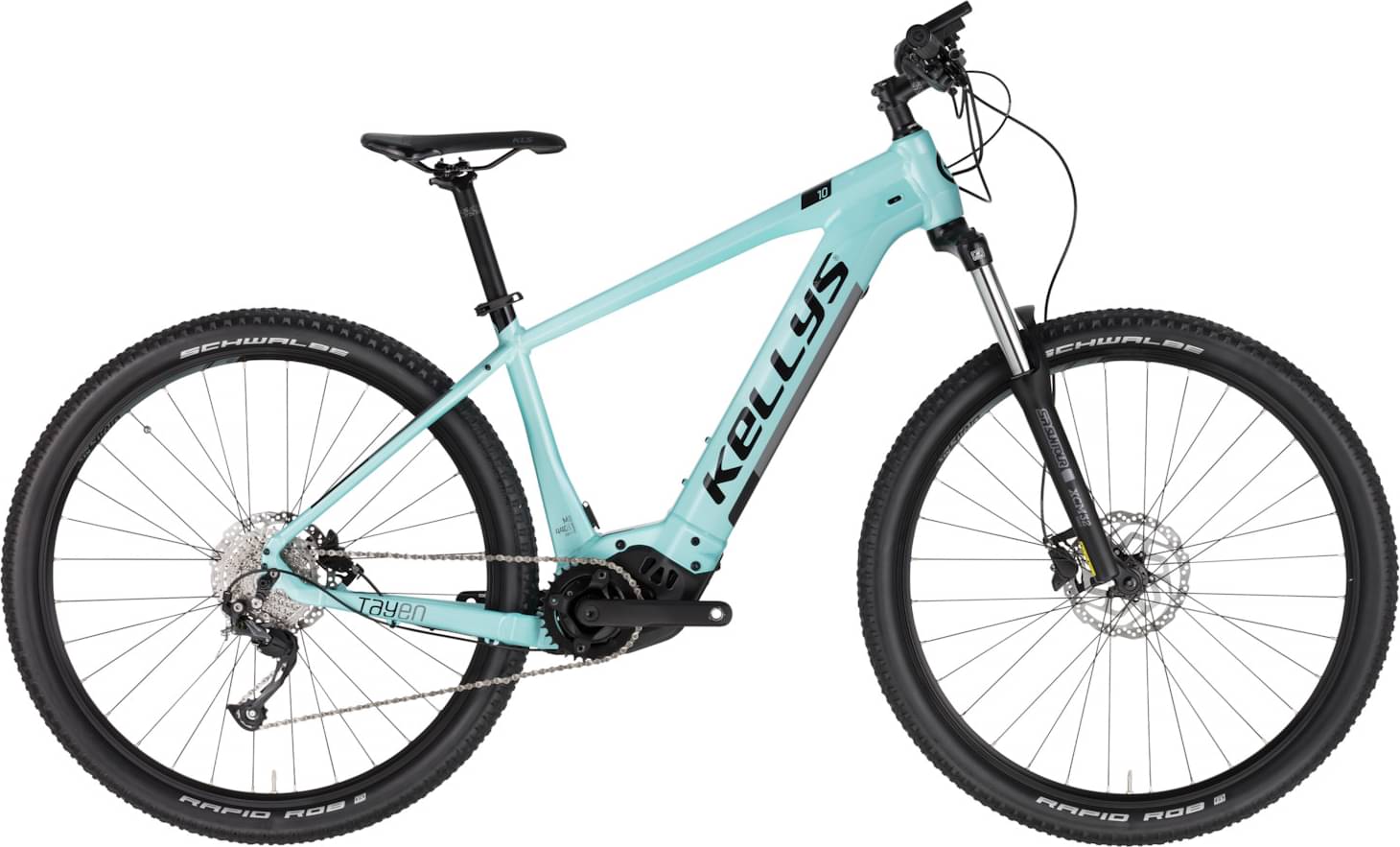

TAYEN 10 27.5″ 630Wh completes the Kellys E Tayen model. Kellys launched 32 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Kellys TAYEN R10 P 27.5″ 725Wh 2022 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Kellys TAYEN R90 P 29″ 725Wh 2022, is the most expensive and costs 4246$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The TAYEN 10 27.5″ 630Wh 2022 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TAYEN 10 27.5″ 630Wh comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
