Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Altus -
Suspension Hardtail -
Motor Panasonic 90Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU
Suspension Fork
SR SUNTOUR XCM32 (29) Boost, 120mm, coil spring / 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Altus M2000 (direct mount)
Shift Levers
SHIMANO Altus SL-M2000 Rapidfire Plus
Cassette
SHIMANO CS-HG400-9 (11-36T)
Crank
SAMOX (34T) - length 170mm
Chain
KMC e9S (118 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (32 holes)
Rims
KLS Draft Disc 622x21 (32 holes)
Spokes
stainless steel black
Tires
MICHELIN Country Race´r 54-622 (29x2.10)
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 45mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
PANASONIC GX Ultimate, 90Nm, 36V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ
Fit data

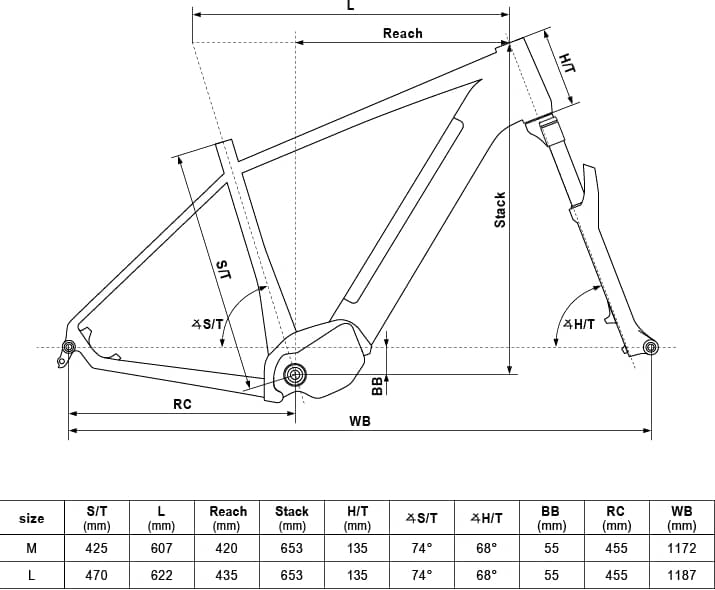

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |

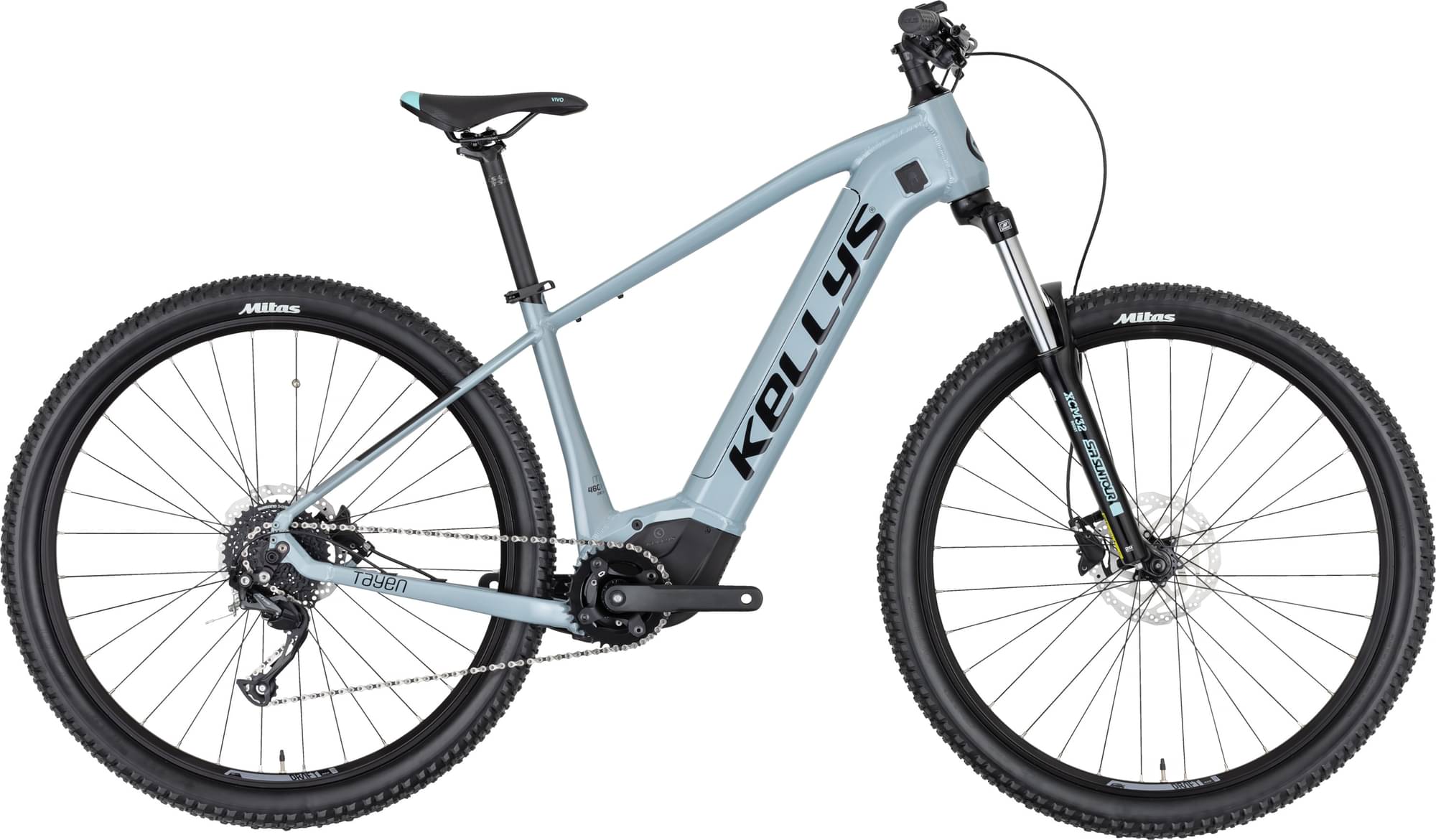

About this model
TAYEN R10 29″ 725Wh completes the Kellys E Tayen model. 32 e-bikes variations carry this model name so far. You can easily view all of the Kellys E Tayen e-bikes models from 2022, here.
Model range prices
Kellys TAYEN R10 P 27.5″ 725Wh 2022 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Kellys TAYEN R90 P 29″ 725Wh 2022, is the most expensive and costs 4246$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Kellys TAYEN R10 29″ 725Wh 2022 e-bike is equipped with the Suntour XCM fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The TAYEN R10 29″ 725Wh 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys TAYEN R10 29″ 725Wh has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
