Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU
Suspension Fork
ROCK SHOX Recon Silver RL (29) Boost, 120mm, Solo Air / Motion Control / Maxle Stealth 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO Deore M5120 (direct mount)
Shift Levers
SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO CS-M4100-10 (11-46T)
Crank
SHIMANO E6100 (34T) - length 170mm
Chain
KMC e10T (116 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub
SHIMANO MT400-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
Brakes
Brakes
SHIMANO MT200 Hydraulic Disc
Brake Levers
SHIMANO BL-MT200
Disk Rotors
180mm front / 180mm rear
Cockpit
Stem
KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 45mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Grips
KLS Poison OneLockon
Seat
Saddle
KLS Sentinel 2
Seatpost
KLS Active - diam 30.9mm / length 350mm
Motor & Battery
Motor
SHIMANO STEPS E7000, 36V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
Model Overview

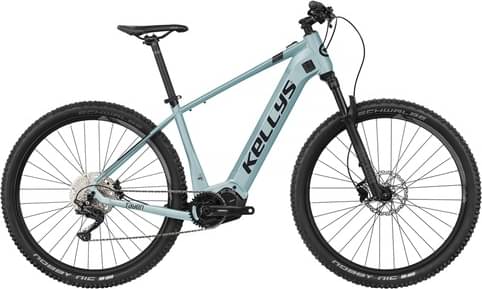

TAYEN R50 29″ 725Wh is part of the Kellys E Tayen model. There are 32 e-bikes that carry this model name. Take a sneak peek at all Kellys E Tayen e-bikes models from 2022, by clicking here.
Model range prices
Kellys TAYEN R10 P 27.5″ 725Wh 2022 is the most affordable e-bike of this model and has a price of 3184$. On the other hand, Kellys TAYEN R90 P 29″ 725Wh 2022, is the most expensive and costs 4246$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
TAYEN R50 29″ 725Wh components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the TAYEN R50 29″ 725Wh model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Kellys TAYEN R50 29″ 725Wh has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
