Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Gold RL
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU
Suspension Fork
ROCK SHOX Recon GOLD RL (27.5) Boost, 120mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO SLX M7100 (direct mount)
Shift Levers
SHIMANO Deore (021) SL-M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO (021) CS-M6100-12 (10-51T)
Crank
SHIMANO E6100 (36T) - length 170mm
Chain
SHIMANO (021) CN-M6100 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rims
KLS Valor 3 Disc 584x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 65-584 (27.5x2.60) ADDIX
Brakes
Brakes
SHIMANO Deore (021) MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore (021) BL-M4100
Disk Rotors
180mm front / 180mm rear
Cockpit
Stem
KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 45mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
EXAform JAG1 Remote Telescopic - diam 30.9mm / length 430mm, travel 125mm
Motor & Battery
Motor
SHIMANO STEPS E7000, 36V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM |
|---|---|
| Wheels | 27" |
Model Overview

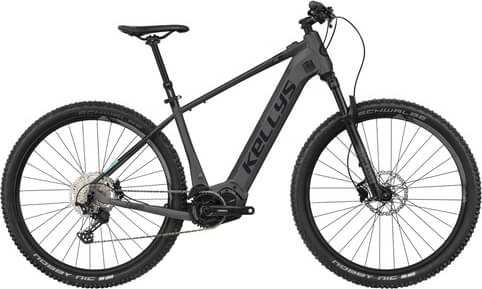

TAYEN R90 27.5″ 725Wh is a Kellys E Tayen model. Kellys released 32 e-bikes variations of this model so far. Take a sneak peek at all Kellys E Tayen e-bikes models from 2022, by clicking here.
Model range prices
Kellys TAYEN R10 P 27.5″ 725Wh 2022 is the cheapest e-bike model and costs 3184$. Kellys TAYEN R90 P 29″ 725Wh 2022 is the most expensive one and costs 4246$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This e-bike has the RockShox Recon Gold RL fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on TAYEN R90 27.5″ 725Wh are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kellys TAYEN R90 27.5″ 725Wh is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The Kellys model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
