Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Recon Gold RL
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery KELLYS Re-Charge V10 Li-ion internal removable 720Wh / capacity 20Ah, powered by BMZ -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
KELLYS TAYEN R series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU
Suspension Fork
ROCK SHOX Recon GOLD RL (29) Boost, 120mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle
Drivetrain
Rear Derailleur
SHIMANO SLX M7100 (direct mount)
Shift Levers
SHIMANO Deore (021) SL-M6100-IR Rapidfire Plus (I-Spec EV)
Cassette
SHIMANO (021) CS-M6100-12 (10-51T)
Crank
SHIMANO E6100 (36T) - length 170mm
Chain
SHIMANO (021) CN-M6100 (122 links)
Pedals
plastic
Wheels
Front Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rear Hub
SHIMANO MT400-B / Deore MT410-B Disc Center Lock (15x110mm / 12x148mm / 32 holes)
Rims
KLS Valor 3 Disc 622x30 (32 holes)
Spokes
stainless steel black
Tires
SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX
Brakes
Brakes
SHIMANO Deore (021) MT410 Hydraulic Disc
Brake Levers
SHIMANO Deore (021) BL-M4100
Disk Rotors
180mm front / 180mm rear
Cockpit
Stem
KLS Alm/En 50 - diam 28.6mm / bar bore 31.8mm / length 45mm
Handlebar
KLS Active RiseBar - diam 31.8mm / rise 18mm / width 700mm
Grips
KLS Poison OneLockon
Seat
Saddle
SELLE ROYAL Vivo
Seatpost
EXAform JAG1 Remote Telescopic - diam 30.9mm / length 485mm, travel 150mm
Motor & Battery
Motor
SHIMANO STEPS E7000, 36V
Battery
KELLYS Re-Charge V10 Li-ion internal removable 720Wh / capacity 20Ah, powered by BMZ
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
Model Overview

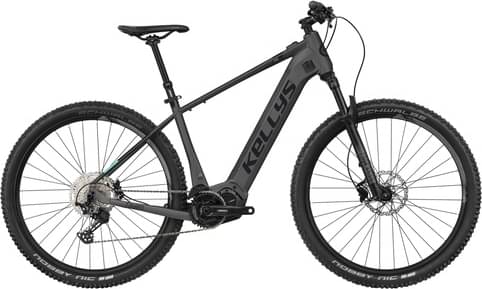

TAYEN R90 29″ 720Wh is a Kellys E Tayen model. 32 e-bikes variations carry this model name so far. Take a sneak peek at all Kellys E Tayen e-bikes models from 2021, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on TAYEN R90 29″ 720Wh are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kellys TAYEN R90 29″ 720Wh is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Dropper post
A dropper post is included with the TAYEN R90 29″ 720Wh. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
