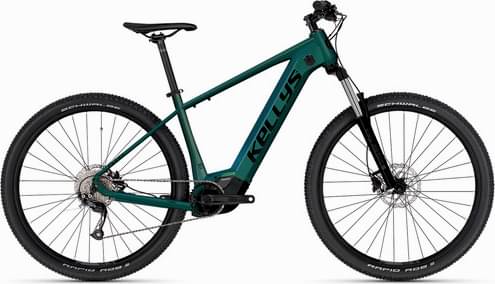

Kellys TYGON R10 P MAGIC 29″ 725Wh 2023

2023 E-bike
Estimate price | 3,440$
E-bike
Open compare Use advisor
  • Kellys TYGON R10 P MAGIC 29″ 725Wh 2023 - kellys-tygon-r10-p-magic-29-725wh-2023.jpeg
  • Kellys TYGON R10 P MAGIC 29″ 725Wh 2023 - kellys-tygon-r10-p-magic-29-725wh-2023-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 29"
  • Travel Front 120mm
  • Fork Suntour XCM
  • Groupset Altus
  • Suspension Hardtail
  • Motor Panasonic 95Nm mid-drive
  • Battery KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ
  • Drivetrain 1 × 9
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy / Designed & manufactured in EUROPE / integrated removable battery, 1.5" tapered HT, 12x148 mm Boost thru axle

Suspension Fork

SR SUNTOUR XCM 32 DS (29") Boost, 120 mm, coil spring / 15 mm thru axle

Drivetrain

Rear Derailleur

SHIMANO Altus M2000 (direct mount)

Shift Levers

SHIMANO Altus SL-M2000 Rapidfire Plus

Cassette

SHIMANO CS-HG400-9 (11-36T)

Crank

MIRANDA Delta (36T) - length 170 mm

Chain

KMC e9S (118 links)

Pedals

plastic

Wheels

Front Hub

SHIMANO MT400-B Disc Center Lock (32 holes)

Rear Hub

SHIMANO MT400-B Disc Center Lock (32 holes)

Rims

KLS Draft Disc 622x21 (32 holes)

Spokes

stainless steel black

Tires

SCHWALBE Rapid Rob 57-622 (29"x2.25) K-Guard

Brakes

Brakes

SHIMANO MT200 Hydraulic Disc

Brake Levers

SHIMANO BL-MT200

Cockpit

Stem

KLS Alm/En 50 - diam 28.6 mm / bar bore 31.8 mm / length 60 mm

Handlebar

KLS Active RiseBar - diam 31.8 mm / rise 18 mm / width 720 mm

Grips

KLS Poison OneLockon

Seat

Saddle

SELLE ROYAL Vivo

Seatpost

KLS Active - diam 30.9 mm / length 350 mm

Motor & Battery

Motor

PANASONIC GX Ultimate, 95 Nm, 36 V

Battery

KELLYS Re-Charge K1 Li-ion internal removable 725 Wh / capacity 20 Ah, co-developed by Kellys-BMZ

Fit data

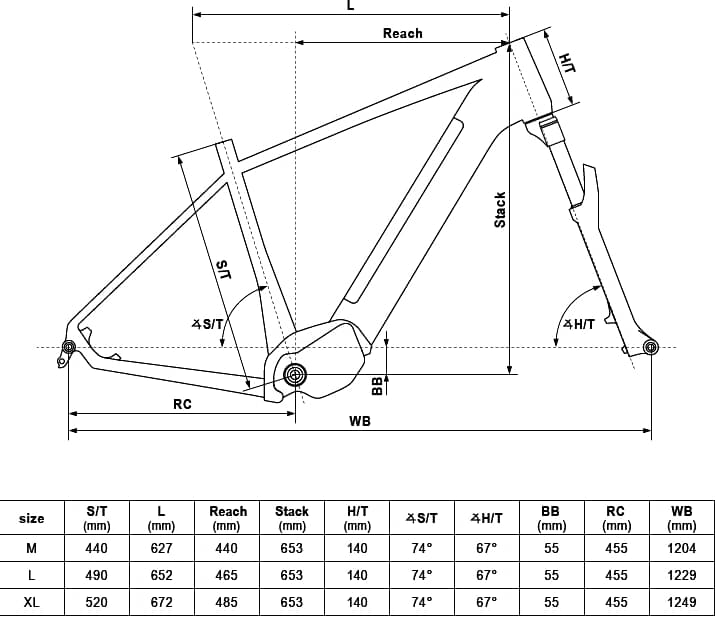

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Wheels29"29"29"
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm

About this model

TYGON R10 P MAGIC 29″ 725Wh completes the Kellys E Tygon model. Kellys launched 15 e-bikes of this model so far. You can easily view all of the Kellys E Tygon e-bikes models from 2023, here.

Model range prices

Kellys TYGON R10 P MAGIC 29″ 725Wh 2023 is the most economical model, with a starting price of 3184$. Kellys TYGON R90 P 29″ 725Wh 2023 on the other hand costs 4246$, and is the most expensive model.

Safety

Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.

Average price for Trail e-bikes

If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.

Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3184$. Doing a quick comparison, we notice that TYGON R10 P MAGIC 29″ 725Wh price is 5.68% lower than the average cost of a Trail e-bike.

Overview of components

Fork

The Suntour XCM is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

Wheels size

When it comes to wheels, the TYGON R10 P MAGIC 29″ 725Wh e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.

Brakes

For your safety, it is important to have quality breaks on your bike. Kellys TYGON R10 P MAGIC 29″ 725Wh has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.

Sizes

Kellys TYGON R10 P MAGIC 29″ 725Wh e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
