Kellys TYGON R90 P 29″ 725Wh 2022

2022 E-bike
Estimate price | 4,652$
E-bike
Open compare Use advisor

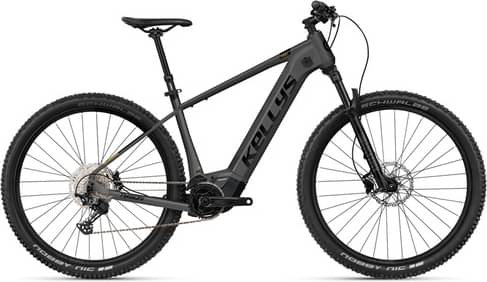

  • Kellys TYGON R90 P 29″ 725Wh 2022 - kellys-tygon-r90-p-29-725wh-2022.jpeg
  • Kellys TYGON R90 P 29″ 725Wh 2022 - kellys-tygon-r90-p-29-725wh-2022-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 29"
  • Travel Front 120mm
  • Fork RockShox 35 Gold RL
  • Groupset XT, Deore
  • Suspension Hardtail
  • Motor Panasonic 90Nm mid-drive
  • Battery KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

KELLYS TYGON R-series - advanced robotic welded 6-series aluminium alloy, integrated removable battery, 1.5“ tapered HT, 12x148mm Boost thru axle / Made in EU

Suspension Fork

ROCK SHOX 35 GOLD RL (29) Boost, 120mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle

Drivetrain

Rear Derailleur

SHIMANO Deore XT M8100 (direct mount)

Shift Levers

SHIMANO Deore SL-M6100-IR Rapidfire Plus (I-Spec EV)

Cassette

SHIMANO CS-M6100-12 (10-51T)

Crank

SAMOX (34T) - length 170mm

Chain

SHIMANO CN-M6100 (122 links)

Pedals

plastic

Wheels

Front Hub

SHIMANO MT400-B / Deore MT410-B Disc Center Lock (32 holes)

Rear Hub

SHIMANO MT400-B / Deore MT410-B Disc Center Lock (32 holes)

Rims

KLS Valor 3 Disc 622x30 (32 holes)

Spokes

stainless steel black

Tires

SCHWALBE Nobby Nic Performance 60-622 (29x2.35) ADDIX

Brakes

Brakes

SHIMANO MT420 Hydraulic Disc

Brake Levers

SHIMANO Deore BL-M4100

Cockpit

Stem

KLS Active - diam 28.6mm / bar bore 31.8mm / 6° / length 80mm

Handlebar

KLS Active RiseBar - diam 31.8mm / rise 18mm / width 720mm

Grips

KLS Poison OneLockon

Seat

Saddle

SELLE ROYAL Vivo

Seatpost

LIMOTEC A1 Remote Telescopic - diam 30.9mm / length 445mm, travel 150mm

Motor & Battery

Motor

PANASONIC GX Ultimate, 90Nm, 36V

Battery

KELLYS Re-Charge V10 Li-ion internal removable 725Wh / capacity 20Ah, powered by BMZ

Fit data

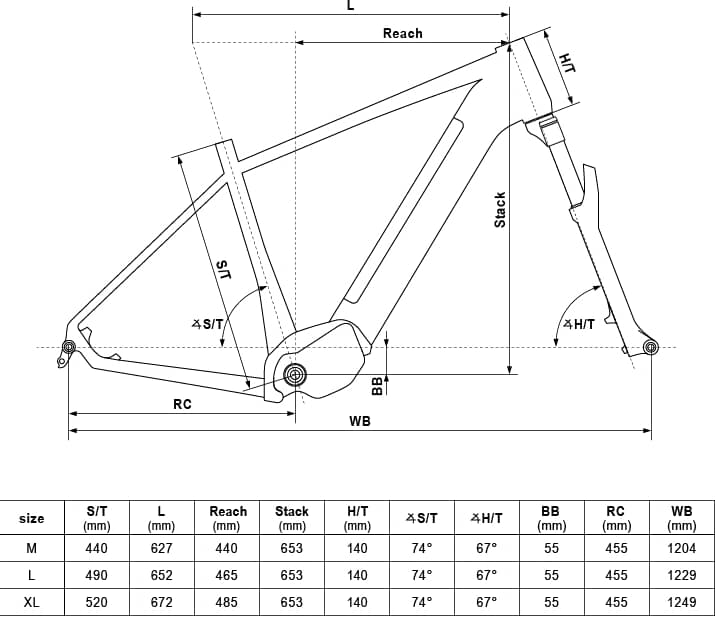

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Wheels29"29"29"
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm

Model Overview

TYGON R90 P 29″ 725Wh completes the Kellys E Tygon model. Kellys launched 15 e-bikes of this model so far. You can easily view all of the Kellys E Tygon e-bikes models from 2022, here.

Model range prices

Kellys TYGON R10 P 29″ 725Wh 2022 is the most economical model, with a starting price of 3184$. Kellys TYGON R90 P 29″ 725Wh 2022 on the other hand costs 4246$, and is the most expensive model.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Trail e-bikes average price

If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.

Furthermore, this bike was made available in 2022 for 4246$. If we compare this with the average Trail e-bike cost we notice that the price is 26.18% higher.

Overview of components

Fork

Kellys TYGON R90 P 29″ 725Wh 2022 e-bike is equipped with the RockShox 35 Gold RL fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

Wheels

The wheels on TYGON R90 P 29″ 725Wh are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.

Brakes

For your safety, it is important to have quality breaks on your bike. Kellys TYGON R90 P 29″ 725Wh has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.

Sizes

TYGON R90 P 29″ 725Wh comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, you can easily find one that suits you.

Dropper post

Kellys TYGON R90 P 29″ 725Wh includes a dropper post. Therefore, climbing or descending will be a breeze.
