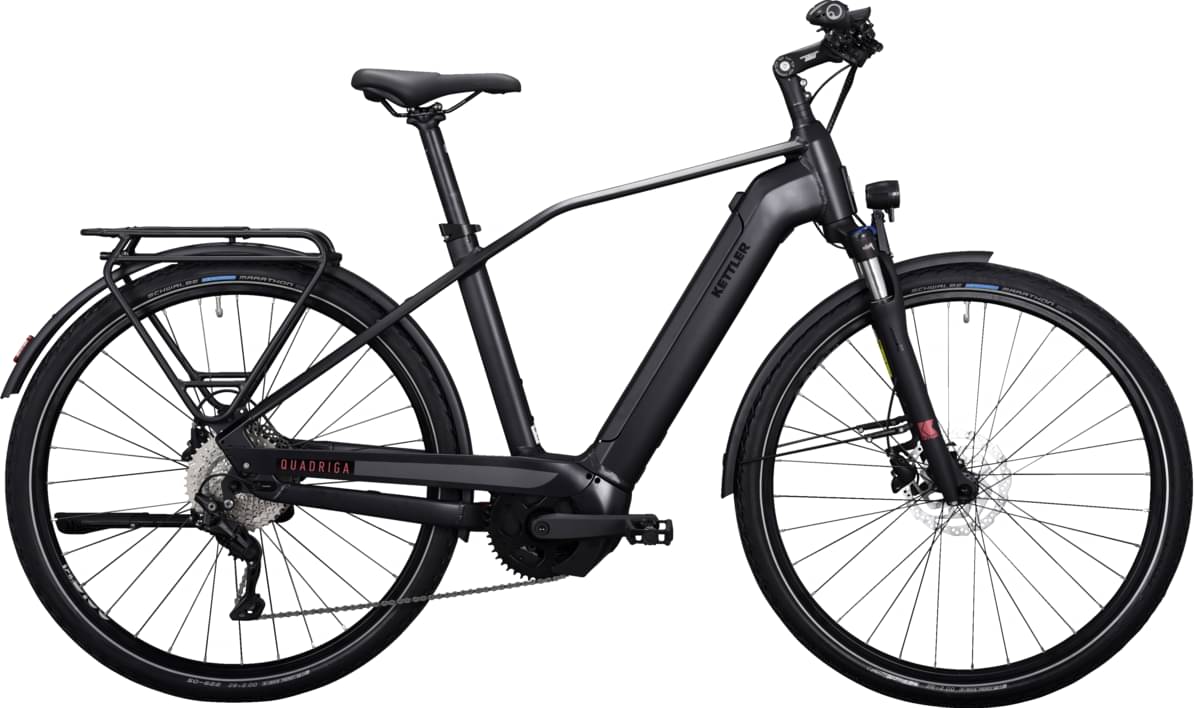

kettler QUADRIGA CX10 Diamond 2022
2022 E-bike
Estimate price |
4,128$
Weight | 28.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Horizontal 625 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Rear Derailleur
SHIMANO Deore RD-M4120
Shift Levers
SHIMANO Deore SL-M4100
Cassette
SHIMANO Deore CS-M4100, 11-42T
Crank
SAMOX
Chain
SHIMANO HG 54
Pedals
ZECURE VP-821
Wheels
Front Hub
SHIMANO Alivio HB-M4050
Rear Hub
SHIMANO Alivio FH-M4050
Rims
Schürmann YAK Disc
Spokes
Spoke 2.0 blk
Tires
SCHWALBE Marathon GG HS420
Brakes
Brakes
hydraulische Scheibenbremse
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
Competition SL, adjustable
Handlebar
Competition SL Trekking
Headset
ACROS, 1-1/8 Zoll
Seat
Saddle
Comodoro M
Seatpost
SP-216 blk (34,9mm)
Motor & Battery
Motor
Bosch Performance Line CX 25/85Nm
Battery
Bosch PowerTube Horizontal 625
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
QUADRIGA CX10 Diamond completes the Kettler E Quadriga model. 105 e-bikes variations carry this model name so far. Take a sneak peek at all Kettler E Quadriga e-bikes models from 2022, by clicking here.
Model range prices
Kettler Quadriga Cityhopper RT 2022 is the most affordable e-bike of this model and has a price of 3290$. On the other hand, Kettler QUADRIGA DUO CX SPEED 2022, is the most expensive and costs 8199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2022 for 3821$. Comparing the average cost of a Commuter e-bike to this one, you will see that QUADRIGA CX10 Diamond price is 48.73% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 25.2 kg (55.56 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Kettler QUADRIGA CX10 Diamond it’s weighing 28.5 kg (62.83 lbs). At this weight, is considerably heavier than average. To sum up, it’s 13.1% heavier than the average weight of Commuter e-bikes.
QUADRIGA CX10 Diamond components
Fork
The QUADRIGA CX10 Diamond comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the QUADRIGA CX10 Diamond e-bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
