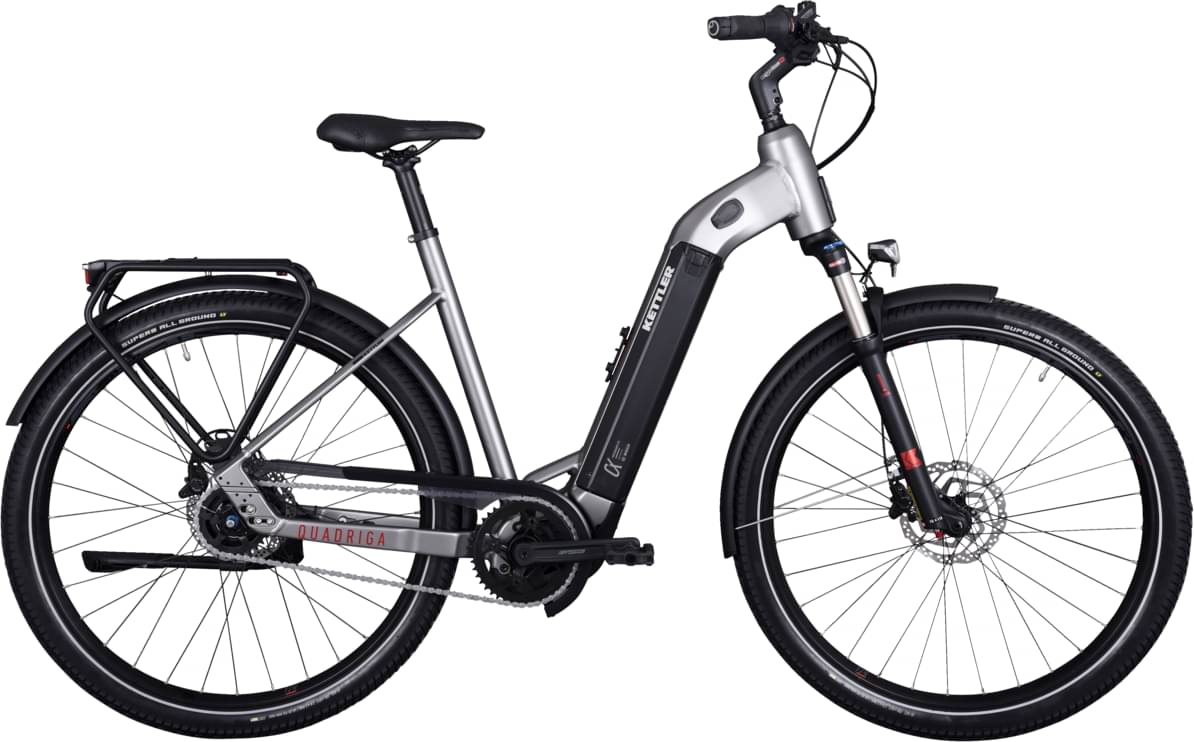

kettler Quadriga DUO CX5 Wave 2022
2022 E-bike
Estimate price |
6,078$
Weight | 31.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR 34
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery 2x Bosch PowerTube 625 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR XCR34, Air
Drivetrain
Shift Levers
SHIMANO Nexus SL-C7000-5
Cassette
SHIMANO Nexus CS-7000, 27T
Crank
FSA CK-320
Chain
PC-10
Pedals
ZECURE VP-617
Wheels
Front Hub
SHIMANO HB-MT400-B
Rear Hub
SHIMANO Nexus SG-C70000-5D
Rims
RODI Tryp35
Spokes
Spoke 2.0 blk
Tires
SUPERO All Ground
Brakes
Brakes
Hydraulische Scheibenbremse
Brake Levers
SHIMANO BL-MT402
Cockpit
Stem
HUMPERT ergotec Barracuda
Handlebar
Competition SL Ergo
Headset
ACROS AZF-584, 1.5 Zoll
Seat
Saddle
ZECURE L VL-6483
Seatpost
SP-216 blk (34,9mm)
Motor & Battery
Motor
Bosch Performance Line CX 25/85Nm
Battery
2x Bosch PowerTube 625
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
About this model
Quadriga DUO CX5 Wave belongs to the Kettler E Quadriga model. There are 105 e-bikes that carry this model name. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Kettler Quadriga Cityhopper RT 2022 is the most economical model, with a starting price of 3290$. Kettler QUADRIGA DUO CX SPEED 2022 on the other hand costs 8199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5626$. Comparing this to the average Commuter e-bike price, we see that the price is 119% higher.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Quadriga DUO CX5 Wave weighs 31.5 kg (69.45 lbs) and is much heavier than the average. In conclusion, the average Commuter e-bike weighs 25% less than Quadriga DUO CX5 Wave.
Overview of components
Fork
This e-bike has the Suntour XCR 34 fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Quadriga DUO CX5 Wave model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kettler Quadriga DUO CX5 Wave is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
