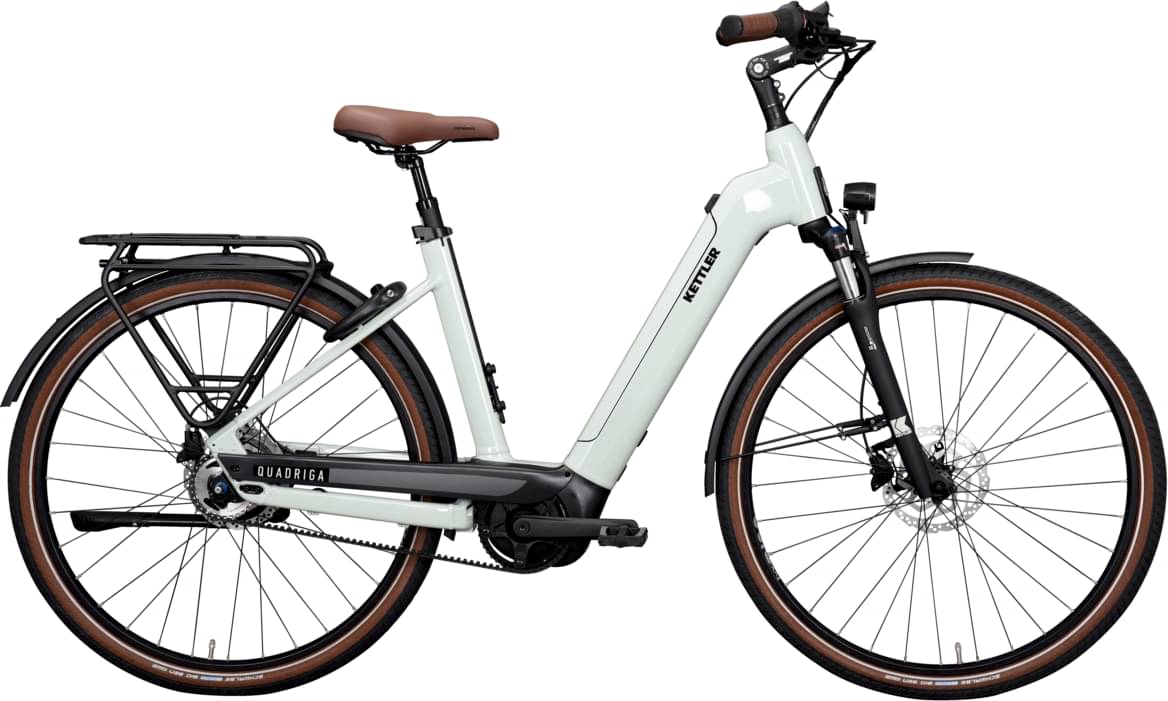

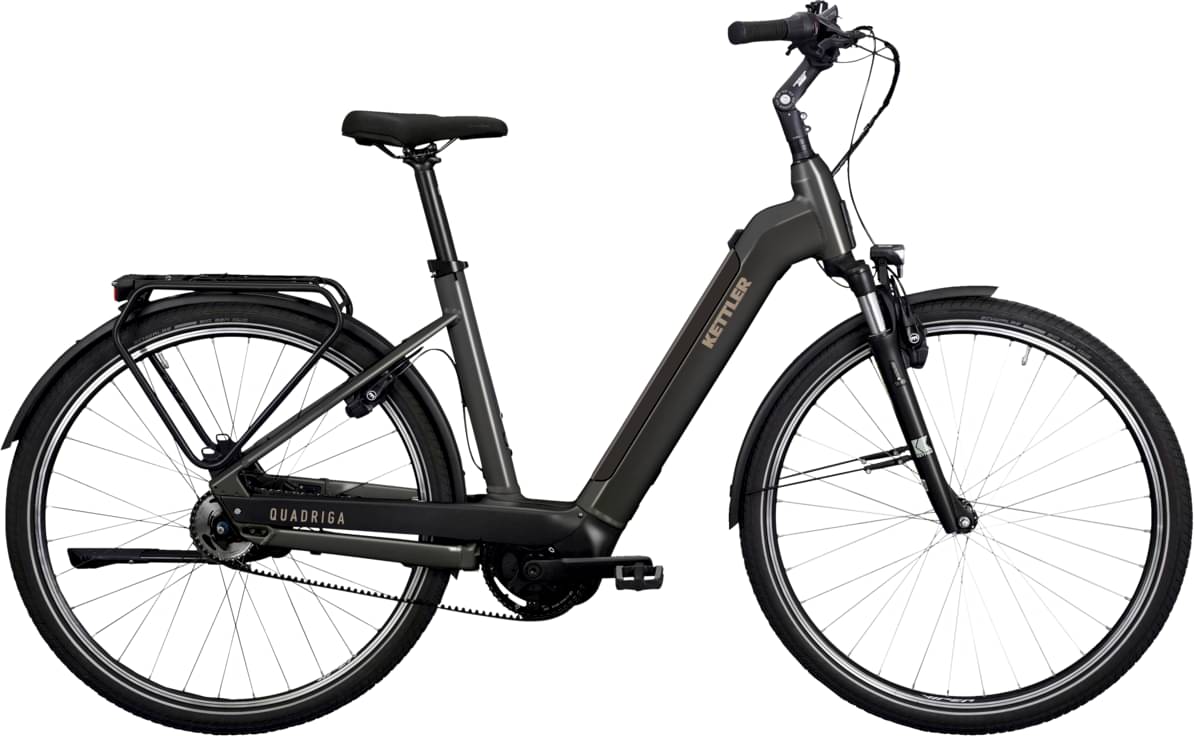

kettler QUADRIGA P5 BELT FL 26 2023
2023 E-bike
Estimate price |
4,499$
Weight | 28.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerTube Horizontal 625 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Shift Levers
SHIMANO Nexus SL-C7000-5
Cassette
GATES ® Inter 5, 32T
Crank
SAMOX
Pedals
ZECURE VP-821
Wheels
Front Hub
SHIMANO Alivio HB-M4050
Rear Hub
SHIMANO Nexus SG-C7000-5D
Rims
Schürmann YAK Disc
Spokes
Spoke 2.0 blk
Tires
SCHWALBE Marathon GG HS420
Brakes
Brakes
hydraulic disc brake
Brake Levers
SHIMANO BL-MT200
Cockpit
Stem
Competition SL, adjustable
Handlebar
Competition SL Ergo
Headset
ACROS, 1-1/8 Zoll
Seat
Saddle
Comodoro XL
Seatpost
SATORI Harmony LT2 suspension seatpost (34,9mm)
Motor & Battery
Motor
Bosch Performance Line Cruise 25/65Nm
Battery
Bosch PowerTube Horizontal 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm |
|---|---|
| Wheels | 26" |
| Rider Min Height | 120 cm |
About this model
QUADRIGA P5 BELT FL 26 belongs to the Kettler E Quadriga model. Kettler launched 105 e-bikes of this model so far. You can easily view all of the Kettler E Quadriga e-bikes models from 2023, here.
Model range prices
Kettler Quadriga Cityhopper RT 2023 is the cheapest e-bike model and costs 3899$. Kettler QUADRIGA DUO CX12 FS SUV 2023 is the most expensive one and costs 8399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4499$. Comparing the average cost of a Commuter e-bike to this one, you will see that QUADRIGA P5 BELT FL 26 price is 75.13% higher.
Commuter e-bikes average weight
Commuter e-bikes have an average weight of 24.02 kg (52.95 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
QUADRIGA P5 BELT FL 26 weighs 28.5 kg (62.83 lbs) and is much heavier than the average. To sum up, it’s 18.65% heavier than the average weight of Commuter e-bikes.
Overview of components
Fork
The Suntour NEX is included from the factory. It has a travel distance of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The QUADRIGA P5 BELT FL 26 2023 e-bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
