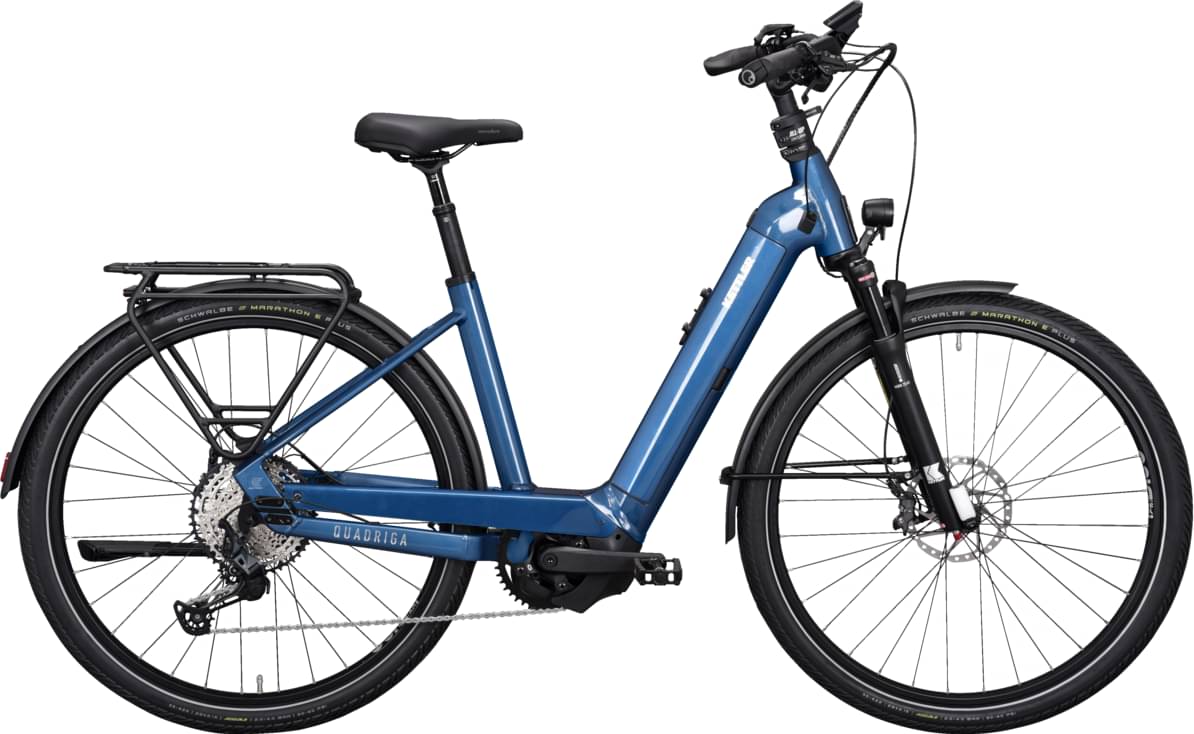

kettler QUADRIGA PRO CX12 750 Wave 2022
2022 E-bike
Estimate price |
5,390$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour MOBIE
-
Groupset SLX, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube Vertikal 750 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR SUNTOUR Mobie25, Air
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100
Shift Levers
SHIMANO Deore SL-M6100
Cassette
SHIMANO SLX CS-M7100, 10-51T
Crank
SAMOX
Chain
SHIMANO Deore CN-M6100
Pedals
ZECURE VP-658
Wheels
Front Hub
SHIMANO Deore HB-M6010
Rear Hub
SHIMANO FH-MT500
Rims
Schürmann YAK Disc
Spokes
Spoke 2.0 blk
Tires
SCHWALBE Marathon E-Plus
Brakes
Brakes
hydraulische Scheibenbremse
Brake Levers
SHIMANO XT BL-T8100
Cockpit
Stem
SATORI All Up
Handlebar
Noir Mtb 35° blk
Headset
Headset for All Up, 1.5 Zoll
Seat
Saddle
Comodoro XL
Seatpost
LIMOTEC A3Z suspension dropper post (140x34,9mm)
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85Nm
Battery
Bosch PowerTube Vertikal 750
Remote
Bosch Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 48cm | 53cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
QUADRIGA PRO CX12 750 Wave is part of the Kettler E Quadriga model. 105 e-bikes variations carry this model name so far. Take a sneak peek at all Kettler E Quadriga e-bikes models from 2022, by clicking here.
Model range prices
Kettler Quadriga Cityhopper RT 2022 is the cheapest e-bike model and costs 3290$. Kettler QUADRIGA DUO CX SPEED 2022 is the most expensive one and costs 8199$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4989$. If we compare this with the average Commuter e-bike cost we notice that the price is 94.2% higher.
Commuter e-bikes average weight
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 28 kg (61.73 lbs), the QUADRIGA PRO CX12 750 Wave model is considerably heavier than average. In short, the average Commuter e-bike weight is 11.11% lower than this one.
Overview of components
Fork
The QUADRIGA PRO CX12 750 Wave comes factory-installed with the Suntour MOBIE fork. This has a travel range of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on QUADRIGA PRO CX12 750 Wave are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
