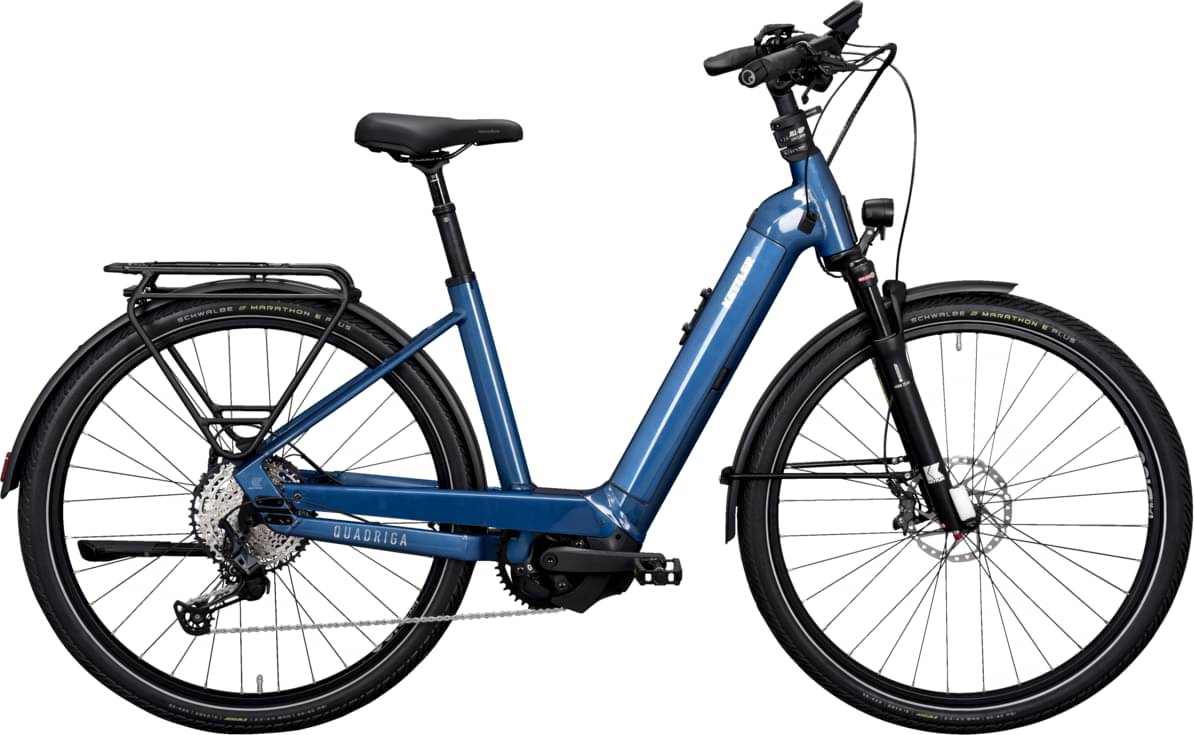

kettler QUADRIGA PRO CX12 750 Wave 2023
Bike details
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum
-
Wheels 700c
-
Travel Front 63mm
-
Fork Suntour MOBIE
-
Groupset SLX, Deore
-
Suspension Hardtail
-
Motor Bosch 250W 85Nm mid-drive
-
Battery Bosch PowerTube Vertikal 750
-
Brakes Hydraulic Disc
Parts list
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
SR SUNTOUR Mobie25, Air
Drivetrain
Rear Derailleur
SHIMANO SLX RD-M7100
Shift Levers
SHIMANO Deore SL-M6100
Cassette
SHIMANO SLX CS-M7100, 10-51T
Crank
SAMOX
Chain
SHIMANO Deore CN-M6100
Pedals
ZECURE VP-658
Wheels
Front Hub
SHIMANO Deore HB-M6010
Rear Hub
SHIMANO FH-MT500
Rims
Schürmann YAK Disc
Spokes
Spoke 2.0 blk
Tires
SCHWALBE Marathon E-Plus
Brakes
Brakes
hydraulic disc brake
Brake Levers
SHIMANO XT BL-T8100
Cockpit
Stem
SATORI All Up
Handlebar
Noir Mtb 35° blk
Headset
Headset for All Up, 1.5 Zoll
Seat
Saddle
Comodoro XL
Seatpost
LIMOTEC A3Z suspension dropper post (140x34,9mm)
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) 25/85Nm
Battery
Bosch PowerTube Vertikal 750
Fit data
Numbers for sizing and ride feel.
| Size | 43cm | 48cm | 53cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
Model Overview
QUADRIGA PRO CX12 750 Wave is a Kettler E Quadriga model. There are 105 e-bikes that carry this model name. You can easily view all of the Kettler E Quadriga e-bikes models from 2023, here.
Model range prices
Kettler Quadriga Cityhopper RT 2023 is the cheapest e-bike model and costs 3899$. Kettler QUADRIGA DUO CX12 FS SUV 2023 is the most expensive one and costs 8399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5599$. Comparing the average cost of a Commuter e-bike to this one, you will see that QUADRIGA PRO CX12 750 Wave price is 117.94% more expensive.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 24.02 kg (52.95 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Kettler QUADRIGA PRO CX12 750 Wave it’s weighing 28 kg (61.73 lbs). At this weight, is much heavier than average. In short, the average Commuter e-bike weight is 16.57% lower than this one.
QUADRIGA PRO CX12 750 Wave components
Fork
The fork installed on this bike is the Suntour MOBIE model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The QUADRIGA PRO CX12 750 Wave 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Kettler QUADRIGA PRO CX12 750 Wave is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
