Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 120mm -
Travel Rear 120mm -
Fork RST
-
Groupset Alivio, SLX -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
120mm, 4-bar Horst bearing linkage, Custom formed 6061 double butted alloy
Suspension Fork
RST Blaze TNL, 120mm,Hydraulic dampening, hydraulic lock out, Pre-load adj
Rear Shock
RockShox Bar R, air w/hydraulic dampening & IFP, rebound adj, 190mm
Drivetrain
Rear Derailleur
Shimano RD-M430 Alivio, 9 speed
Front Derailleur
Shimano FD-M661 SLX,Down Swing, direct mount
Shift Levers
Shimano SL-M390 Acera, Pods
Cassette
Shimano CS HG20-9, 11-34T, 9-Speed
Crank
Truvativ E400 3.0, 44/32/22, 15" =170mm, 17"-21" =175mm
Bottom Bracket
TruVativ power spline cartridge bearing, 118mm
Chain
KMC Z99
Pedals
Wellgo alloy ATB 1 pc.
Wheels
Rims
Weinmann XM25,Double wall, 26", 32H
Spokes
14G black 32X32
Tires
Kenda Klaw, K876/886, 26X2.1, 60 TPI
Brakes
Brakes
Bengal Helix 5.0,Hydraulic Disc, 160mm Low Temperature Rotors
Brake Levers
Bengal Helix 5.0
Cockpit
Stem
Alloy 7 degree 4-bolt, 31.8
Handlebar
Alloy,31.8 680X25mm
Grips
KHS Sport, Dual Compound
Headset
Cane Creek, 5ZS44, A-Head 1-1/8, Zero Stack, 44/30
Seat
Saddle
KHS Sport Dual Density
Seatpost
Alloy micro-adjust, 30.9x350mm
About this model

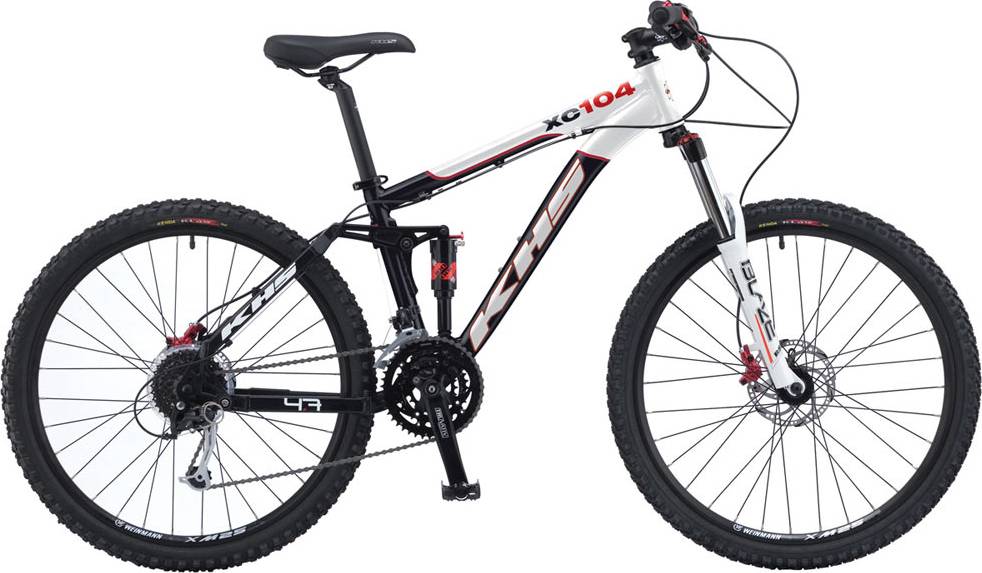

XC 104 belongs to the Khs Xc model. KHS released 13 bikes variations of this model so far. Take a sneak peek at all Khs Xc bikes models from 2012, by clicking here.
Model range prices
KHS XC 104 2012 is the most affordable bike of this model and has a price of 1249$. On the other hand, KHS XC TEAM 2012, is the most expensive and costs 5299$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2012 for 1249$. Comparing the average cost of a Trail bike to this one, you will see that XC 104 price is 121.14% lower.
XC 104 components
Fork
KHS XC 104 2012 bike is equipped with the RST fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Bar R rear shock model, which has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the XC 104 model has 26″ aluminum wheels. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. KHS XC 104 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
