Bike details
Overview
Key information split into simple groups.

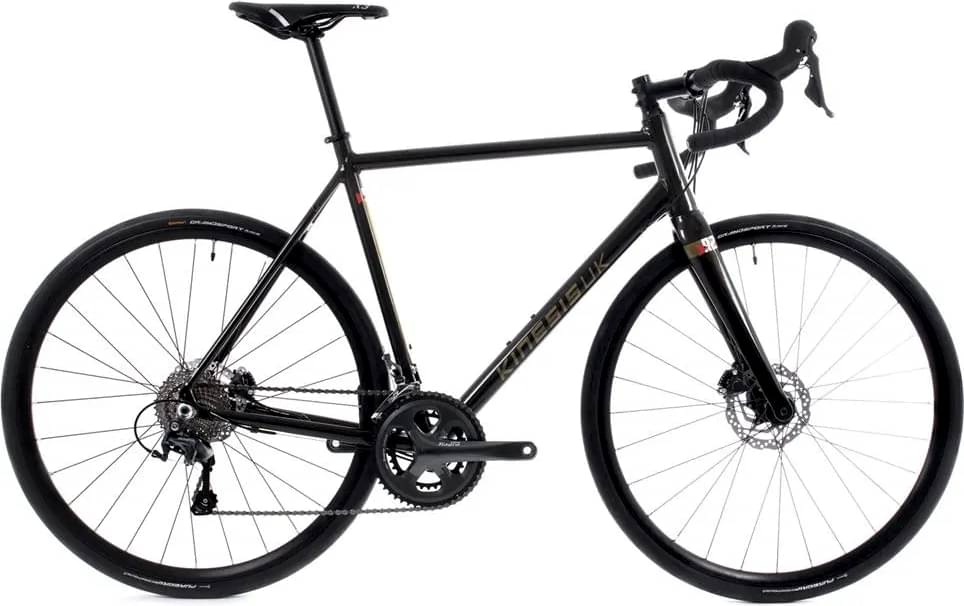

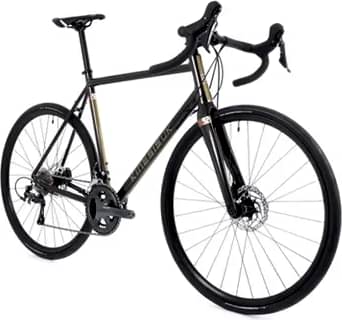

Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components

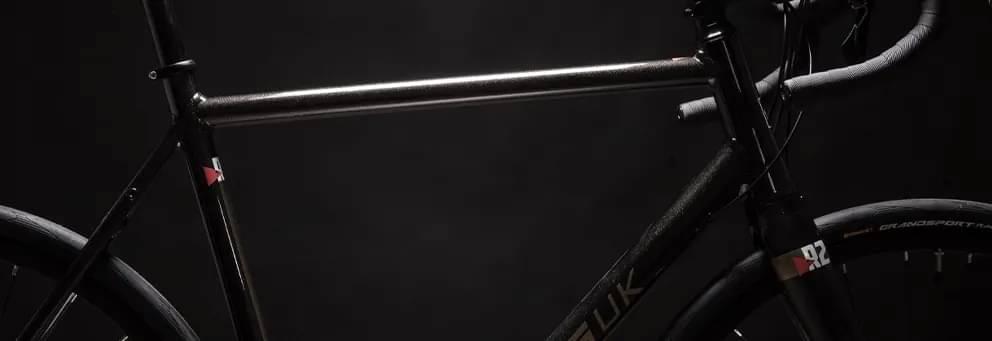

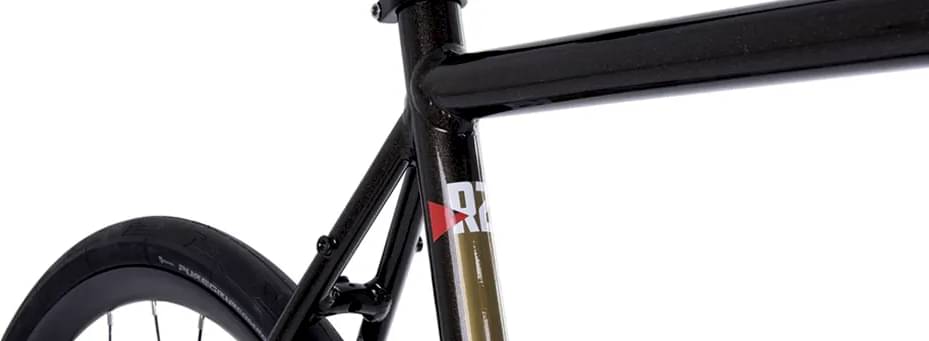

Frame

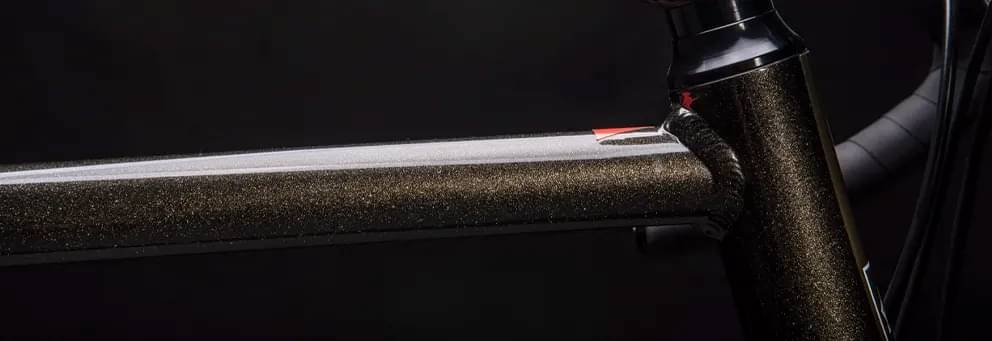

Frame
Kinesis R2 Double Butted Alloy 6061.
Suspension Fork
Kinesis R2 Full UD Carbon.
Drivetrain
Shift Levers
Shimano Tiagra ST-4720.
Cassette
Shimano CS-HG500 10 speed 11-34.

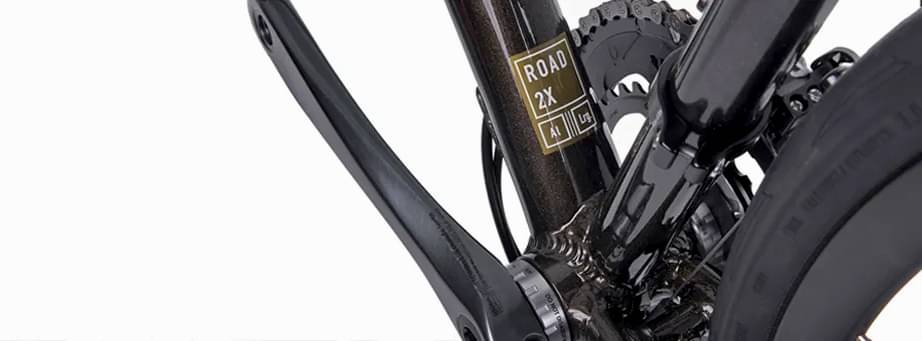

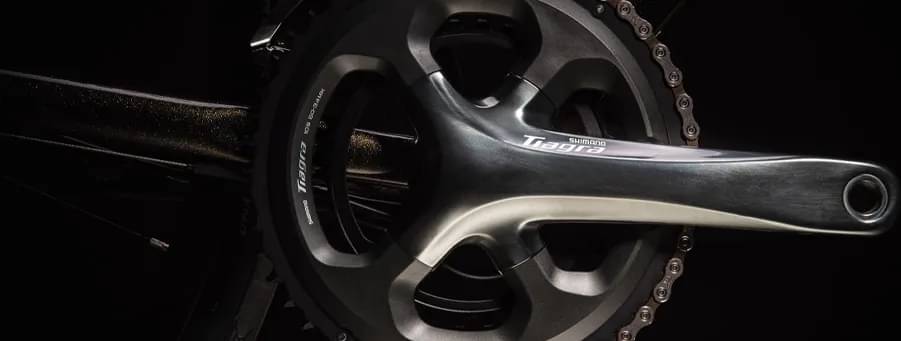

Crank
Shimano Tiagra FC-4700 50/34t. S: 170mm, M & L: 172.5mm, XL: 175mm.
Bottom Bracket
Shimano CN-HG54.
Chain
Shimano HG-51.
Wheels
Front Hub
Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 100 mm Through Axle.
Rear Hub
Alloy, Sealed Cartridge Bearing Hub, Centre-lock, 12 mm x 142 mm Through Axle.
Rims
Alex Rims 1.9P Tubeless Compatible.

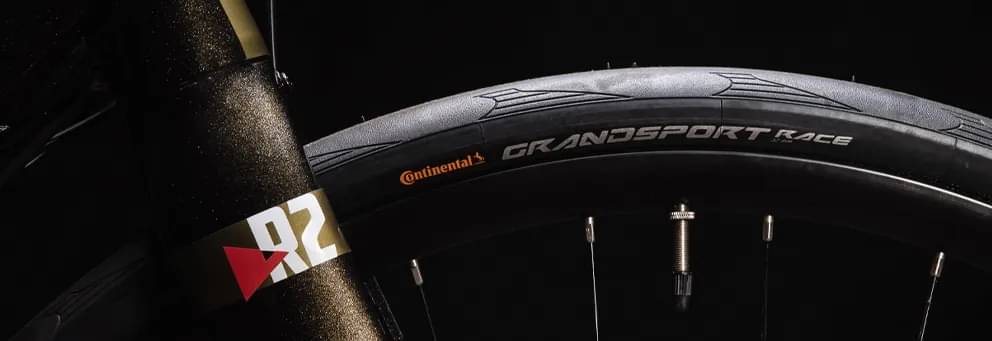

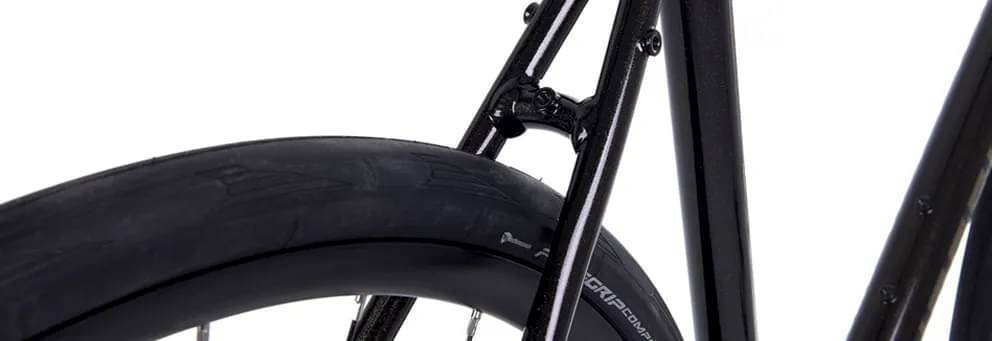

Tires
Continental Grand Sport Race 32c.
Brakes

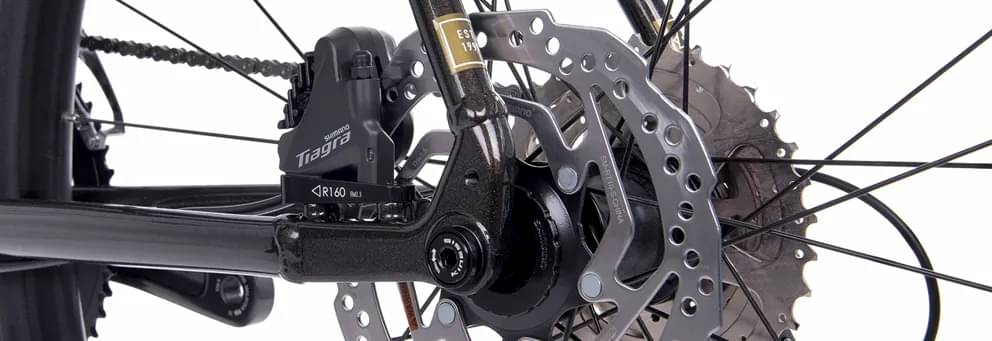

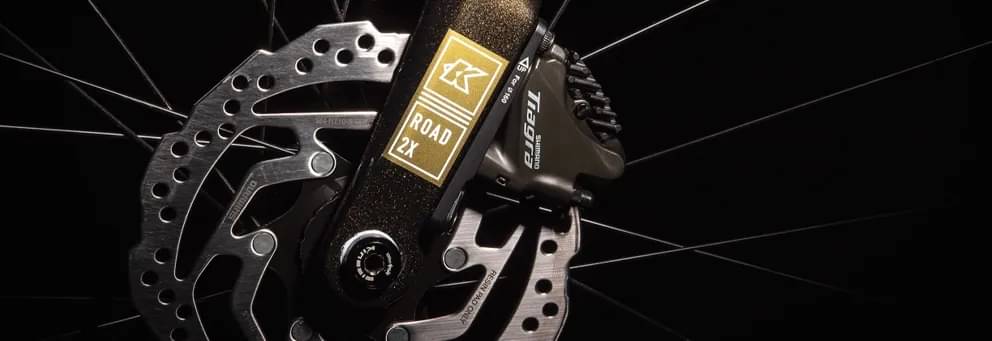

Brakes
Shimano Tiagra BR-4770 Hydraulic.
Cockpit
Stem
Kinesis Alloy 6061 6° Rise S(51):80mm M(54):90mm L(57):90mm XL(60):100mm.

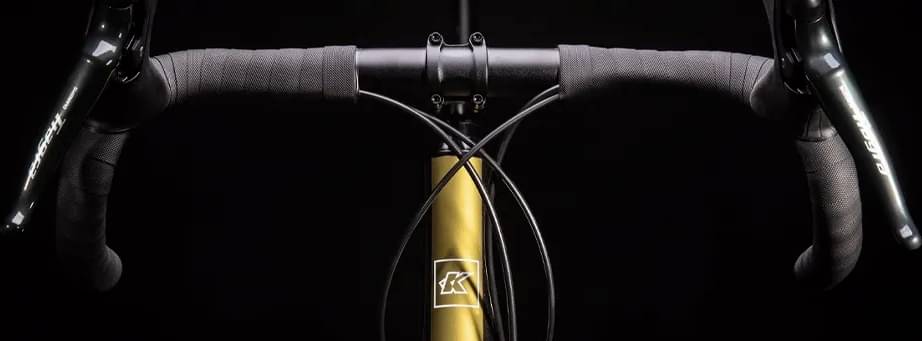

Handlebar
Kinesis Alloy 6061 S(51):42 cm M(54):44 cm L(57):44 cm XL(60):46 cm.
Headset
FSA Sealed Bearing No. 42 Integrated Road.
Seat
Saddle
Selle Italia X3 Black.
Seatpost
Kinesis Alloy 6061 27.2 mm x 350 mm.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.44 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 591 mm | 595 mm | 612 mm | 632 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 63 mm | 63 mm | 63 mm |
| Stack | 543 mm | 562 mm | 587 mm | 617 mm |
| Reach | 383 mm | 390 mm | 399 mm | 409 mm |
| Top Tube Length | 537 mm | 550 mm | 566 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 540 mm | 570 mm | 600 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 146 mm | 172 mm | 204 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1006 mm | 1010 mm | 1027 mm | 1047 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
R2 belongs to the Kinesis R2 model. Kinesis launched 5 bikes of this model so far. Take a sneak peek at all Kinesis R2 bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Kinesis R2 2023 has a starting price of 2044$. Kinesis R2 ROAD BIKE 2023 on the other hand is the most expensive at 2044$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 2044$. Comparing this to the average Endurance bike price, we see that the price is 14.77% smaller.
Endurance bikes average weight
Endurance bikes have an average weight of 8.56 kg (18.87 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Kinesis R2 it’s weighing 10.1 kg (22.27 lbs). At this weight, is much heavier than average. In conclusion, the average Endurance bike weighs 17.99% less than R2.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the R2 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The R2 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
